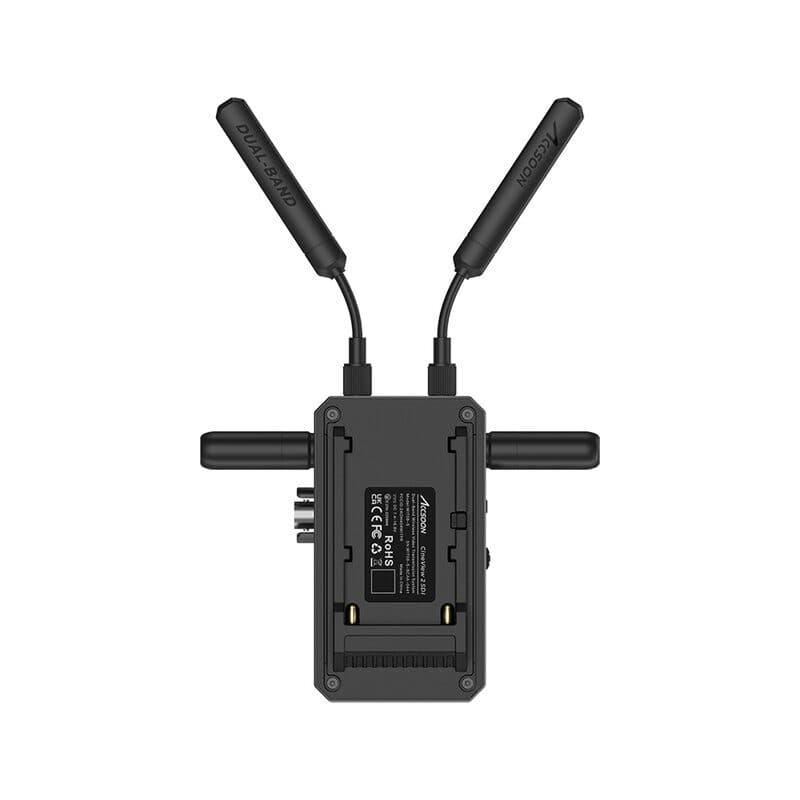

Wireless video transmitter CineView 2 SDI - Accsoon ACS-WIT08-S-TX

The CineView 2 SDI transmitter is a cutting-edge device designed to provide high-quality wireless video and audio transmission at 1080p 60 fps for clear and smooth images. It uses a patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments thanks to the newly designed antenna system. This transmitter is able to cover considerable distances, up to 450 m in a straight line, maintaining a latency of less than 50 ms for (almost) real-time transmission. It features HDMI and SDI inputs and an HDMI loop output that supports DCI 4K 60p, making it extremely versatile for a variety of production setups. It can also be used with up to four devices at the same time, including iOS and Android smartphones and tablets, allowing for a huge amount of operational flexibility. CineView 2 SDI is compact and lightweight, weighing only 210 g without antennas, which makes it easy to transport and install. It is designed for fanless operation for maximum silence, ideal for noise-sensitive recording environments. A convenient 1.47" color LCD screen makes it easy to monitor and configure the device. This transmitter is backwards compatible with the current CineView SE, HE and Quad models, allowing users to mix and match them to suit their needs. As for power, it supports multiple options, including NP-F batteries, DC power and USB-C, providing great flexibility in terms of use in the field. Technical specifications include support for multiple video formats, for both SDI and HDMI inputs, and a power consumption of less than 6 W, making it energy efficient.  The compact size, the ability to operate in a wide temperature range (from -10 to 40 °C) and the availability of a professional monitoring App for iOS and Android (upgradable), complete the picture of a highly performing and versatile device, ideal for professional video productions that require reliability and quality over long distances. N.B. Battery and power supply are not included.

Technical characteristics

• Video input: HDMI, 3G SDI
• Video output: HDMI loop-out
• SDI input formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A/B, 1080i @ 50 / 59.94 / 60i, 720p @ 50 fps / 59.94 / 60 fps
• HDMI input formats: 4096 x 2160 @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps, 3840 x 2160 @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps, 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps, 1080i @ 50 / 59.94 / 60i, 720p @ 50 / 59.94 / 60 fps
• HDMI loop-out format: identical to the HDMI/SDI video input
• Audio: 44.1 kHz / 48 kHz 16 / 20 / 24 bit
• Latency: < 50 ms (camera latency not included)
• Battery compatibility: NP-F550, NP-F750, NP-F970 (not included)
• USB-C power input: USB-C 5 V_DC 3 A
• DC port: 5.5 x 2.1 mm, center positive
• DC voltage: 7.4 - 16.8 V (power supply not included)
• Display: 1.47" full-color LCD screen
• Transmission power: 2.4 GHz - 20 dBm, 5 GHz - 20 dBm
• Transmission range: 450 m (no obstacles, no interference)
• Power consumption: < 6 W
• Operating environment temperature: -10 to 40 ℃
• Dimensions: 60 x 27.5 x 106.5 mm (without antennas)
• Weight: 210 g (without antennas)
