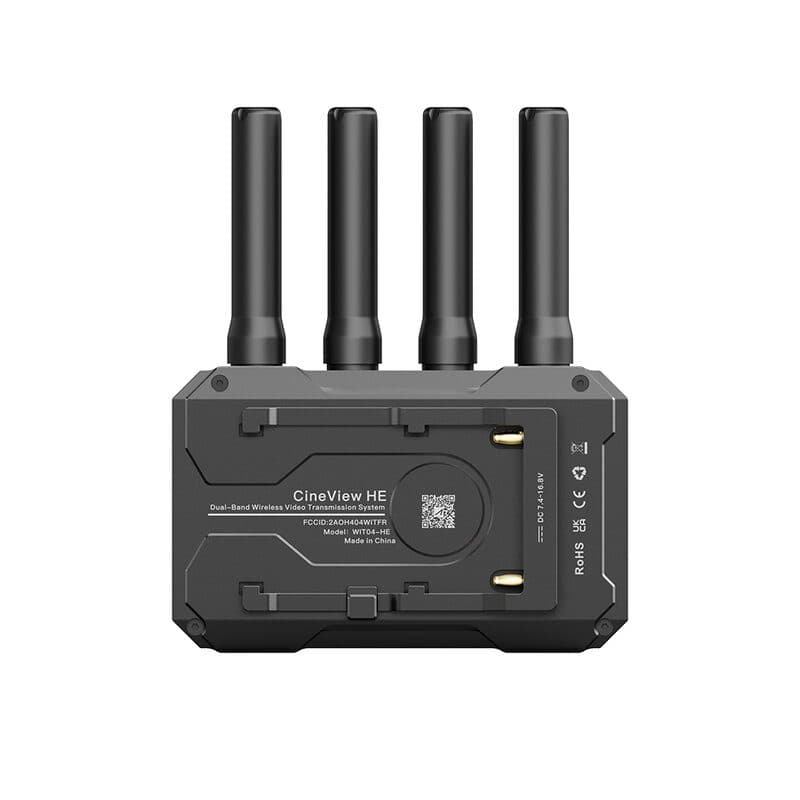

Wireless video transmitter CineView HE - Accsoon ACS-WIT04-HE-TX

The CineView HE transmitter is a cutting-edge device designed to provide high-quality wireless video and audio transmission at 1080p 60 fps for clear and smooth images. It is virtually identical in appearance to the CineView SE, and takes on most of its features and some of the CineView 2 SDI model. It uses a patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments thanks to the 4 antennas it is equipped with. This transmitter is capable of covering considerable distances, over 350 m as the line of sight, maintaining a latency of less than 60 ms for (almost) real-time transmission. It has an HDMI input, but - unlike the CineView SE - no SDI and an HDMI loop output, like the CineView 2 SDI, which can be connected to an external monitor. In addition, the HDMI loop output has been updated to have zero latency. It can also be used with up to four devices simultaneously (4 RX / 3 RX + 1 App / 2 RX + 2 App / 1 RX + 3 App / 4 App), including iOS and Android smartphones and tablets, allowing for great operational flexibility. CineView SE is compact and lightweight, weighing just 200 g without antennas thanks to a solid aerospace-grade aluminum body. It is designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A practical 1.3" color OLED screen makes monitoring and configuring the device easy. As for power, it supports several options, including NP-F batteries, DC power and USB-C, offering great flexibility in terms of use in the field. Technical specifications include support for various HDMI video formats and a typical power consumption of 4.5 W, making it energy efficient. The compact size, the ability to operate in a wide temperature range (-10 to 40 °C) and the availability of a professional monitoring App for iOS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a highly performing and versatile device, ideal for professional video productions that require reliability and quality. N.B. Battery and power supply are not included.

Technical characteristics

• Video input: HDMI
• HDMI input formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• HDMI loop our output formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• Audio: 44.1 kHz / 48 kHz 16 / 24 bit
• Latency: < 60 ms (camera latency not included)
• USB-C power input: USB-C 5 V_DC 3 A
• DC port: 5.5 x 2.1 mm, center positive
• DC voltage: 7.4 - 16.8 V (power supply not included)
• Display: 1.3" OLED
• Transmission power: 17 - 20 dBm
• Transmission range: 350 m (no obstacles, no interference)
• Power consumption: 4.5 W (typical)
• Operating environment temperature: -10 to 40 ℃
• Dimensions: 105 x 66 x 32 mm (without antennas)
• Weight: 200 g (without antennas)
