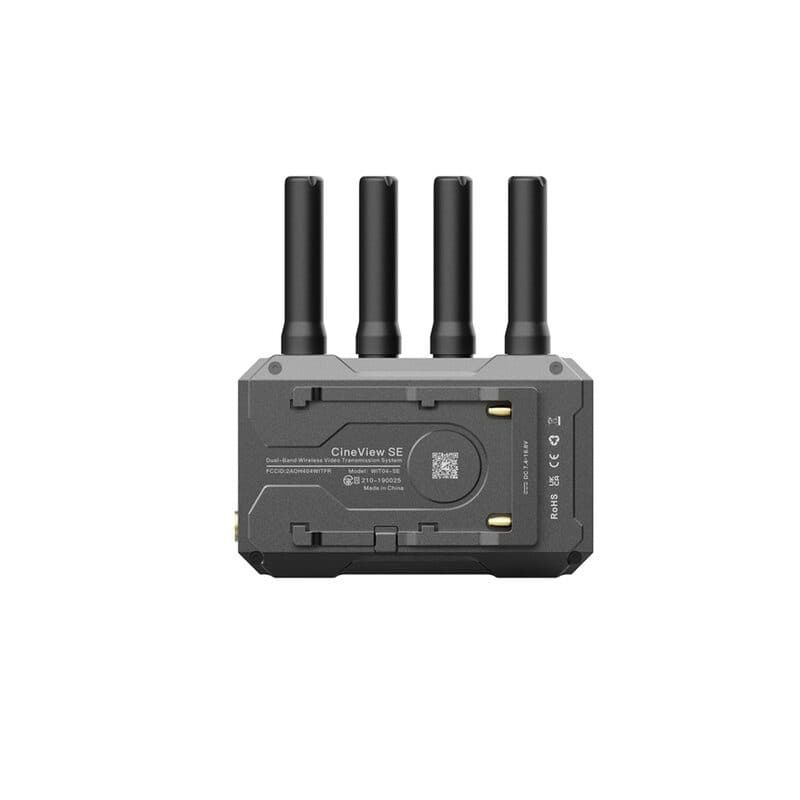

CineView SE wireless video receiver - Accsoon ACS-WIT04-SE-RX

The CineView SE receiver is a cutting edge device designed to provide high quality wireless video and audio reception at 1080p 60 fps for clear and smooth images. It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments thanks to the 4 antennas it is equipped with. It features HDMI and SDI outputs. CineView SE is compact and lightweight, weighing only 210 g without antennas thanks to a solid aerospace-grade aluminum body. It is designed for fanless operation for maximum silence, ideal for noise-sensitive recording environments. A practical 1.3" color OLED screen makes monitoring and configuring the device easy. As for power, it supports several options, including NP-F batteries, DC power and USB-C, offering great flexibility in terms of use in the field. Technical specifications include support for various video formats, both for SDI and HDMI outputs, and a typical power consumption of 3.5 W, making it energy efficient. The compact size, the ability to operate in a wide temperature range (from -10 to 40 °C) and the availability of a professional monitoring App for iOS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a highly performing and versatile device, ideal for professional video productions that require reliability and quality. N.B. Battery and power supply are not included.

Technical characteristics

• Video ouput: HDMI, SDI
• SDI output formats: 1080p @ 24 / 25 / 30 / 50 / 60 fps Level A/B
• HDMI ouput formats: 1080p @ 24 / 25 / 30 / 50 / 60 fps
• Audio: 44.1 kHz / 48 kHz 16 / 24 bit
• Latency: < 50 ms (camera latency not included)
• USB-C power input: USB-C 5 V_DC 3 A
• DC port: 5.5 x 2.1 mm, center positive
• DC voltage: 7.4 - 16.8 V (power supply not included)
• Display: 1.3" OLED
• Transmission range: 350 m (no obstacles, no interference)
• Power consumption: 3.5 W (typical)
• Operating environment temperature: -10 to 40 ℃
• Dimensions: 105 x 66 x 32 mm (without antennas)
• Weight: 210 g (without antennas)
