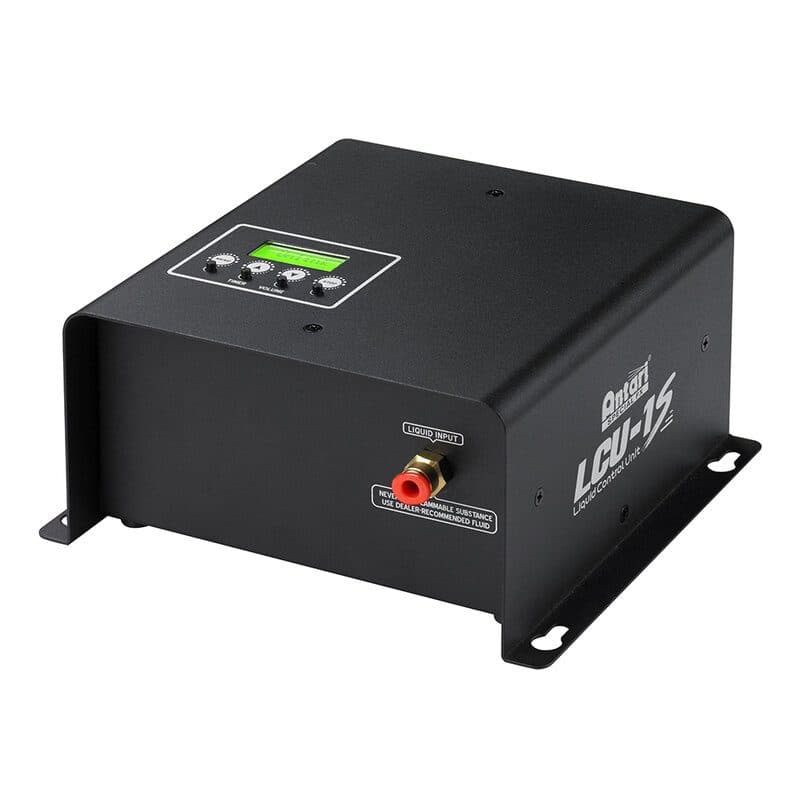

Smart fluid control unit with LCD and DMX - Antari ANT-LCU-1SE

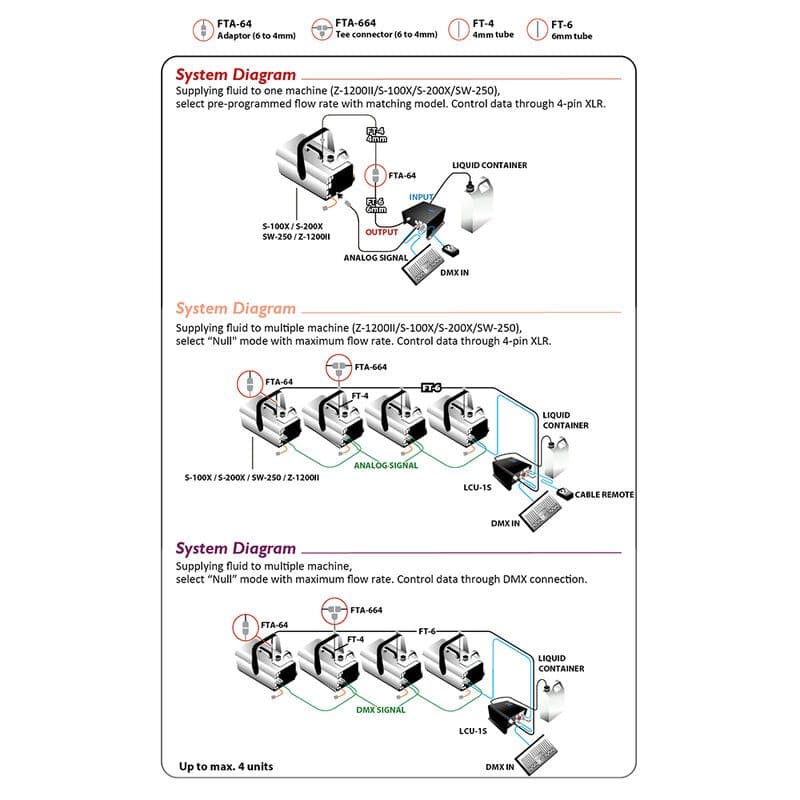

Antari LCU-1S is an intelligent liquid control unit with an LCD panel that allows users to easily read and set parameters. It is pre-programmed for use with the Z-1200II, S-100X, S-200X and SW-250, with a regulated flow rate to supply liquid to one unit at a time. A “Null” option offers versatility for use with any model, running the pump at 100% capacity and allowing up to four units to be supplied at once. The LCU-1S can supply liquid up to a distance of 35 meters or a height of 12 meters and is designed to meet most remote liquid supply applications. The nominal power is 40 W and consumption is 400 mL/min. It is compatible with Antari fluids and can be controlled manually, by timer or by DMX 512 using one DMX channel. Main features Can supply 4 units at the same time (max.) DMX control Supply fluid 35 m horizontal and 12 m vertical at maximum

Technical characteristics

Rated voltage	220 - 240 VAC 50/60 Hz 0.5 A
Rated power	40 W
Fluid consumption	400 mL/min (100% output)
Ambient temp. range	5 to 40 ℃
Control	manual, timer, DMX 512
DMX channels	1 channel
Connection	IEC (power), XLR 3-pin (DMX), XLR 4-pin (remote)
Optional accessories	Z-8 remote control, SC-2 remote control
Dimensions (L x W x H)	20.3 x 17.9 x 9.6 cm
Weight	3.3 kg
