Professional liquid supply DMX system - Antari ANT-LCU-2SE

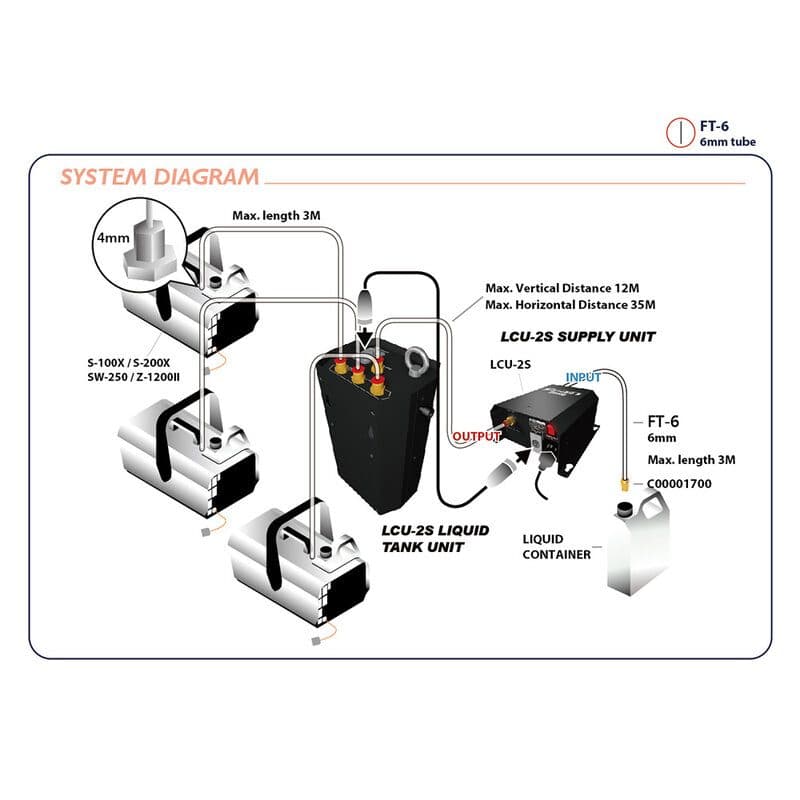

The LCU-2SE is a professional liquid supply system designed for fog machines and other special effects. This automated unit allows for precise and reliable continuous supply of liquids (such as fog or smoke fluids), ideal for fixed installations or long-lasting events. The compact and robust device is compatible with various atmospheric effects machines. It is designed to reduce manual intervention, ensuring a constant flow of liquid and improving operational efficiency during shows, live events, or theatrical installations. Main features DMX Control Maximum flow: 35 m horizontal and 12 m vertical

Technical characteristics

Rated voltage	220 - 240 VAC 50/60 Hz 0.5 A
Rated power	55 W
Fluid tank capacity	0.8 L
Ambient temp range	5 - 40 ℃
Control	auto

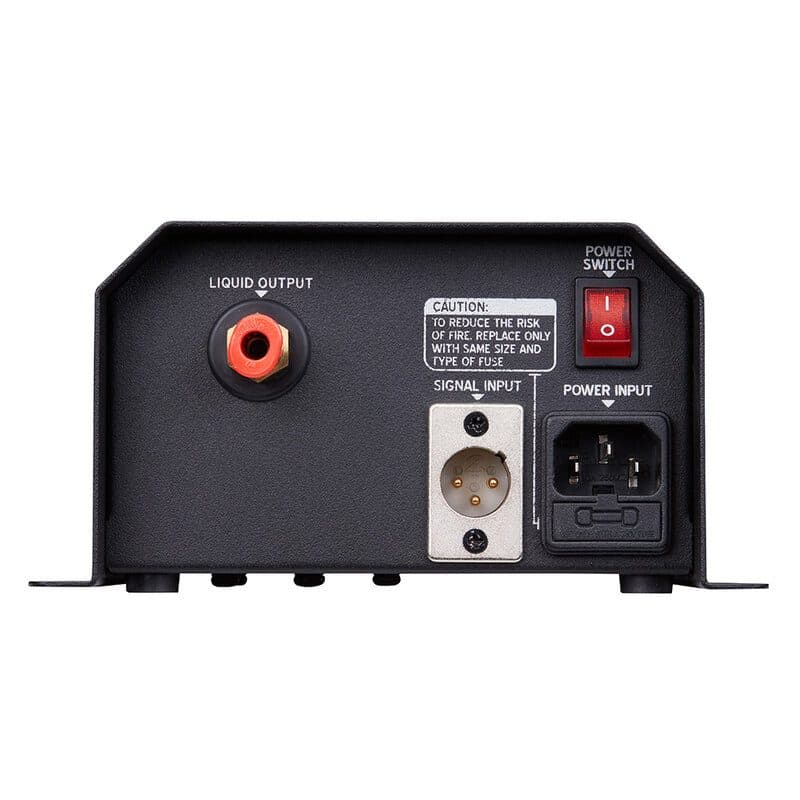

Connection	IEC (power), XLR 3-pin (data)
Included accessories	XLR 3-pin data cable FT-6 12 m 6 × 4 mm tube FT-4 10 m 4 × 2.5 mm tube FTA-44 adapter (4 to 4 mm) × 3 FTA-64 adapter (6 to 4 mm) × 3 FLF-6 fluid filter
Dimensions	supply unit: 17.9 × 16.7 × 8.4 cm tank unit: 15.8 × 10.3 × 31.2 cm
Weight	supply unit: 2 kg tank unit: 1.8 kg
