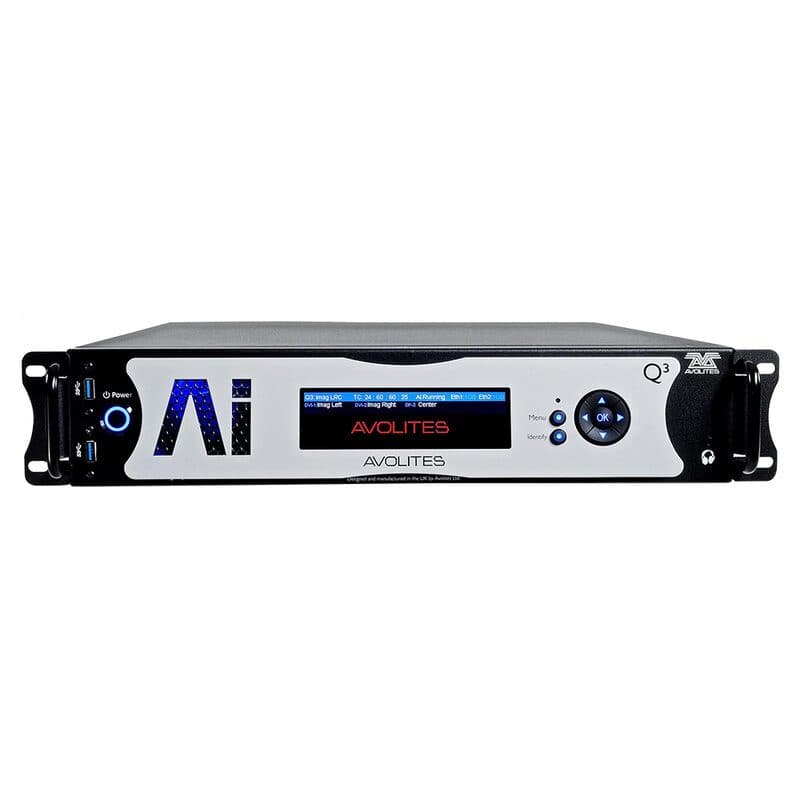

Ai Q3 Core 4K HD NDI Notch media server - AVOLITES AVO-31-31-0301

The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution to power live events, installs and anywhere else that live video manipulation is required. Main features 1 x 4k and 2 x HD outputs, plus a dedicated GUI output Hardware EDID on all outputs Front panel screen for configuring outputs Node-based programming for flexibility with Salvation Send or recieve video over IP with NDI® by NewTek 3D projection mapping Supports Notch (licence required) Easily set-up projector blending with AutoBlend AiM media transcoder Synergy with Avolites Titan

Technical characteristics

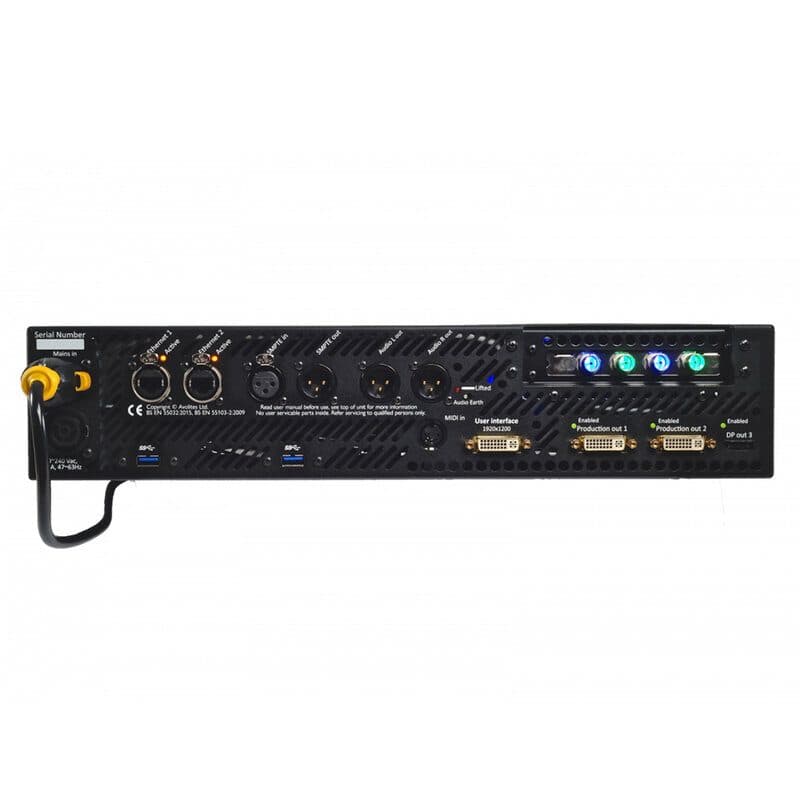

Connectivity

• Production outputs: 1 x 4k & 2 x HD HDMI 2.0 outputs at 60 fps
• SMPTE Time Code XLR: IN / THRU
• MIDI: 1 x DIN 5 MIDI input
• GUI outputs: HDMI 1920 x 1200
• Supported protocols: 1 x 1 Gigabit LAN
• Data / perphierals: 4 x USB 3.0 Type-A
• Audio: audio out L&R balanced XLR
• Network capacity: 2 x 1 GbE
• Genlock: optional
• Capture cards: up to 4 x 3G-SDI OR 2 x HDMI

Hardware specification

• CPU: Intel Core i5
• EDID management: hardware EDID managed, HDMI 2.0 outputs
• Power consumption: 275 W, 2.8 - 4 A (110 - 240 V_AC) (max.), Thermal data: 933 BTU/h
• Tolerances: operating temperature range: 0 - 40 °C, max. humidity: 95% relative humidity, non-condensing
• GPU: AMD Radeon ProWX 7100
• Operating system: Windows 10 IoT Enterprise

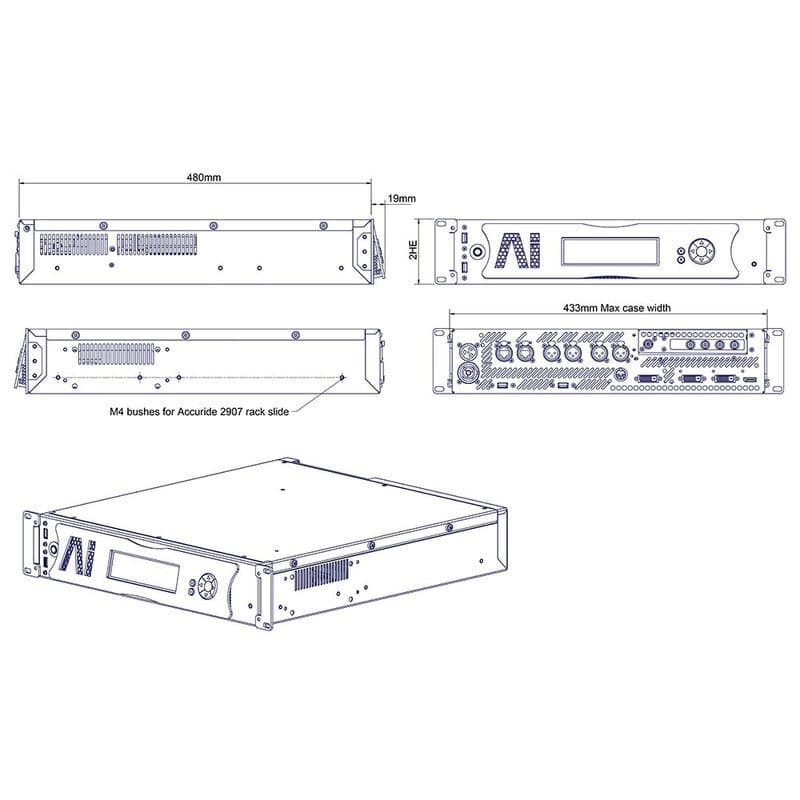

• Mount system: 19” 2U x 48,6 cm depth
• Storage: 1TB NVMe

Physical specification

• Unit dimensions: 49 x 52 x 8.8 cm (including rack ears)
• Unit weight: 11 kg
