Diamond 7 D7-330 lighting console - 30 faders 3 touchscreen 14" - AVOLITES AVO-30-01-7203

Diamond D7-330 is the latest addition to the renowned Diamond series of lighting consoles produced by Avolites. This creative console, which is placed just below the Diamond 9 in the hierarchy of Avolites products designed for visual designers and which incorporates many of their technical and design solutions, has 30 faders and 3 × 14" touch displays. The control surface is well designed, flexible and extremely functional; this careful study of every detail allows light designers to create, program and control their lighting setups with ease and immediacy. Buttons caps, faders caps, encoder knobs, encoder wheels and level wheel are made exclusively for this console. Let's see the main features of the control surface: 3 × 14" capacitive touch main screens, 850 nits, 1920 × 1200 pixels, with adjustable brightness 1 × 4.3" capacitive touch screen, 850 nits, 800 × 480 pixels for macro and workspace, with adjustable brightness 30 touch-sensitive motorized faders, with fader cap Dual, motorized, touch-sensitive master cue list faders with 9 control buttons RGB fader indicator 30 ultra-high resolution touch-sensitive playback encoders with push function RGB encoder indicator 120 C&K playback function buttons with positive haptics for timing designer key cap Independent paging for each playback section 10 backlit Macro / Executor keys and 10 soft Macro buttons with legend on the Macro screen Programming buttons all RGB backlit, short travel Cherry MX low profile switches 5 custom RGB backlit optical attribute encoders Dedicated level wheel and on-screen level indication Fully custom backlit QWERTY keyboard (in drawer) Supports an additional external touchscreen via Display Port at 1920 × 1080 pixels On a construction level we find an uncompromising construction: to begin with, the entire structure is made of aluminum to reduce weight. The clamshell design LCD panel allows for reduced transport size, with locking mechanism and screen panel articulation adjustable in 6° steps from – 90 to 155° from vertical. All screens are flush mounted. There is also a comfortable arm rest. The console supports animation-based generative pixel mapping, Quicksketch labeling for extreme customization, powerful multi-user networking with any other Titan console, advanced Cue Lists with support for macros, tracking, autoloads, time code and more. DMX capacity is synergy-ready and can be expanded with Titan Net processors to increase DMX channel capacity. N.B. Together with the console it is necessary to purchase also the relative case (code 09-01-7330).

Technical characteristics

Software

• Software platform: Avolites Titan
• Playback control: user defined using multiple faders, encoders and buttons
• DMX slots per device: 16,384
• DMX slots per system: 32,768
• Max. fixtures: 32,000
• Keyframe effect engine: custom effects with any number of keyframes
• Pixel mapping: video via synergy, pixel animations from Titan
• External control: WEB API, SMPTE, MIDI, DMX, sACN, GPIO
• Output format: ArtNet, sACN, DMX-512

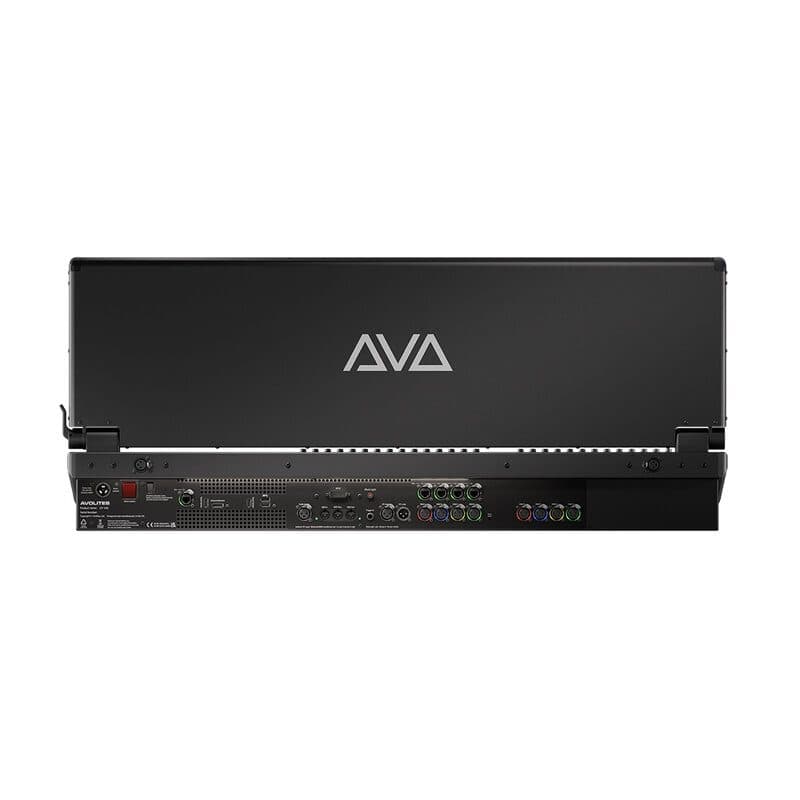

Connectivity

• DMX-512: 8 × Neutrik 5‑pin XLR, optically and galvanically isolated with halo assignement indicators
• Network: 4 × Neutrik etherCON on primary port (internally switched & managed), 1 × Neutrik etherCON secondary port
• Data / peripherals: 1 × USB 3.0 type‑C right hand side handle, 2 × USB 3.0 back panel, 2 × USB 2.0 assigned for external touch screens
• External display: 1 × DisplayPort up to 1920 × 1080
• SMPTE: 1 × 3‑pin LTC Time Code IN / loop OUT via 3‑pin XLR with transformer isolation
• Trigger inputs: GPIO 4 IN / 4 OUT, isolated and dry contacts on 15 pin D-sub connector, 1/4” jack for foot switch, audio input for 7 × band triggers via 3-pin XLR with transform isolation
• MIDI: IN, thru, OUT on 5‑pin DIN with signal and enable indicators, USB MIDI supported
• Rear work light: white LED strip with red button, 2 × 3‑pin XLR desk light sockets
• Mains power: Neutrik TRUE1

Hardware

• Processing: custom processing hardware and cooling to get the best processing performance and cooling with the addition of features including industry standard xlr connectors for networking and protected outlets
• Power consumption: max. 300 W
• Voltage: 110 - 240 V_AC 50/60 Hz
• Operation environment: operating temperature 0 to 40 °C, max. humidity 95% relative non‑condensing
• Heat output: max. 1024 BTU/h
• Internal UPS: up to 5 separate 4‑minute periods, fully software integrated
• Unit dimensions: 102 × 39.5 × 43 cm  (screens up); 102 × 36.5 × 17 cm (screens down)
• Weight: 25 kg
