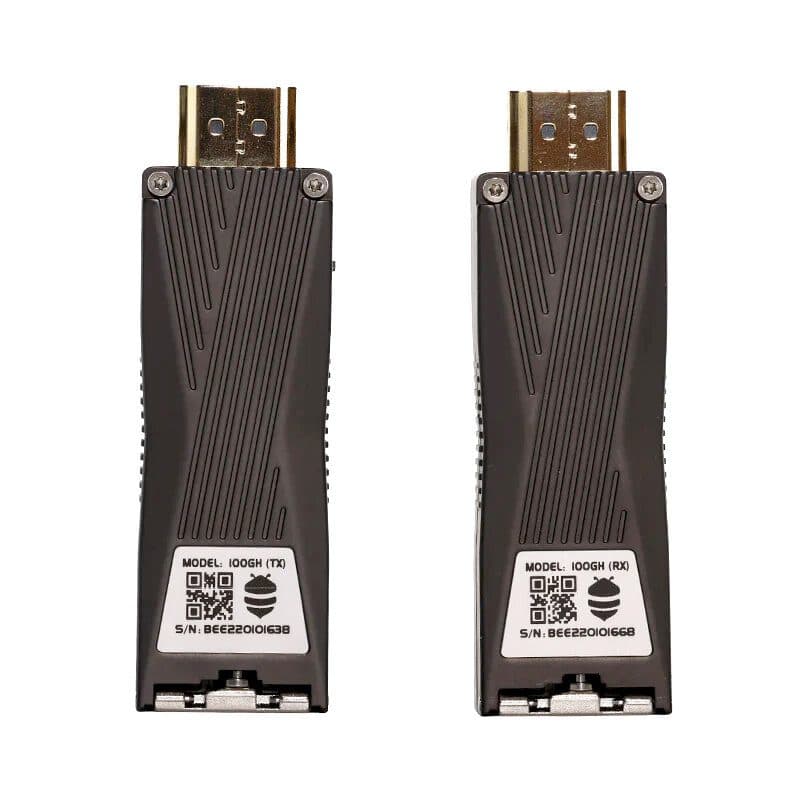

Kit extender HDMI fibre optic 4K@30 300m TX/RX - Beetek BEE-M1-100GH

HDMI Fiber Extender is a transmitter / receiver kit designed especially for the rental and event, show and presentation industry, taking into account various parameters. The device can support a resolution of up to 4K @ 30 4:4:4 at a transmission rate of 10.2 Gbps. It uses single-core single-mode OM3 fiber technology and can work up to a distance of 300 m. The device supports 40 dB input balancing at the transmitter to compensate for the loss generated by the cable from the source to the transmitter itself. EDID simulation is built-in, as is EDID learning support. The extender can transmit video without any perceptible delay and reconstruct the signal precisely, maintaining pixel integrity, so that every pixel of the original video is reproduced correctly on the target screen. The video signal is also transmitted without compression, thus maintaining the original quality. The device is carefully designed, employing a dustproof protective cover for the fiber interface.

Technical characteristics

• One core single mode HDMI 1.4 fiber expander
• Signal: HDMI 1.4
• Input connectors:

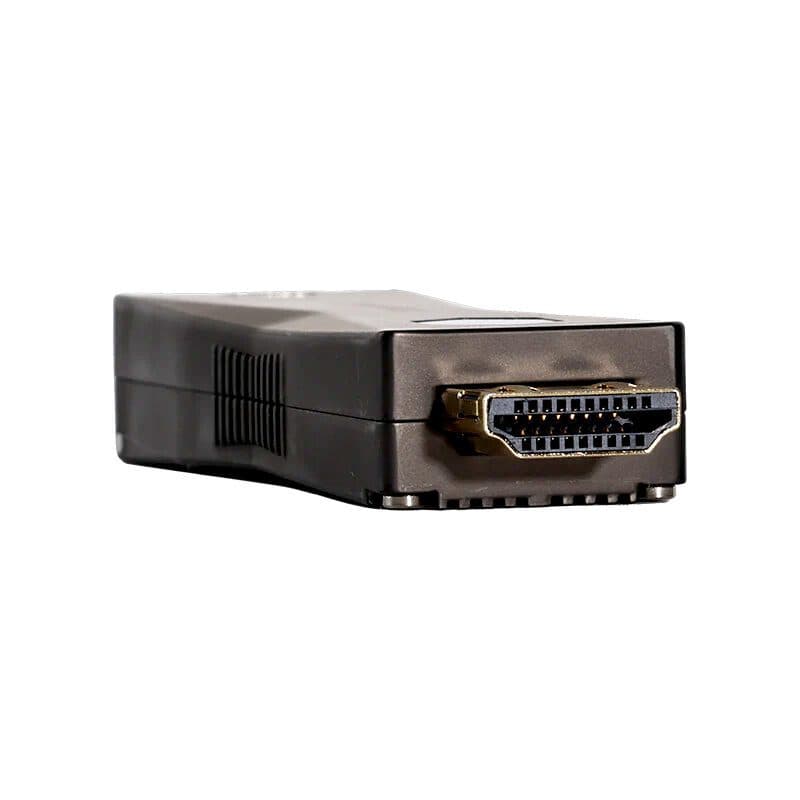

  • TX: male HDMI Type A connector with fastener protrusions
  • RX: single-core LC
• Output connector:
  • TX: single-core LC
  • RX: male HDMI Type A connector with fastener protrusions

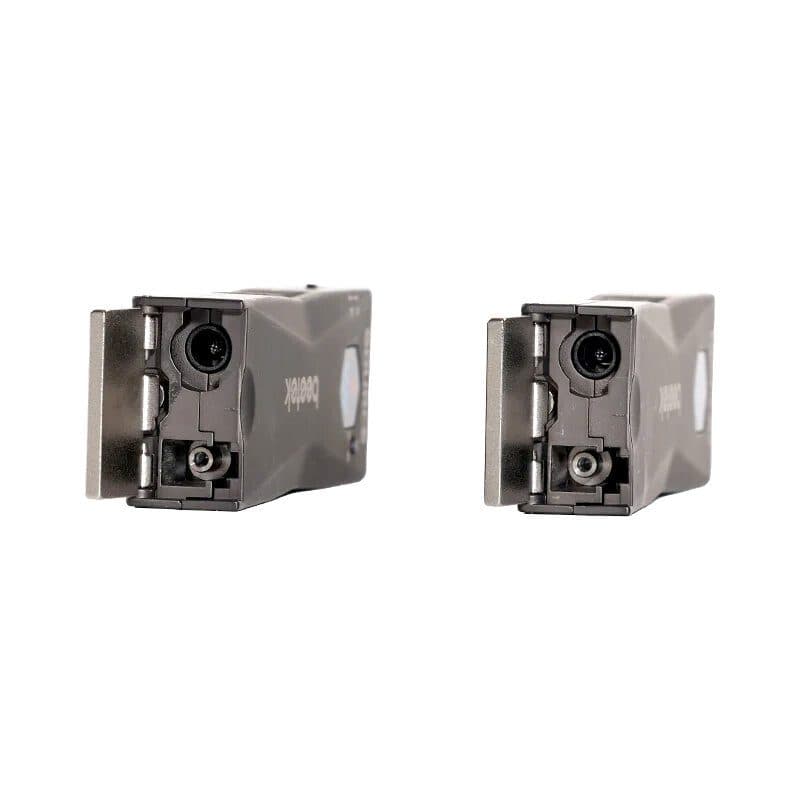

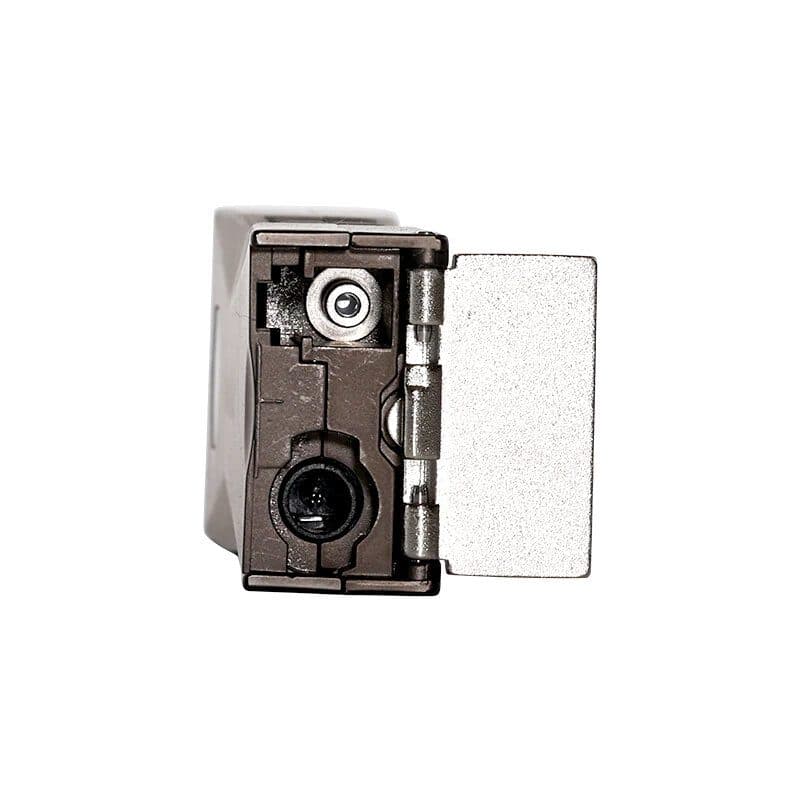

• Fiber interface dust prevention: yes
• Fiber type: single-mode G657.A1
• Indicator LED: signal, power, EDID 3-way indicator
• USB power: yes
• Power from connector (TX): yes
• Locking power connector: yes
• EDID switch (TX): learn button and mode dial
• EDID modes: pass-through, learn and internal
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: supports in EDID pass-through mode
• ARC: supports in EDID pass-through mode
• HDCP: supports in EDID pass-through mode
• XvYCC color space: yes
• Optical module: 1 x 12G single-mode optical module
• Technical characteristics: circuit-multiplexing SerDes technology
• Fiber module life: 100,000 hours
• Resolution: 3840 x 2160 @ 30 Hz
• Transmission distance: pass-through mode 300 m, learning mode 2000 m
• Clock bandwidth: 3 x 340 MHz
• Transmission speed: 10.2 Gbps
• Balancing chip: automatic equalization
• Reclocking: yes
• ESD protection: yes
• Hot plug: yes
• Delay: zero-frame
• Compression: none
• Sampling rate: bandwidth range 8 - 16 bit
• Sampling ratio: RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Power supply: 5 V_DC 1.0 A
• Ambient temp.: -20 to 70 °C
• Material: aluminum alloy mold
• Dimensions (TX/RX): 90 x 36 x 15 mm
• Package dimensions: 212 x 201 x 62 mm
• Weight: TX 120 g, RX 118 g
• Package weight: 0.54 kg
