SKU BEE-W400-100M-B
Price for 1 unit
€401.44
€329.05 + VAT

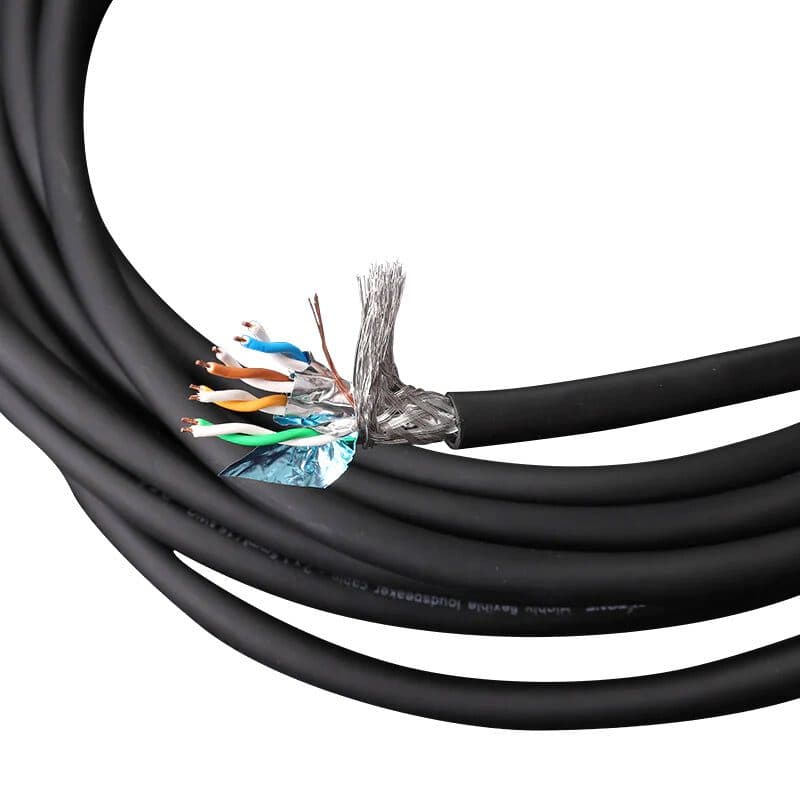

The Beetek BEE-W400-100M-B is a 100 m CAT6a S/FTP network cable developed for digital mixers, DMX lighting, HDBaseT extenders and LED systems. Its TPE outer jacket is designed to increase flexibility, tensile and wear resistance, and cable durability. The cable body contains 23 AWG 8-conductor oxygen-free copper. Shielding combines aluminium foil and an aluminium-magnesium braid, providing 100% coverage. The robust RJ45 etherCON connectors use 50 μm gold-plated pins. It is a ready-to-use cable for mixers and DMX lighting applications, with a 500 MHz transmission frequency and 10 Gbps transmission speed. Lengths from 20 m upwards can be wound on Beetek DF and PCD series cable reels; lengths from 5 m to 100 m are available.
| 2P | orange & white / orange |
|---|---|
| 3P | green & white / green |
| 4P | brown & white / brown |
| Aluminium foil | aluminum foil pair shielded |
| Braid material | 128 x 0.12 mm tinned copper braid shield |
| Cable direction | s |
| Cable lay length | ≦ 120 mm |
| Cable type | CAT6a SFTP |
| Conductor gauge | 23AWG |
| Conductor material | single strand oxygen free copper |
| Conductor resistance | ＜68.4 ohm/km at 20 ℃ |
| Conductor size | 0.26 ±0.008 mm x 8 |
| Connector type | RJ45 S/FTP |
| Core wire direction | s |
| Core wire lay length | ≤ 30 mm |
| Delay difference | ≤ 30 ns/100 m (1 - 125 MHz） |
| Environmental information | RoHS 2.0 compliant |
| Frequency | 500 MHz |
| Gold plate thickness | 50 µm |
| Ground wire | 7 x 0.16 mm multi-strand oxygen free copper (26 AWG） |
| Insulation color code | 1P: blue & white / blue |
| Insulation elongation | ≥ 300% |
| Insulation material | foam-skin PE |
| Insulation resistance | ＞5000 ohm at 20 ℃ |
| Insulation tensile | ≥16 Mpa |
| Jacket color | black |
| Jacket elongation | ≥ 100% |
| Jacket material | TPE |
| Jacket outer diameter | 8.0 ±0.20 mm |
| Jacket tensile |
| ≥ 12.5 Mpa |
| Latch tab | integrated break-resistant tab |
|---|
| Maximum capacitance unbalance | 330 pF/100 m |
|---|
| Maximum relative mutual coupling capacitance | 5.6 nF/100 m |
|---|
| Operating temperature | -20 to 80 ℃ |
|---|
| Outer jacket material | double-layer PVC |
|---|
| RJ45 connector | etherCON |
|---|
| Shielding rate | 100% |
|---|
| Structure | conductor + insulation + aluminum foil + ground wire + braid + jacket |
|---|
| Testing | PASS FLUKE |
|---|
| Withstand voltage | 1000 V DC /1 min, no breakdown |
|---|
