Cat6a S/FTP 20m shielded RJ45 DMX network cable - BEETEK BEE-W400-20M-A

Specially designed for digital mixers, DMX lighting, HDBaseT extenders and LED systems, this 20 m CAT6a S/FTP cable adopts an outer jacket made of unique TPE material to increase flexibility, tensile/wear resistance and durability. The cable body is made of 23 AWG 8-core oxygen-free copper (OFC). It uses braided aluminum foil shield and braided aluminum magnesium shield with 100% shielding ratio for superior performance. The RJ45 connector is designed to minimize latency during data transmission and adopts 50 μm gold-plated pins; it supports repeated plugging and unplugging. The single-piece connector with quick coupling plate can be quickly repaired withoutprofessional tools. The use of German standard cat 6A zinc alloy shell, anti-fall, provides greater protection. Main features Ready-to-use CAT6a S/FTP network cable designed for DMX mixers and lighting applications Double shielded with 8 conductors 500 MHz transmission frequency and 10 Gbps transmission speed Single-strand OFC (oxygen-free) copper with 8 conductors 23 AWG Stranded and braided shielding offer 100% shielding rate TPE jacket material for increased flexibility, tensile strength and cable durability RJ45 "crystal head" connector with 50 μm gold-plated pins One-piece connector with quick mating plate can be repaired quickly without professional tools Available in lengths from 5 to 100 m

Technical characteristics

• CAT6 S/FTP network cable (low-latency crystal head)
• Connector type: RJ45 S/FTP
• Connector size: 56.4 x 17.4 x 13.8 mm
• Cable type: CAT6a SFTP
• Environmental information: RoHS 2.0 compliant
• RJ45 connector: low-latency crystal head (with built-in quick-connect circuit board)
• Gold plate thickness: 50 µm
• Latch tab: integrated break-resistant tab

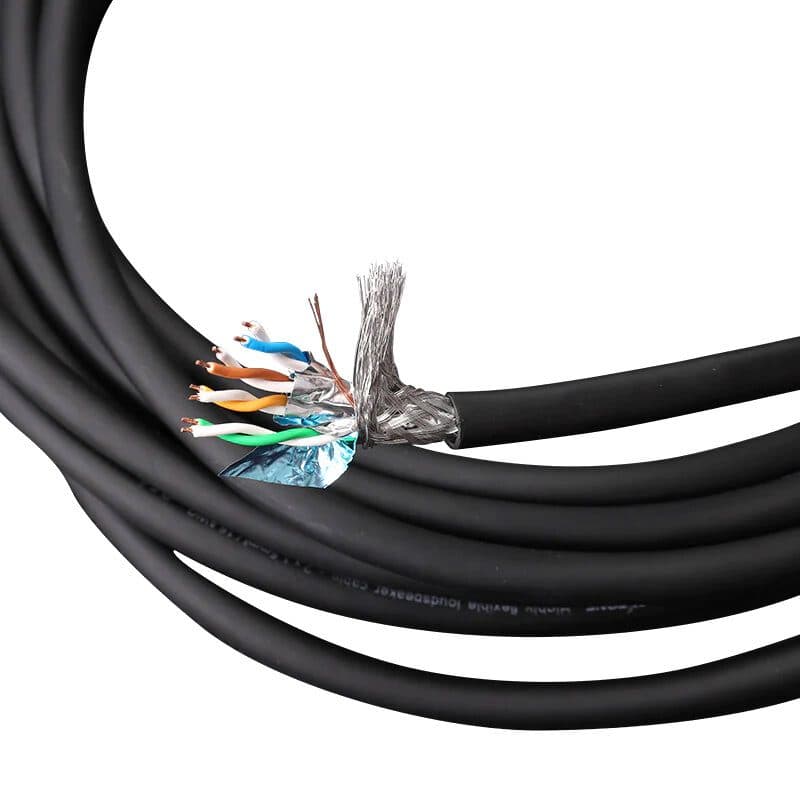

• Structure: conductor + insulation + aluminum foil + ground wire + braid + jacket
• Conductor gauge: 23AWG
• Conductor size: 0.26 ±0.008 mm x 8
• Conductor material: single strand oxygen free copper
• Insulation material: foam-skin PE
• Insulation color code:
  • 1P: blue & white / blue
  • 2P: orange & white / orange
  • 3P: green & white / green
  • 4P: brown & white / brown
• Core wire direction: s
• Core wire lay length: < 30 mm
• Cable direction: s
• Cable lay length: ≦ 120 mm
• Outer jacket material: double-layer PVC
• Aluminium foil: aluminum foil pair shielded
• Ground wire: 7 x 0.16 mm multi-strand oxygen free copper (26 AWG）
• Braid material: 128 x 0.12 mm tinned copper braid shield
• Shielding rate: 100%
• Jacket material: TPE
• Jacket outer diameter: 8.0 ±0.20 mm
• Jacket color: black
• Conductor resistance:＜68.4 ohm/km at 20 ℃
• Insulation resistance: ＞5000 ohm at 20 ℃
• Withstand voltage: 1000 V_DC/1 min, no breakdown
• Delay difference: ≤ 30 ns/100 m (1 - 125 MHz）
• Frequency: 500 MHz
• Testing: PASS FLUKE
• Insulation elongation: ≥ 300%
• Insulation tensile: ≥16 Mpa
• Jacket elongation: ≥ 100%
• Jacket tensile: ≥ 12.5 Mpa
• Maximum relative mutual coupling capacitance: 5.6 nF/100 m
• Maximum capacitance unbalance: 330 pF/100 m
• Operating temperature: -20 to 80 ℃
• Operating voltage: 60 V
