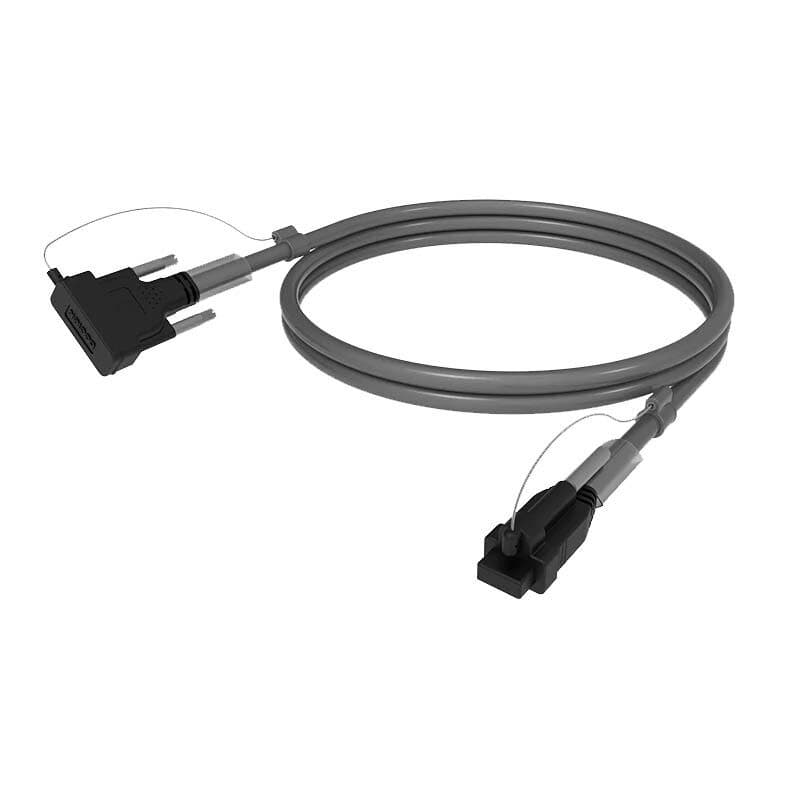

HDMI-DVI male cable E2 series rental 1,5 m - BEETEK BEE-H802M-1.5M

Beetek HDMI - DVI-M E2 cables are specifically designed for the rental and staging industry. They support resolutions up to 4K @ 60Hz with 18 Gbps transmission speed and feature a 5-layer shielding structure against interference, covering over 85% of the cable surface. This 1.5 m HDMI - DVI cable is made of 99.995% oxygen-free copper (OFC), tinned. The HDMI connector, shell and pins have been improved with an additional level of rigidity.  Main features Locking HDMI Screws E2 Special Series Supports resolutions up to 4K @ 60Hz 4:4:4 at a transmission rate of 18Gbps The HDMI cable features a 15μm gold-plated connector that withstands over 1000 insertions and removals and a stainless steel knurled joint screw with a unique removable dust cap Add your company information label using the included transparent heat-shrink tubes

Technical characteristics

• Lenght: 1.5 m
• Signal type: HDMI 2.0

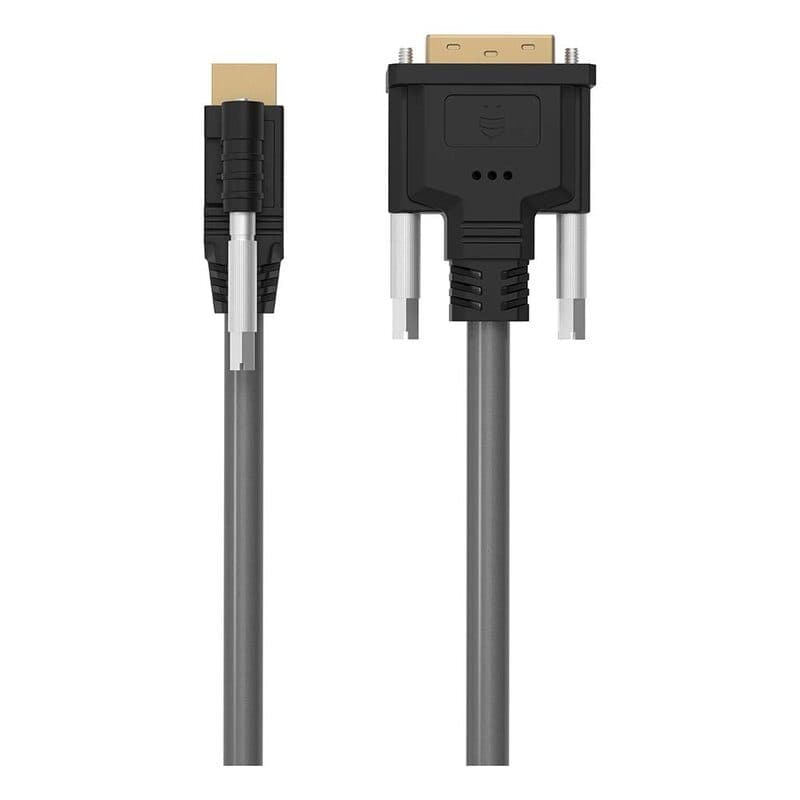

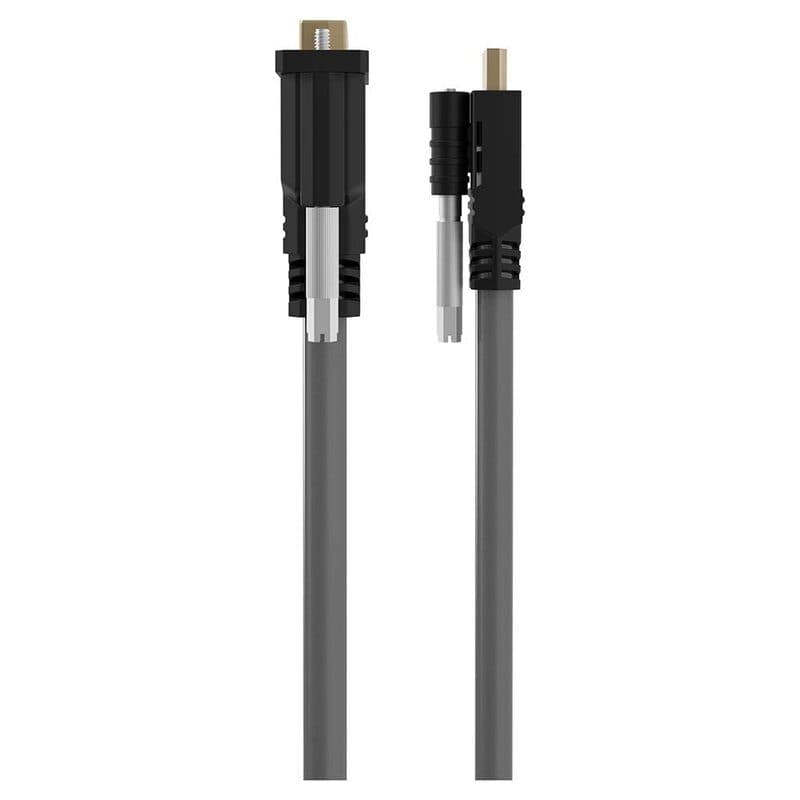

• Connector type: HDMI Type A male - DVI Male
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: shell 3 μm, pins 15 μm
• Connector dimensions: HDMI 54 x 20.8 x 20.6 mm; DVI 59.2 x 40 x 17 mm
• Connector structure (HDMI): plug plate + inner mold + tinplate + copper foil + shell + screw + protective cap
• Connector structure (DVI): soldered plug + inner mold + copper foil + tinplate + shell + screw + protective cap
• Internal mold: transparent PE material
• Copper foil: double-sided conductive copper foil
• Tinplate: HDMI upper and lower assembled tinplate, DVI three-piece tinplate
• Shell: 45P PVC injection molded shell (UL, RoHS)
• Lockable screw: stainless steel locking screw
• Protective cap: detachable cap with cord leash
• Components: conductor + copper foil + mylar + braid + jacket
• Conductor material: stranded tinned copper
• Conductor diameter: 28AWG
• Braid material: 16 x 10 braided copper wire
• Shielding rate: 7 mesh 85% shielding rate
• Jacket material: 90P PVC (UL, RoHS)
• Cable diameter: 8.5 mm
• Cable color: fluorescent gray
• Cable meter marking: waterproof yellow text
• Velcro: p-shaped velcro strap 20 x 200 mm
• Custom label: heat-shrink transparent tubing on both ends for custom labels
• EDID: yes
• DDC channel: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• Compatibility: backward compatible with HDMI and DVI-SL
• Supported resolutions: 3840 x 2160 @ 60 Hz / 1920 x 1080 @ 120 Hz
• Clock bandwidth: 600 MHz × 3
• Transmission rate: 18 Gbps
• Plug and play: yes
• Delay: zero
• Deep color: yes
• Color sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 120°
• Operating temperature: -20 to 80 ℃
