DisplayPort HDMI 2.5m UHD 4K active adapter cable - BEETEK BEE-PH904-2.5M

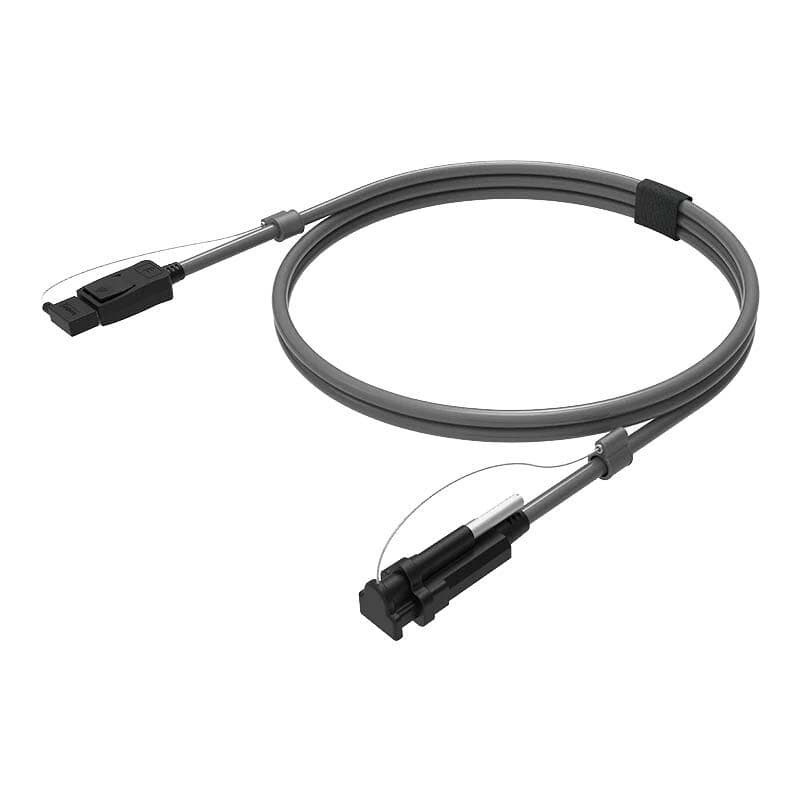

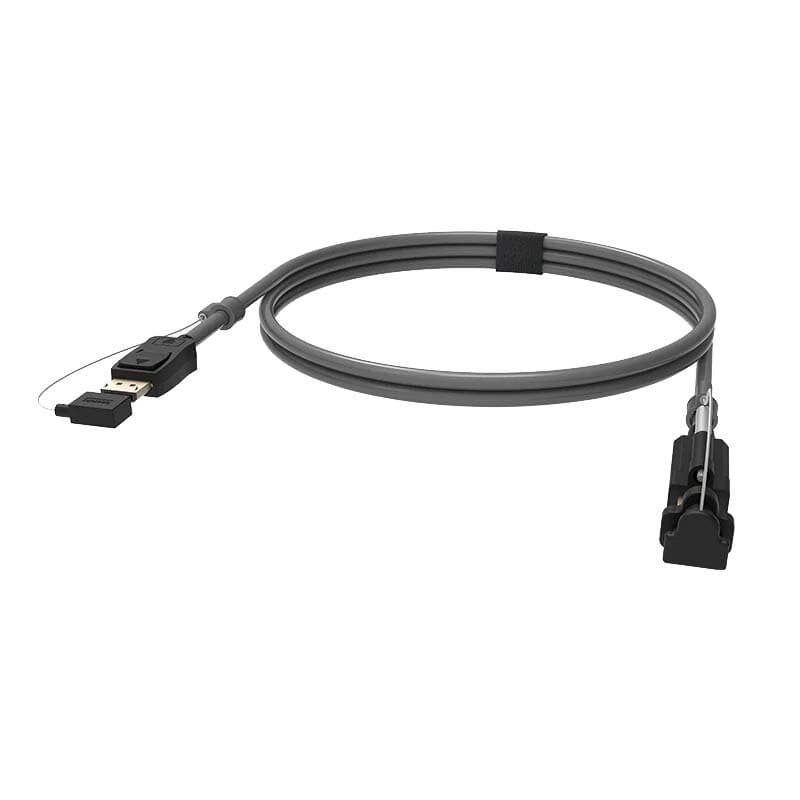

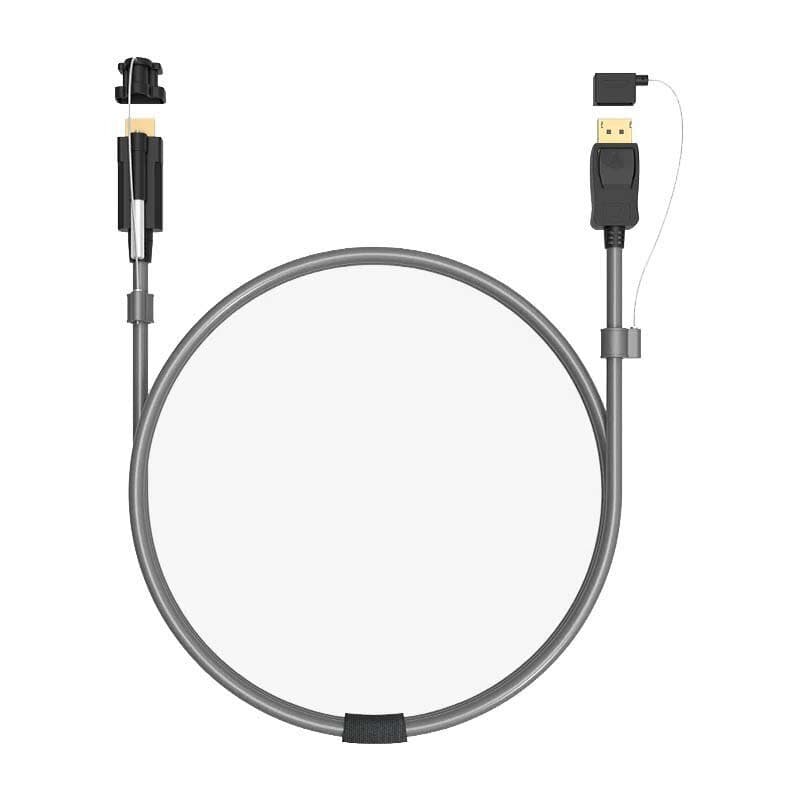

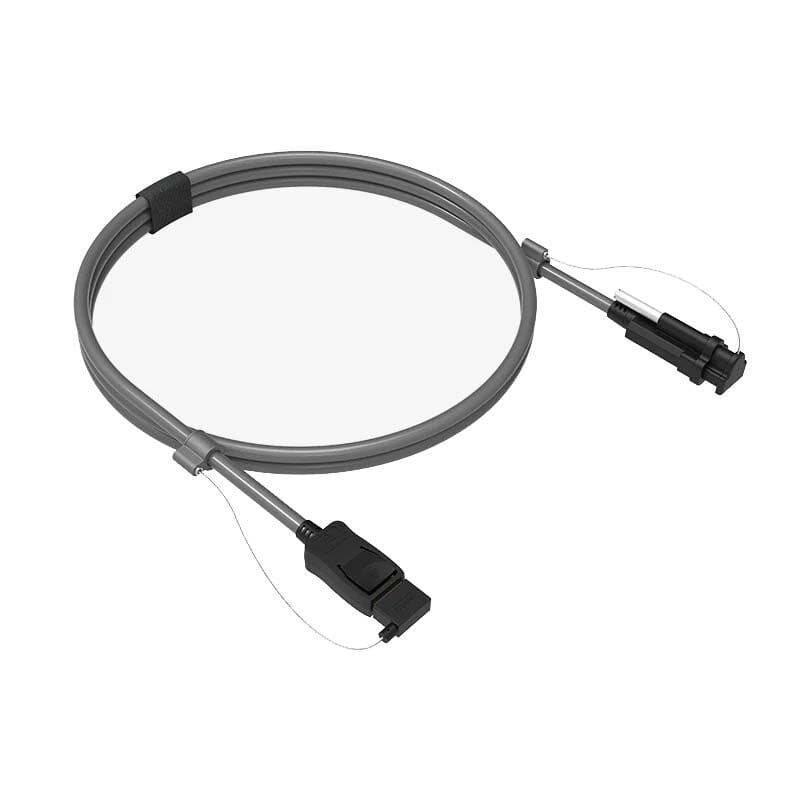

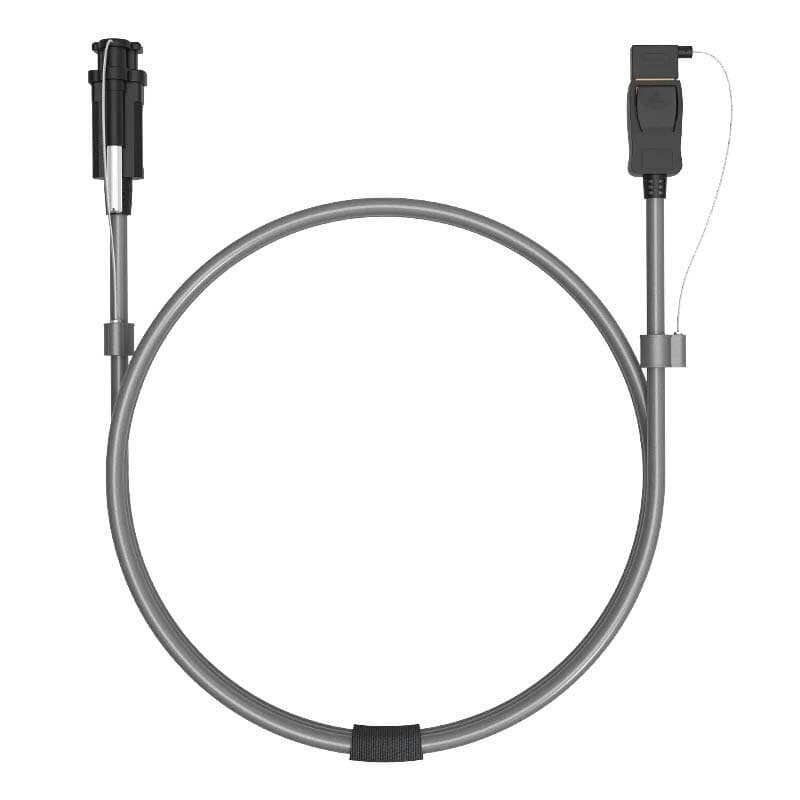

Beetek DP-HDMI adapter cable converts the signal from DisplayPort to HDMI and supports resolutions up to UHD, EDID pass-through, CEC and audio. The DP connector supports DP 1.2a technology, while the HDMI-A connector is made of zinc alloy with built-in active conversion chip and 15 kV anti-static chip. It has an outer diameter of 5.8 ± 0.2 mm, conductor gauge 30-32 AWG, braided shield coverage ≥ 85 %. Available in two lengths: 2.5 and 5 meters. This cable is suitable for rental, live events and business applications. Main features Supports resolutions of 3840 x 2160 @ 60Hz or 4096 x 2160 @ 60Hz, RGB 4:4:4 Converts signal from DisplayPort to HDMI Supports EDID pass-through, CEC, audio output The cable jacket is made of wear-resistant composite PVC. Both ends are equipped with removable dust caps The HDMI connector is lockable with stainless steel thumbscrew to make the connection system more stable and secure

Technical characteristics

• Lenght: 2.5 m
• Signal type: DP 1.2a, HDMI 2.0
• Conversion method: active
• Input connector type: DP male
• Output connector type: HDMI Type A male
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: shell 3 μm, pins 15 μm
• Connector dimensions: DP 59.2 x 22 x 13.5 mm, HDMI 67.4 x 20.8 x 20.3 mm
• Connector structure (DP): plug plate + inner mold + shielding case + copper foil + SR outer mold + shell + protective cap
• Connector structure (HDMI): active PCB board + SR outer mold + shell + screw + protective cap
• Internal mold (DP): transparent PE material
• Shielding case (DP): upper and lower assembled metal case
• Copper foil (DP): double-sided conductive copper foil
• SR outer mold: 45P black PVC injection mold
• Shell: DP 45P PVC injection molded shell (UL, RoHS), HDMI zinc alloy upper and lower assembled shell

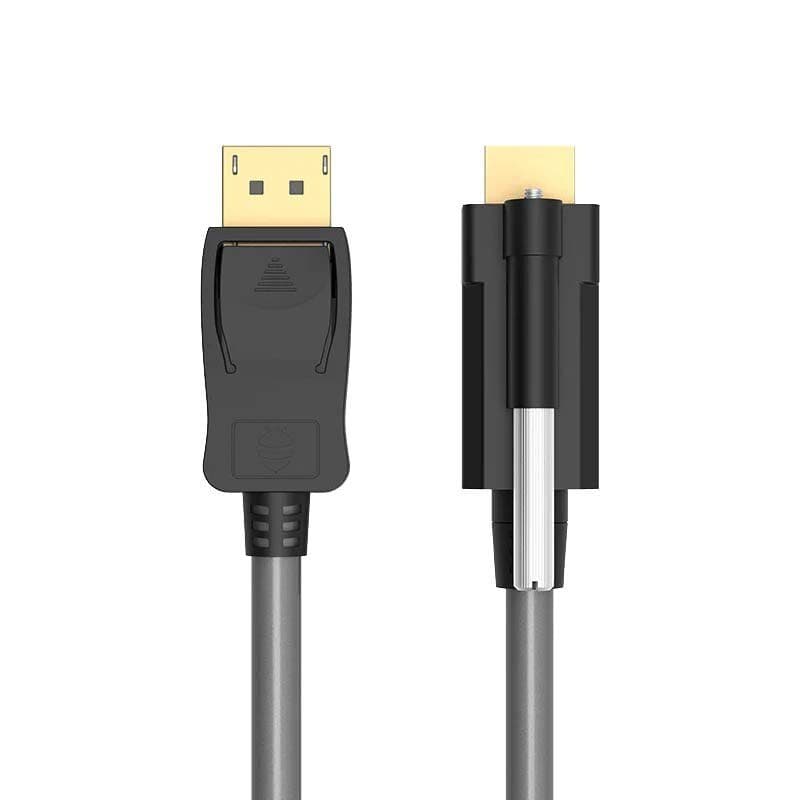

• Locking connector (HDMI): stainless steel screw
• Locking connector (DP): standard DP press-style locking mechanism

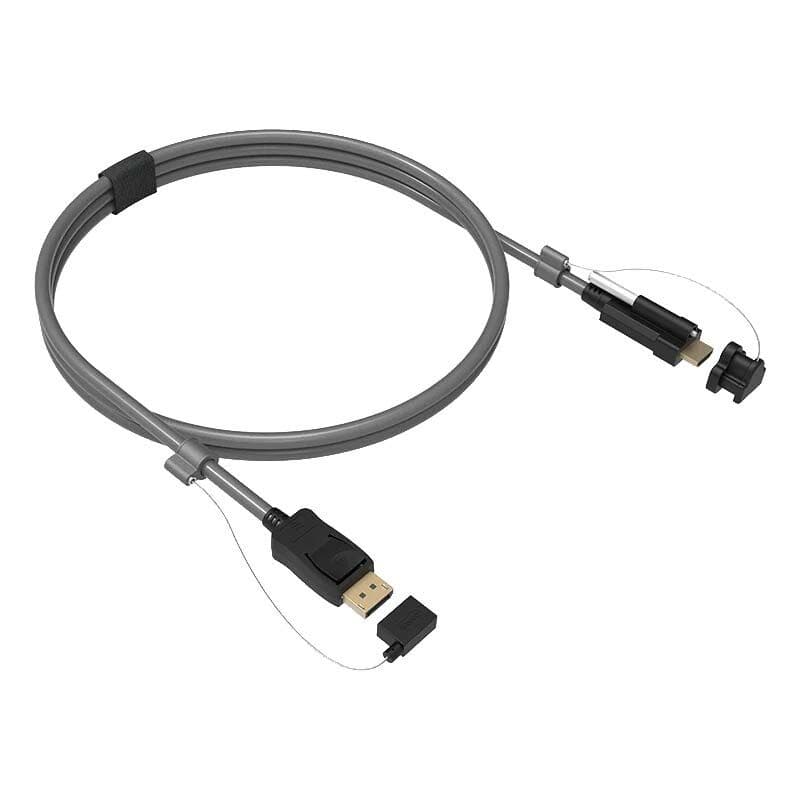

• Protective cap: detachable cap with cord leash
• Components: conductor + copper foil + mylar + braid + jacket
• Conductor material: stranded tinned copper
• Conductor diameter: 28AWG
• Braid material: 16 x 10 braided copper wire
• Shielding rate: 7 mesh 85% shielding rate
• Jacket material: 90P PVC (UL, RoHS)
• Cable diameter: 7.4 mm
• Cable color: fluorescent gray
• Cable meter marking: waterproof yellow text
• Velcro: p-shaped velcro strap: 20 x 200 mm
• EDID: yes
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• ESD: yes
• Compatibility: backward compatible with DP 1.1 / 1.0 version
• Supported resolutions: 3840 x 2160 @ 60 Hz
• Clock bandwidth: 600 MHz × 3
• Transmission rate: 18 Gbps
• Plug and play: yes
• Delay: zero
• Compression: none
• Deep color: yes
• Color sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 120°
• Operating temperature: -30 to 75 ℃
