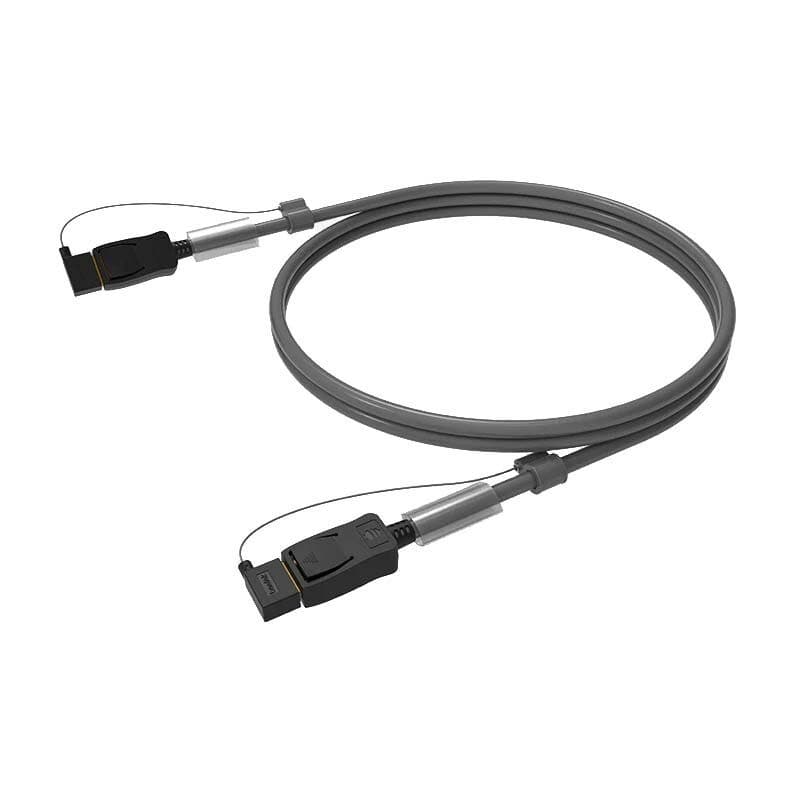

DisplayPort cable 2m 4K E2 series 21.6Gbps - BEETEK BEE-P902-2M

Beetek DP 1.2 E2 cables are specifically designed for the rental and staging industry. They support resolutions up to 4K @ 60 Hz with a transmission rate of 21.6 Gpbs and feature a 5-layer shielding structure against interference, covering over 85% of the cable surface. This 2 m DisplayPort cable is made of 99.995% oxygen-free copper (OFC), tinned. The DisplayPort connector, shell and pins have been improved with an additional level of rigidity. Main features Special E2 Series Supports resolutions up to 4K @ 60Hz 4:4:4 at a transmission rate of 21.6 Gbps The Display port cable has 15 μm gold platted connector that withstands over 1000 insertions and removals and it has stainless steel knurling joint screw with unique detachable belt chain dust proof cap Available in 2.5 and 5 m lengths Add your company info label using the provided transparent heat-shrink tubes Comes with Velcro wraps for easy cable management

Technical characteristics

• Lenght: 2 m
• Signal type: DP 1.2
• Connector type: DP Male - DP Male
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: shell 3 μm, pins 15 μm
• Connector dimensions: 59 x 22 x 13.5 mm
• Connector structure: plug plate + inner mold + shielding shell + copper foil + SR outer mold + shell + protective cap
• Internal mold: transparent PE material
• Copper foil: double-sided conductive copper foil
• SR outer mold: 45P black PVC injection mold (UL, RoHS)
• Shell: ABS upper and lower assembled shell
• Locking connector: standard DP press-style locking mechanism
• Protective cap: detachable cap with cord leash
• Components: conductor + copper foil + mylar + braid + jacket
• Conductor material: stranded tinned copper
• Conductor diameter: 28AWG
• Braid material: 16 x 10 braided copper wire
• Shielding rate: 7 mesh 85% shielding rate
• Jacket material: 90P PVC (UL, RoHS)
• Cable diameter: 7.3 mm
• Cable color: fluorescent gray
• Cable meter marking: waterproof yellow text
• Velcro: p-shaped velcro strap 20 x 200 mm
• Custom label: heat-shrink transparent tubing on both ends for custom labels
• EDID: yes
• DDC channel: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• AUX channel: yes
• High-speed Ethernet: supports extended high-speed Ethernet
• Extended USB: supports extended USB 2.0 / USB 3.1
• Extended audio: supports extended 32 channels of audio
• BT.2020 color space: yes
• Compatibility: backward compatible with DP 1.1a / 1.1 version
• Supported resolutions: 3840 x 2160 @ 60 Hz
• Clock bandwidth: 540 MHz × 3
• Transmission rate: 21.6 Gbps
• Plug & Play: yes
• Delay: zero
• Deep color: yes
• Color sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 120°
• Operating temperature: -20 to 80 ℃
