15-band stereo graphic equalizer 1U rack - JB SYSTEMS BEG-B08214

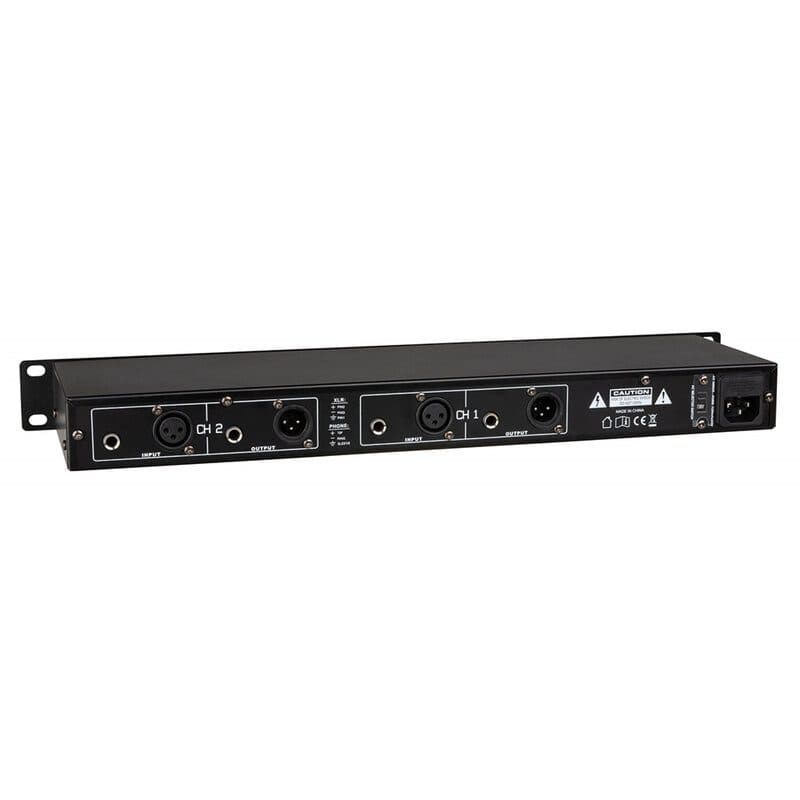

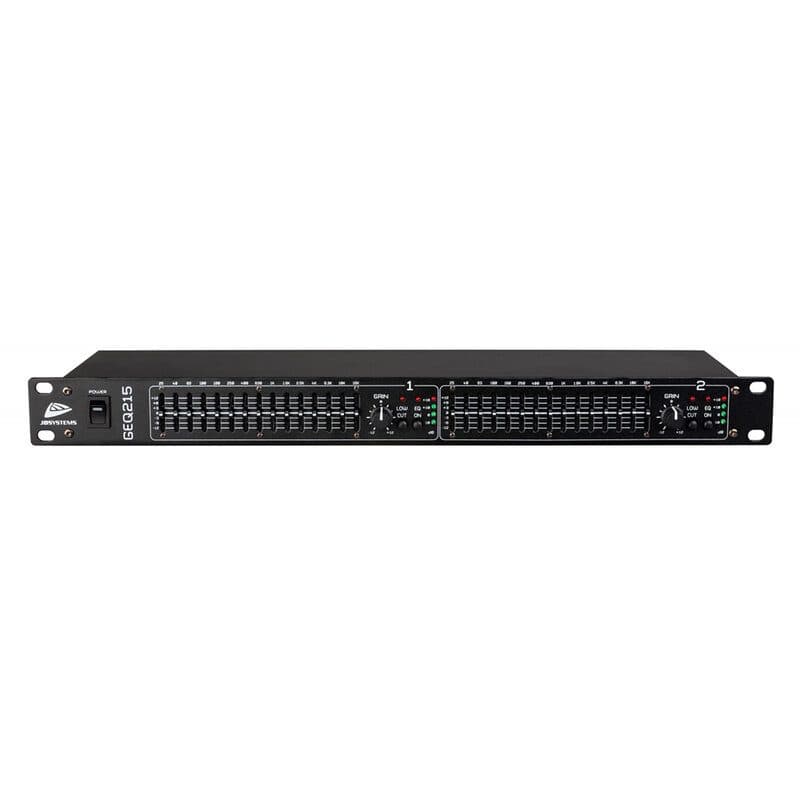

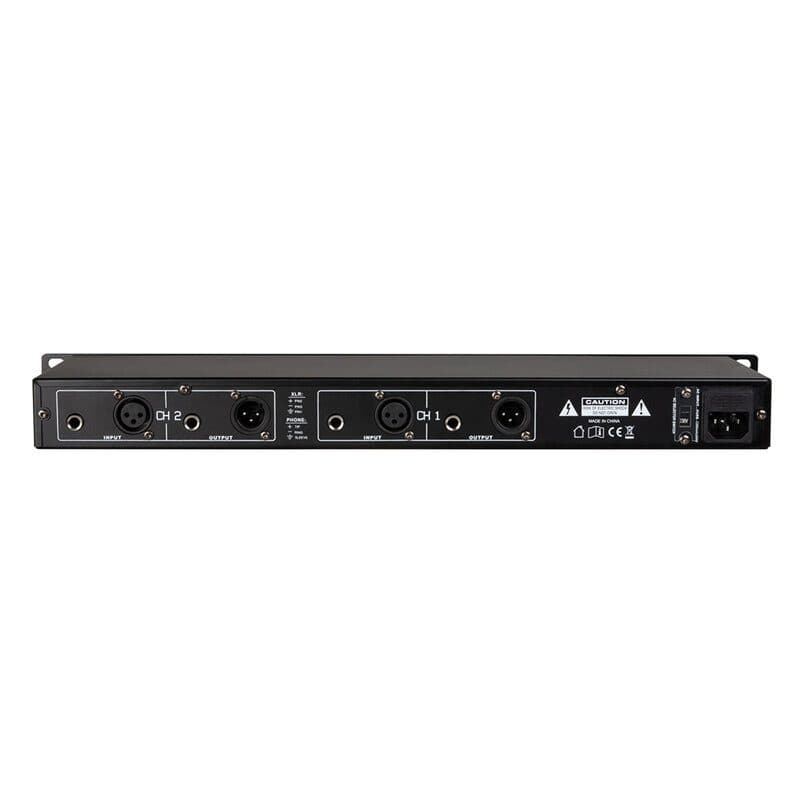

The JB Systems BEG-B08214 is an analogue stereo graphic equaliser providing 15 bands per channel with ±12 dB adjustment. Its controls include a bypass switch, a 50 Hz high-pass filter (LOW CUT), separate gain adjustment for each channel and a 4-LED output-level indicator. Balanced inputs and outputs are available through 3-pin XLR connectors and 6.3 mm jacks. The unit follows the standard 19" rack format and requires 1U.

Specifications:

• Function: graphic equaliser
• Frequency response: 20–20,000 Hz
• Central frequencies per channel: 25, 40, 63, 100, 160, 250, 400, 630, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 10 kHz, 16 kHz
• Signal-to-noise ratio: >95 dB
• Power input: 100–240 V AC, 50/60 Hz
• Energy Label: no
• Display: no
• Fixation: 19" rack mountable
• Rack height: 1U
• IP rating: indoor
• Inputs: 3-pin XLR, jack, IEC
• Outputs: 3-pin XLR, jack
• Colour: black
• Dimensions (W × H × D): 48 × 4.5 × 15 cm
• Weight: 2.06 kg
