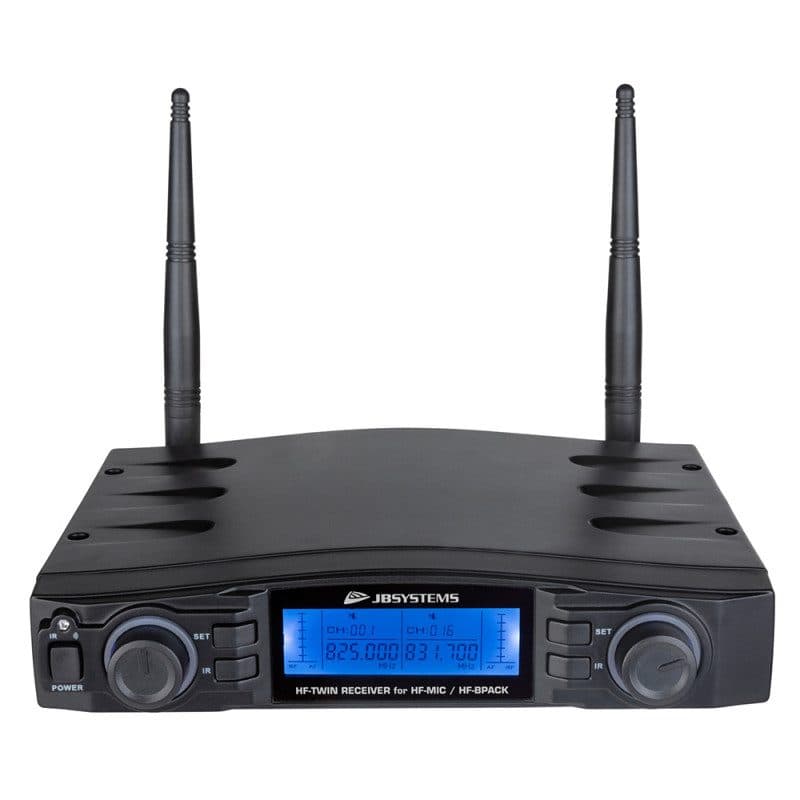

Dual PLL/UHF wireless receiver 16 channels 2 XLR - JB Systems BEG-B08307

The JB Systems BEG-B08307 is a dual PLL/UHF wireless microphone receiver designed to work with the HF-MIC handheld microphone (order code B08308) and/or the HF-BPACK bodypack with lavalier microphone (order code B08309). Allowed combinations are 2 x HF-MIC, 2 x HF-BPACK, or 1 x HF-MIC + 1 x HF-BPACK. An LCD display supports easy setup, with configuration via IR transmission. Both the bodypack and handheld microphone can run on rechargeable batteries. Sixteen selectable PLL frequencies are available: receiver 1 (left) channels 1 to 8, receiver 2 (right) channels 9 to 16. Outputs include two separate balanced XLR feeds and one 6.3 mm jack carrying a mixed signal from both channels.

Specifications:

• Type: dual PLL/UHF wireless microphone receiver
• Compatible handheld: HF-MIC (order code B08308)
• Compatible bodypack and lavalier: HF-BPACK (order code B08309)
• Microphone combinations: 2 x HF-MIC; 2 x HF-BPACK; 1 x HF-MIC + 1 x HF-BPACK
• Display: LCD
• Setup: IR transmission
• Transmitter power: rechargeable batteries (bodypack and handheld)
• Selectable PLL frequencies: 16
• Receiver 1 (left): channels 1 - 8
• Receiver 2 (right): channels 9 - 16
• Separate balanced XLR outputs: 2
• 6.3 mm jack output: 1 (mixed signal from both channels)
• Dimensions (cm): 20.5 x 18 x 4.5
• Weight (kg): 0.468
• Power input: AC 100 - 240 V, 50/60 Hz
• Energy label: no
• Power consumption (W): 10
• Colour: black
• Microphone direction: no
• Power connection input: IEC
• Connection outputs: 3-pin XLR, jack
