16-zone microphone console for PA matrix - AUDIOPHONY PA BEG-H10978

16-zone microphone desk designed for use with an audio matrix in PA sound reinforcement systems.

Technical characteristics

• 1 x microphone input on XLR in front

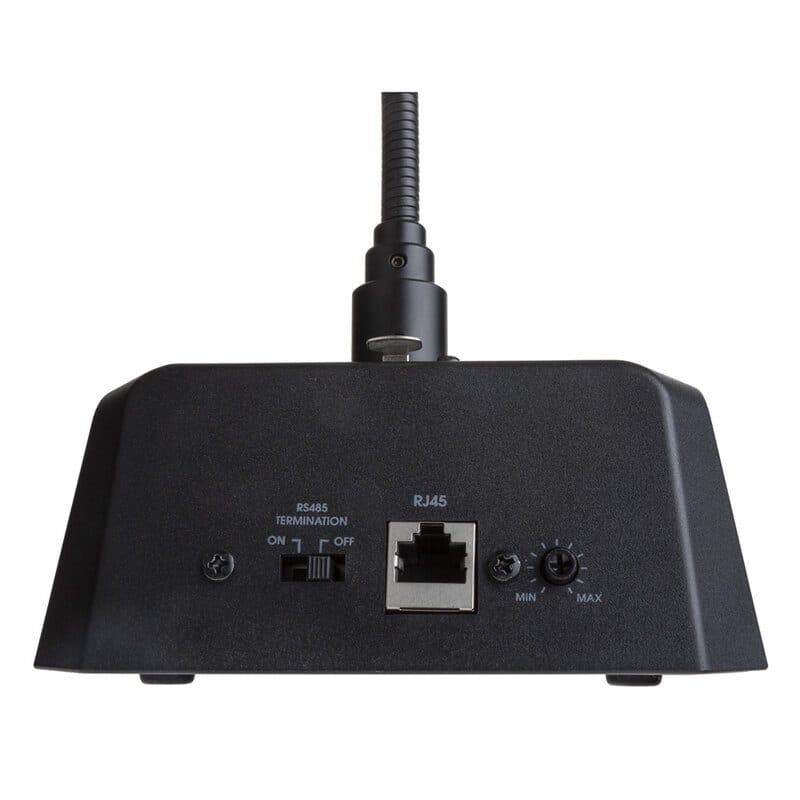

• 1 x RJ45 output at the back

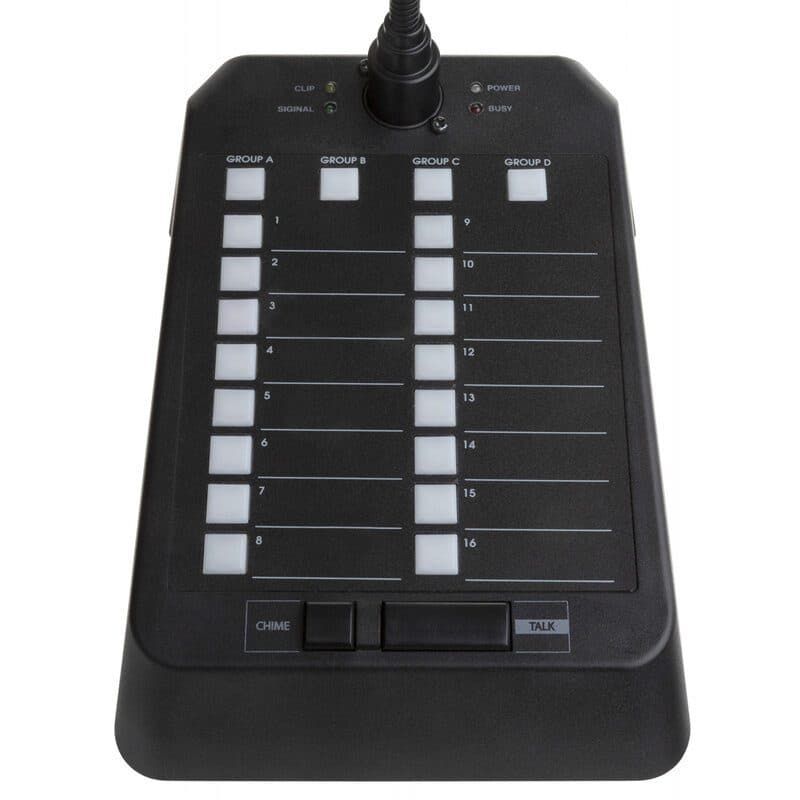

• Talk button on the front panel to engage the microphone
• Chime button on front panel to start the chime
• Volume control (microphone and chime) on the back
• Switch lock / unlock to block the selection of zones LED level display
• Power supply via RJ45 cable from the PREZONE88
• Input sensitivity: -60 dB ±3 dB / 600 ohms balanced
• T.H.D.: less than 0.1%
• Frequency response: 45 Hz - 15 kHz
• SNR: less than 90 dB
• Output level: 0 dB / 600 ohms
• Dimensions: 14 x 6 x 20.5 cm
• Weight: 0.9 kg
•
