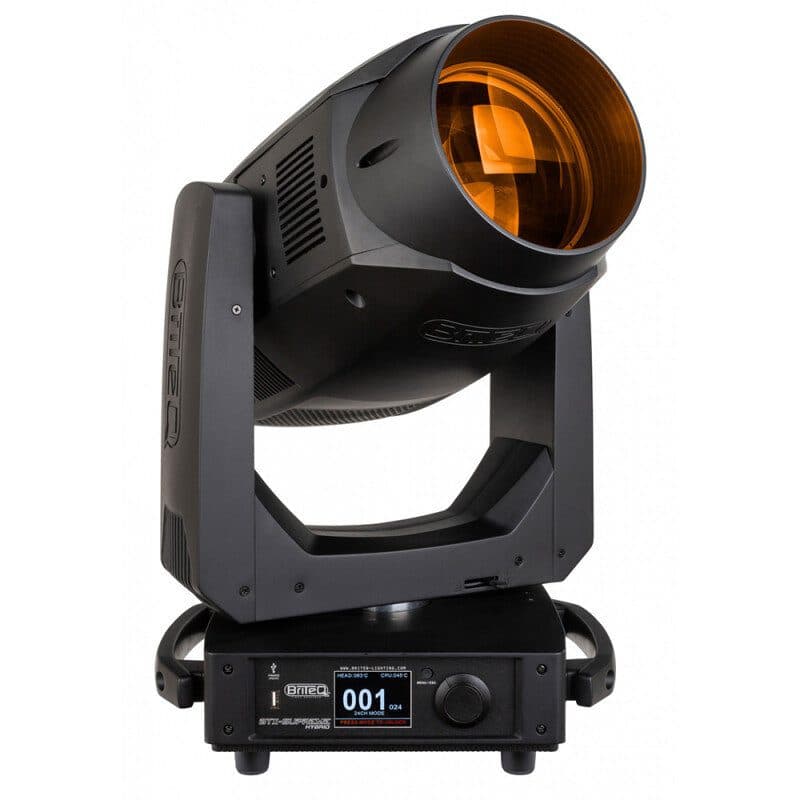

Hybrid moving head Beam Spot Wash 471W BTX-SUPREME - Briteq BEG-B05536

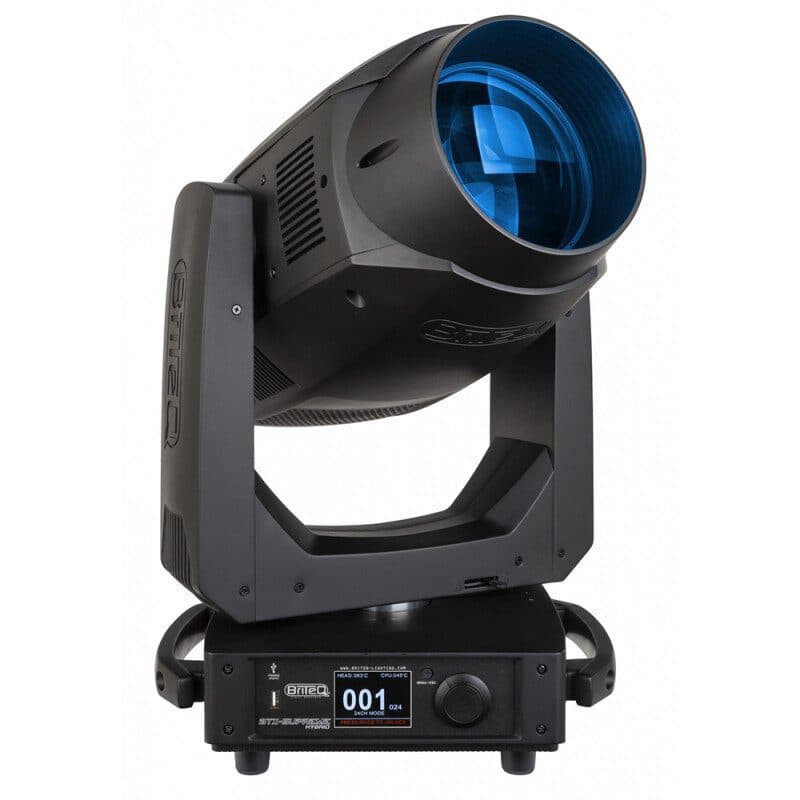

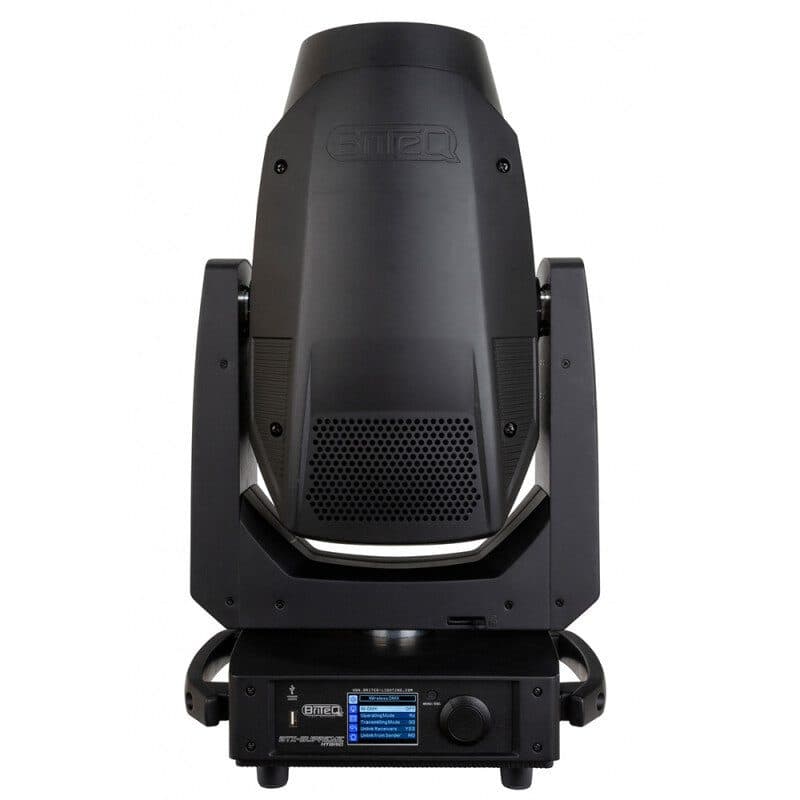

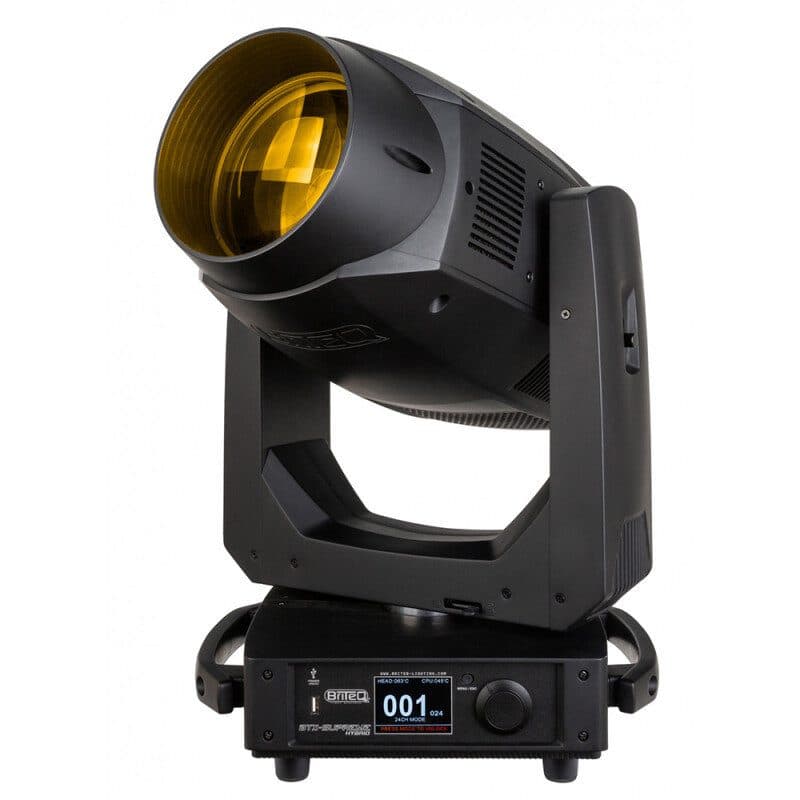

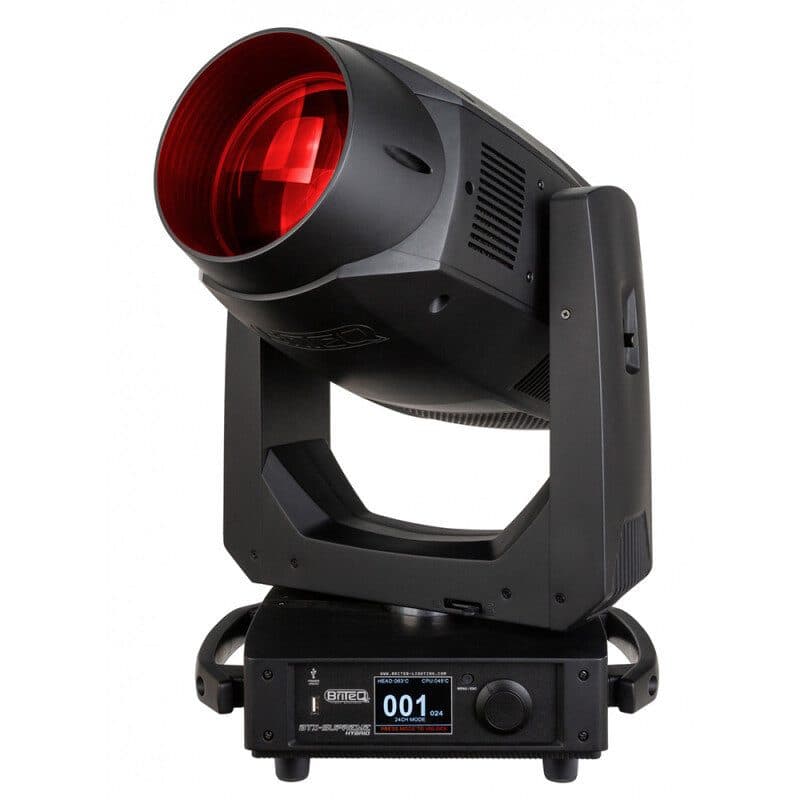

The Briteq BEG-B05536 is an extremely bright Beam, Spot and Wash hybrid moving head for large clubs, stages and rental work. Its Osram Sirius HRI 471 W SN lamp, rated at a CCT of 7500 K, works with high-quality optics and gives a maximum power consumption of 800 W while delivering high output. In Beam mode it covers 1.8° to 22° and reaches up to 485,000 lux at 10 m; in Spot mode the range is 3° to 42°, with up to 132,000 lux at 10 m. Effects include fast, precise CMY colour mixing, a colour wheel carrying 13 selected colours plus a 3200 K CTO filter and white, a Gobo wheel with 13 static Gobos plus open, and another wheel with 9 rotating, indexable glass Gobos. These Gobos are easily replaceable and measure OD 17 mm / IM 12 mm. Two prism wheels are fitted, each with 4 rotating, indexable prisms that can be combined, together with one rotating, indexable animation wheel that can work with different Gobos.

The optical section also provides a light Frost effect adjustable from 0 to 100%, a heavy Frost effect with the same 0-100% range, and a Hi-CRI filter for improved white-light quality. Motorised zoom and focus use calibrated DMX values. The accurate dimmer and shutter support linear dimming and variable strobe effects. Three-phase stepper motors deliver fast Pan/Tilt movements of 540°/270°, with 8- or 16-bit precision. The Pan range can be selected as 540° or 630°.

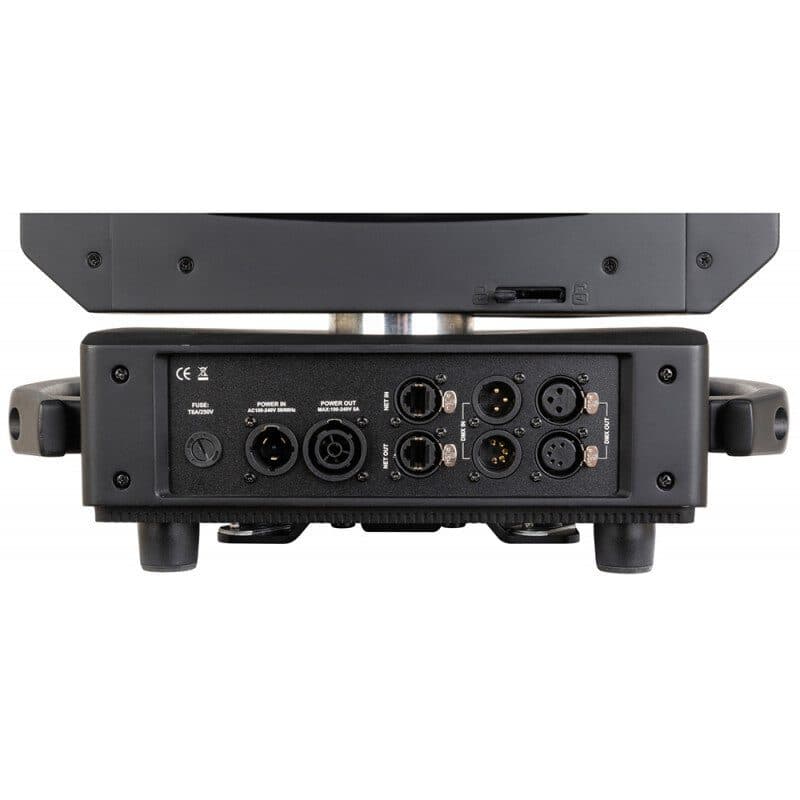

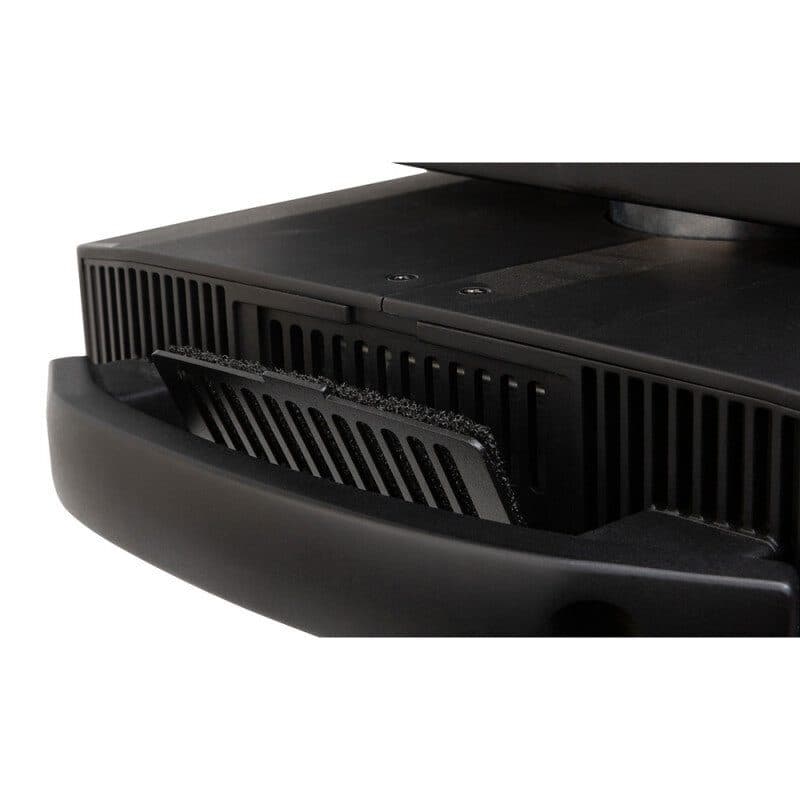

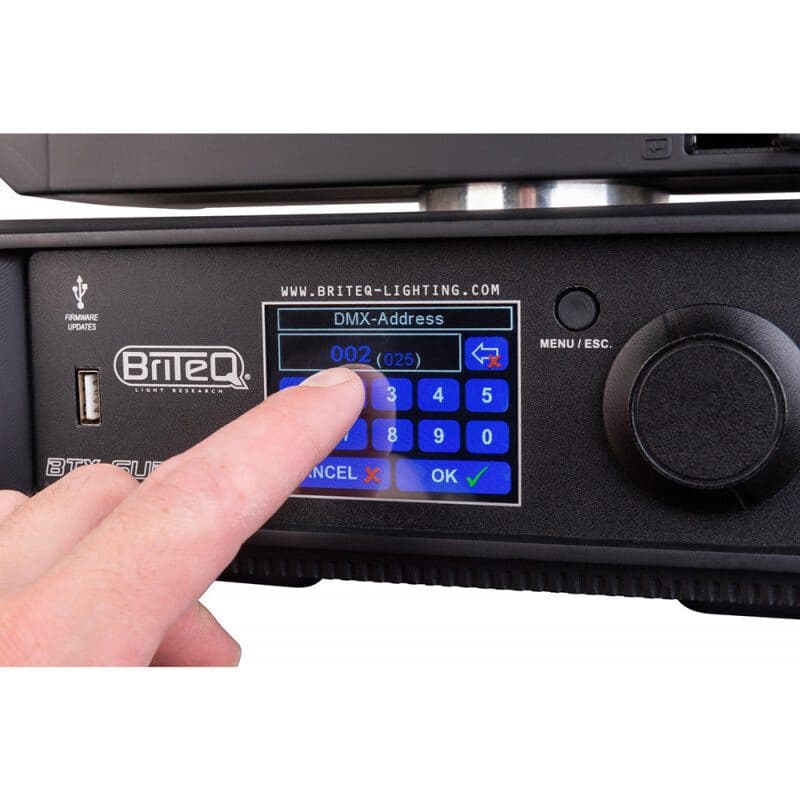

A modular construction simplifies servicing and cleaning. Supported protocols are DMX-512/RDM, Art-Net and sACN. Wireless DMX is provided by an integrated W-DMX Sweden module with an internal antenna designed to avoid antenna breakage. Two DMX channel modes are available: standard with 24 channels and Extended with 35 channels. The 2.8-inch colour touchscreen automatically rotates its display, while a rotary encoder allows convenient menu scrolling. Factory and user defaults can be saved and recalled. Firmware updates are performed through a USB memory stick. The lamp offers remote ON/OFF control and remote FULL 471 W/ECO 360 W control to extend its lifetime up to 2000 hours. Neutrik 3-pin and 5-pin XLR, RJ45 network IN/OUT and Neutrik powerCON TRUE1 IN/OUT connections support professional installation; up to 12 A can be daisy chained through powerCON TRUE1. Two omega brackets are included.

Specifications:

• Power input: 100 - 240 V AC, 50/60 Hz
• Power consumption: 800 W
• Colour: black
• Display: touchscreen
• Fixation: included omega bracket
• IP rating: indoor
• Modes: stand-alone fixed, manual, DMX
• Protocols: Art-Net, sACN, DMX, Wireless DMX, RDM
• Programmable: yes
• Upgradable software: yes
• Minimum DMX channels: 24
• Maximum DMX channels: 35

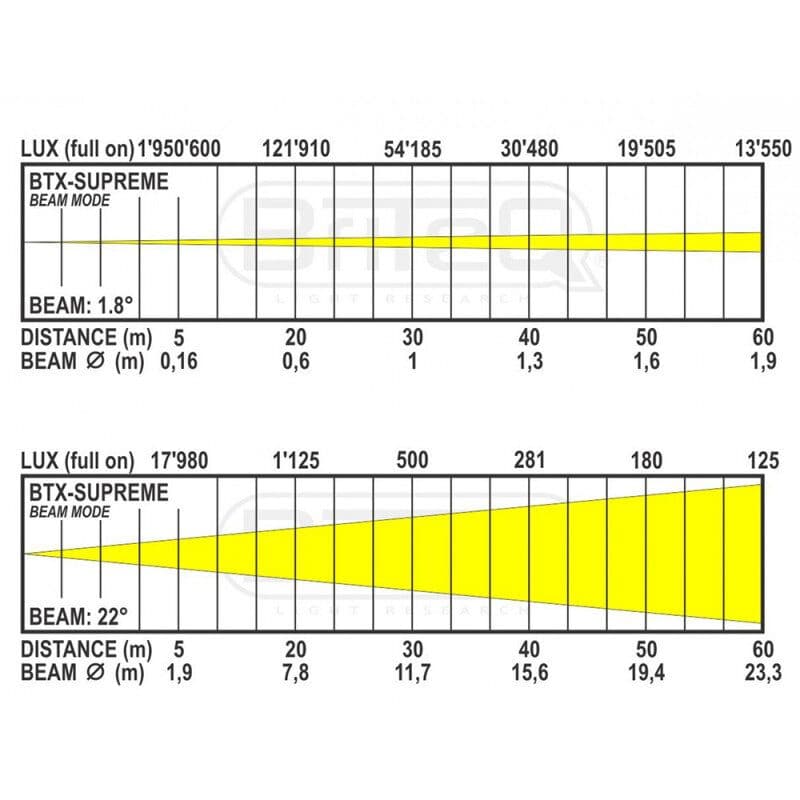

• Illuminance: 1,950,600 lux at 5 m, beam 1.8°
• Lamp: discharge
• Minimum colour temperature: 3200 K
• Maximum colour temperature: 7500 K
• CRI: 90
• Colours: red, green, blue, white, amber, cold white, warm white, CMY
• Colour mixing: yes
• Functions: motorised focus, motorised zoom, iris, 4 facet round prism, 6 facet round prism, 8 facet round prism, 16 facet round prism, 32 facet round prism, 4 facet linear prism, 6 facet linear prism, cylindrical prism
• Fixed Gobos: 13
• Rotating Gobos: 9
• Minimum beam angle: 1.8°
• Maximum beam angle: 42°
