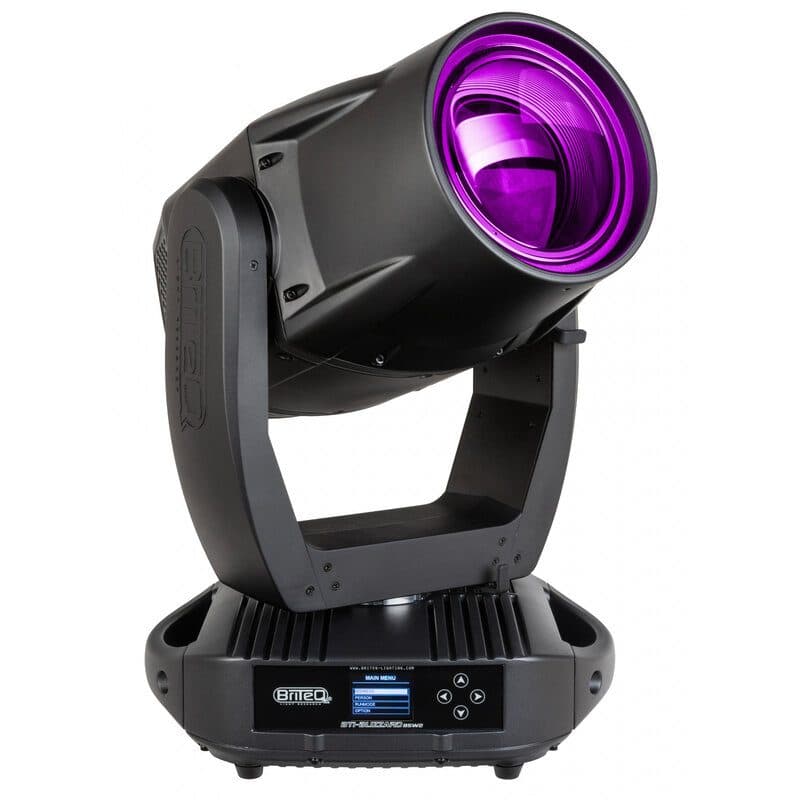

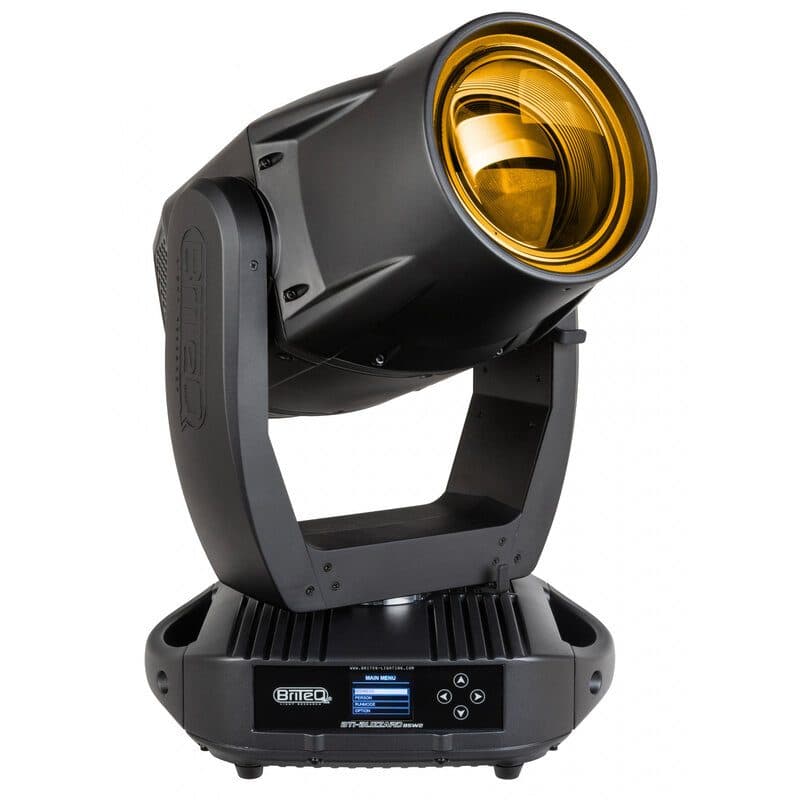

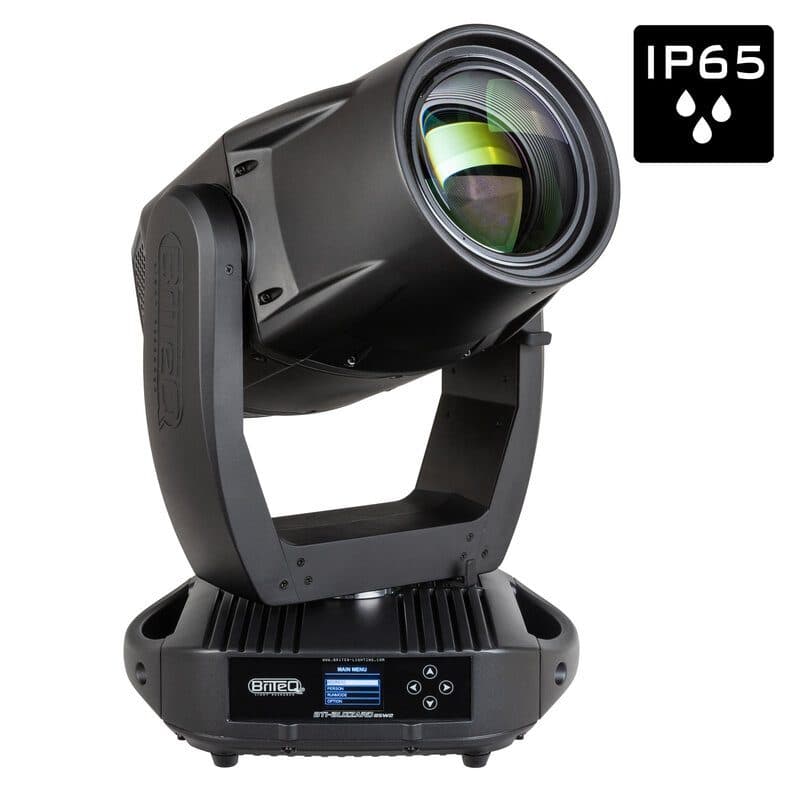

Moving head LED Beam Spot Wash 450W IP65 BTI-BLIZZARD BSW2 - Briteq BEG-B05568

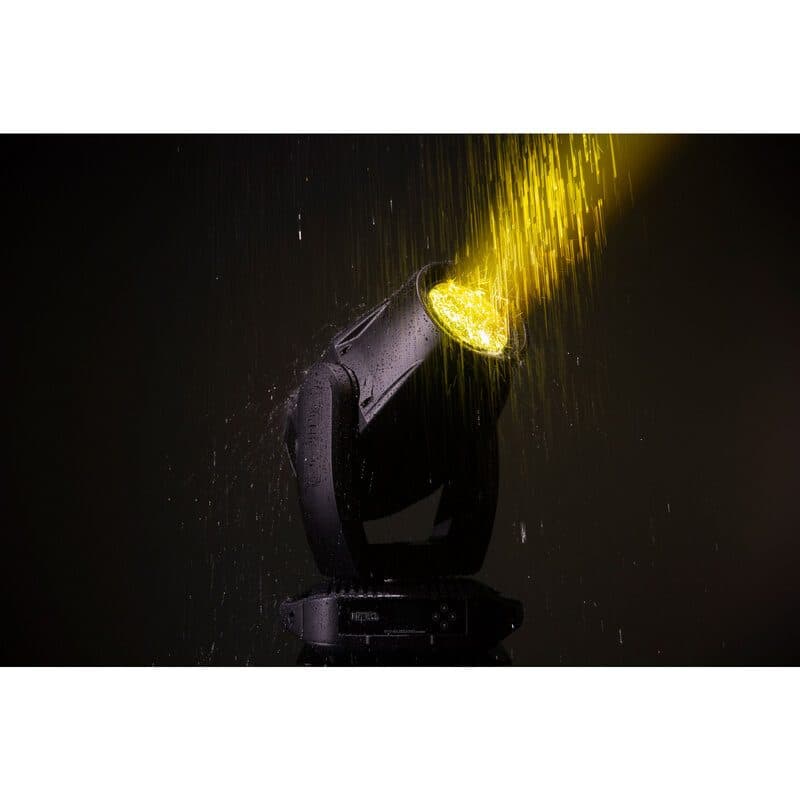

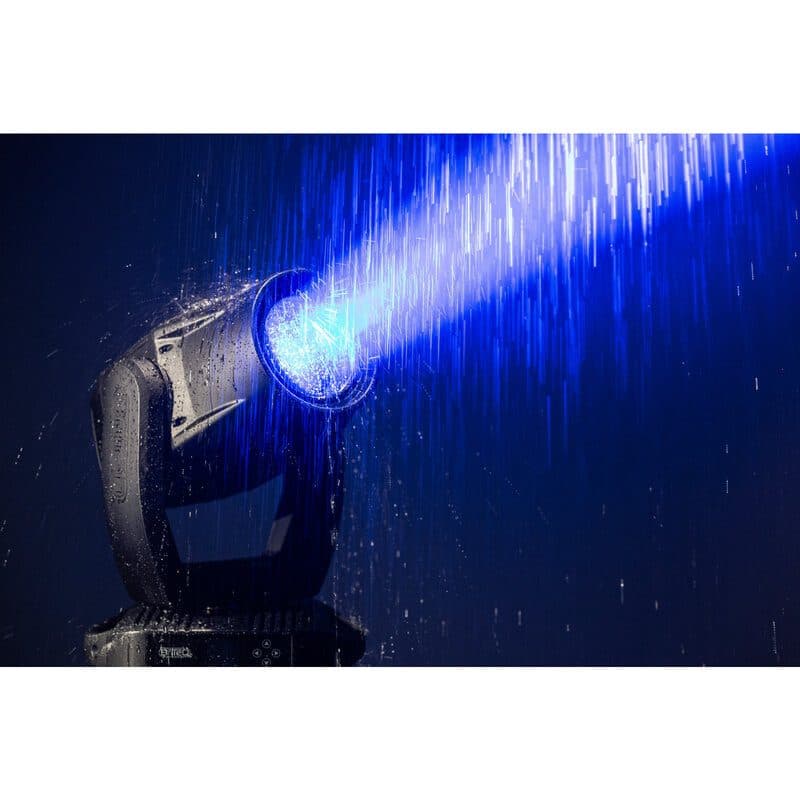

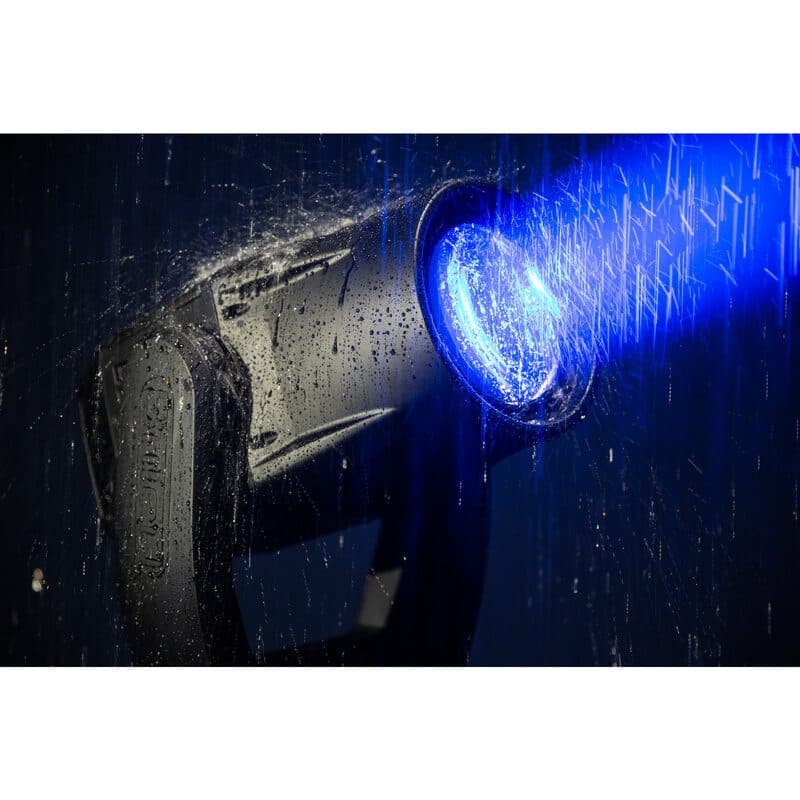

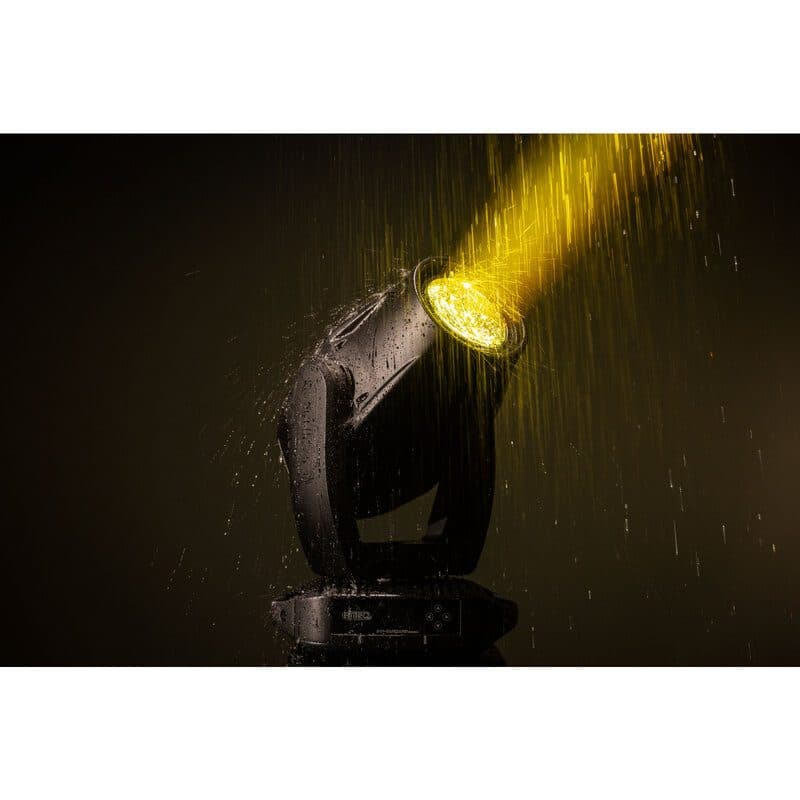

The Briteq BEG-B05568 is a powerful 450 W motorised LED moving head fixture designed for quiet operation indoors and outdoors. Its IP65 certification supports use in both environments. The electronic zoom ranges from 3° to 30° and combines motorised focus with autofocus for different zoom settings.

Pan movement reaches 540° and Tilt movement 270°, with 16-bit resolution, position correction and a dedicated Pan/Tilt speed channel. The super-quiet fan mode is suited to theatrical applications. The fixture provides CMY colour mixing with colour macros, 7+1 fixed colours including UV, 7+1 replaceable rotating glass gobos with fine indexing, and 7+1 replaceable fixed static glass gobos for gobo layering. The bi-rotating prism has 5 facets; a 6-facet round prism is also listed among the technical functions.

A linear frost filter creates a wash effect, while the animation wheel rotates continuously and includes indexing. The strobe incorporates random, pulse and burst effects. The smooth 16-bit dimmer offers fast and slow dimming modes together with four curves: linear, square, inverse square and S-curve.

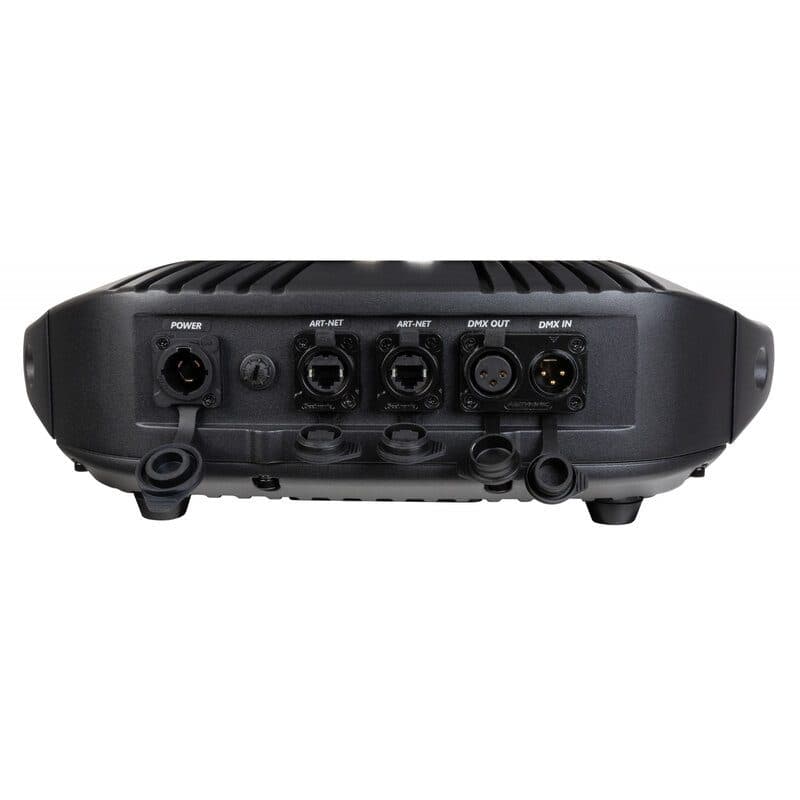

The fixture supports Art-Net and sACN, uses 22, 26 or 29 DMX channels and includes RDM for remote setup. An internal webserver provides additional remote configuration. The matrix LCD display simplifies access to the setup menus. RJ45 input and output are provided together with 3-pin XLR DMX input and output, which can be converted to 5-pin XLR. The unit is compatible with powerCON TRUE1 and includes omega brackets for fast installation.

The 450 W white LED module delivers high light output. Fast and precise movement, position correction, speed control, dynamic colours, advanced effects and super-quiet fans make the fixture suitable for theatrical performances, concerts and music festivals, indoor and outdoor live events, installations in large venues and arenas, television and broadcast productions, trade fair installations and dynamic sets, film sets and video shoots, as well as permanent installations in exhibition spaces or museums.

Specifications:

• Colour: black
• Display: LCD
• Fixation: omega bracket included
• IP rating: indoor and outdoor
• Modes: stand-alone, fixed, manual, DMX
• Protocols: Art-Net, sACN, DMX, Wireless DMX, RDM
• Programmable: yes
• Software upgradable: yes
• Minimum DMX channels: 22
• Maximum DMX channels: 29
• Illuminance: 111,429 lux at 5 m, beam 3.7°
• Lamp: LED
• Colour temperature: 6800 K
• CRI: 75
• Colour mixing: yes
• Functions: motorised focus, zoom and frost, linear frost, 6-facet round prism
• Fixed gobos: 8
• Rotating gobos: 8
• Minimum beam angle: 3°
• Maximum beam angle: 30°
• Maximum refresh rate: 25 kHz
• Inputs: 3-pin XLR, optional Wireless DMX, Wi-Fi, Art-Net, RJ45, RDM, PowerCON TRUE1 or compatible
• Outputs: 3-pin XLR, Art-Net, RJ45
• Power input: 100 - 240 V AC, 50/60 Hz
• Power consumption: 560 W
• Dimensions: 41.6 × 35.8 × 67 cm
• Weight: 34 kg
