Moving head Beam LEP 100W IP65 0,5°-1,6° - BRITEQ BEG-B05584

BTI-BLIZZARD LBEAM is a compact, powerful motorised moving head with IP65 protection and a 100 W white LEP laser module. It is intended for indoor and outdoor applications and generates an exceptionally narrow beam adjustable from 0.5° to 1.6°. Its 16-bit Pan/Tilt movement is extremely fast, while the quiet operation also suits theatres. The CMY system, rotating gobos, dual combinable prisms and 24-bit dimmer provide accurate beam control. DMX/RDM connectivity, a matrix LCD display and an optional W-DMX/CRMX wireless receiver complete a fixture designed for professional installations and high-impact shows.

IP65 protection supports both indoor and outdoor use, while the silent fan mode is suitable for theatrical applications. Fast 16-bit Pan/Tilt movement includes position correction and continuous Pan. The CMY colour system provides several macros and 19+1 fixed colours; the wheel carries 12+1 replaceable rotating metal gobos with precision indexing. The optical section includes combinable 5L and 24C faceted prisms, a frost filter for a soft-beam effect, a precise strobe with integrated random burst effects, and a smooth 24-bit dimmer with fast and slow dimming modes.

Operation uses 19, 23 or 25 DMX channels together with RDM functionality for straightforward remote setup. The optional wireless DMX receiver supports W-DMX and CRMX. The matrix LCD makes menu navigation simple, while the 3-pin and 5-pin DMX inputs and outputs, plus powerCON TRUE1-compatible connections, provide flexible integration. Omega brackets are supplied for quick installation.

The laser source delivers a powerful, precise beam from 0.5° to 1.6°. Quiet operation, CMY colour mixing, rotating gobos, dual prisms, frost, the 24-bit dimmer and advanced strobe functions expand the creative range; the W-DMX/CRMX option can reduce cabling. Suitable areas include concerts and large live events, outdoor shows and festivals, theatres and television studios, high-end discos and clubs, as well as architectural light shows and long-distance sky beams.

Specifications:

• Power input: 100 - 240 V AC, 50/60 Hz
• Power consumption: 150 W
• Colour: black
• Display: LCD
• Fixation included: omega bracket
• IP rating: indoor, outdoor
• Modes: stand-alone fixed, stand-alone automatic, manual, DMX
• Protocols: DMX, Wireless DMX, RDM
• Upgradable software: yes
• Min. DMX channels: 19
• Max. DMX channels: 25

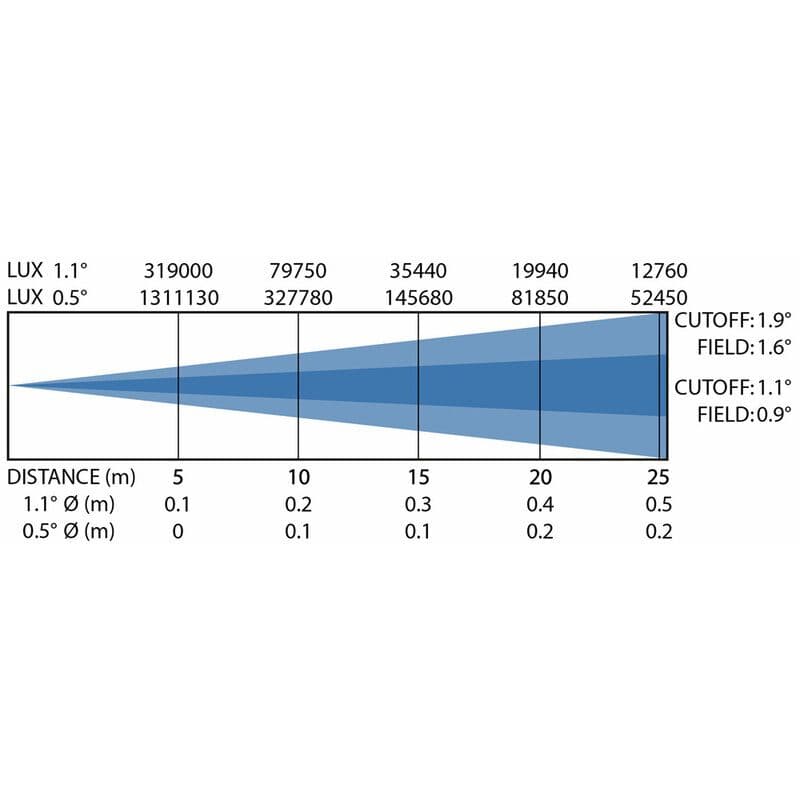

• Lux: 1,311,130 at 5 m, beam 0.5°
• Max. lumen output: 56,000 lm
• Lamp: LEP – laser emitted
• CRI: 73
• Colours: white, CMY
• Colour mixing: yes
• Functions: motorised focus, motorised frost, 5-facet linear prism, 24-facet round prism
• Rotating gobos: 12
• Zoom range: 0.5° - 1.6°
• Max. refresh rate: 25 kHz

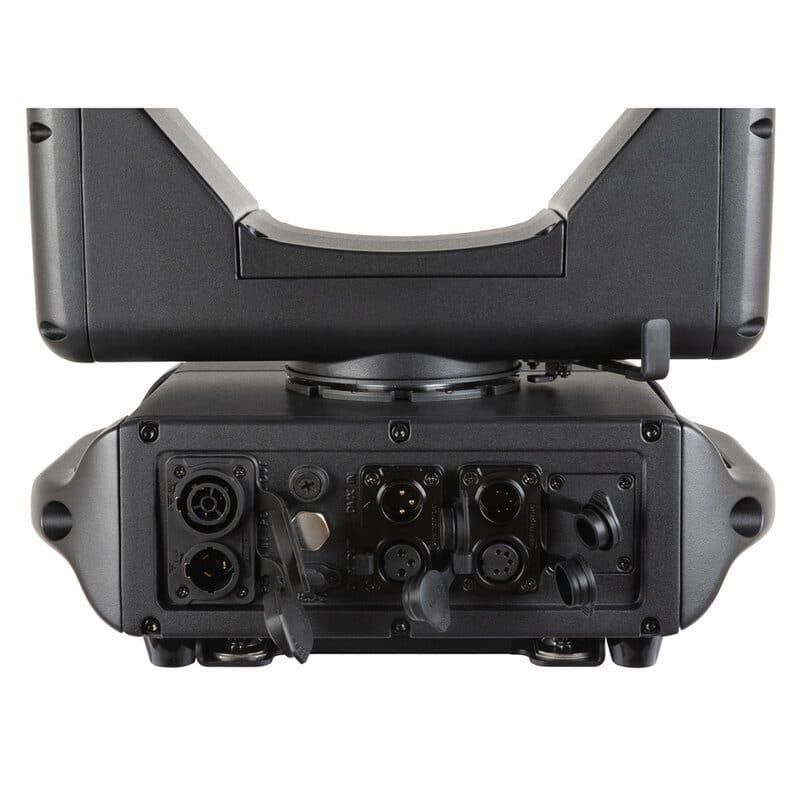

• Input: 3-pin XLR, 5-pin XLR, optional Wireless DMX, RDM, powerCON TRUE1 or compatible
• Output: 3-pin XLR, 5-pin XLR, RDM, powerCON TRUE1 or compatible

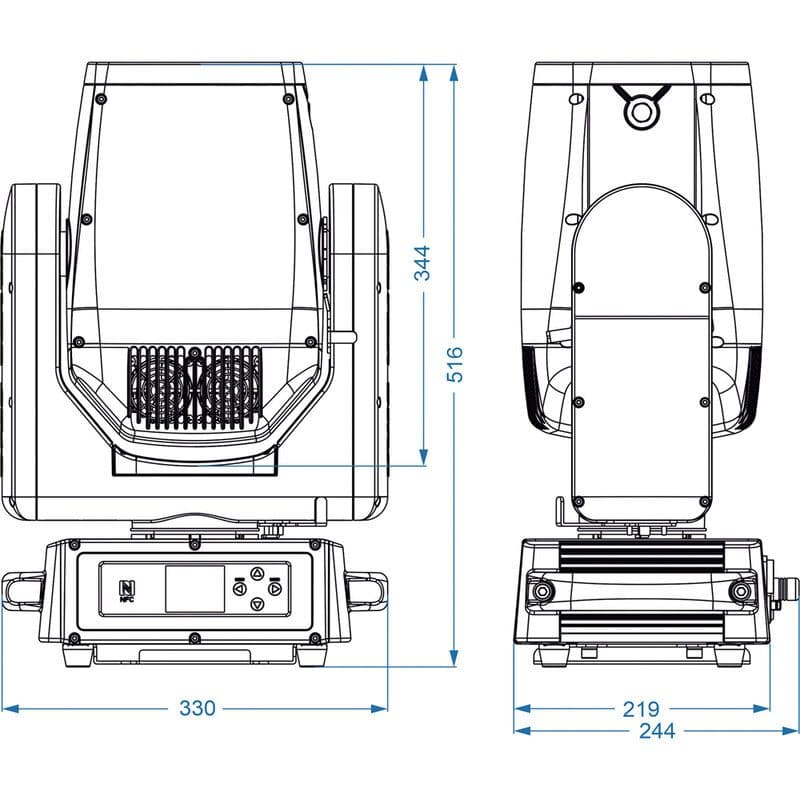

• Dimensions: 51.6 x 33 x 24.4 cm
• Weight: 19 kg
