LED pixel mapping bar BTI-Beambar18 1m IP65 - BRITEQ BEG-B05576

The Briteq BEG-B05576 is a versatile 1 m outdoor LED Pixel Mapping bar for rental work, TV studios, concert stages, discotheques and other applications. It features 18 highly effective 6° narrow lenses combined with powerful 25 W RGBL LEDs. IP65 protection supports outdoor use, while the included magnetic Frost filter converts the bar into a Wash light.

Full pixel control can be handled by the intuitive effect engine or through DMX, Art-Net or sACN. The fixture provides 11, 20, 24, 76 or 96 DMX channels, with RDM functionality for remote setup. Smooth 16-bit dimming offers adjustable speed and 3 different curves. Built-in CCT presets cover 1700 to 8000 K, while the LED refresh rate can be selected between 1200 and 25,000 Hz.

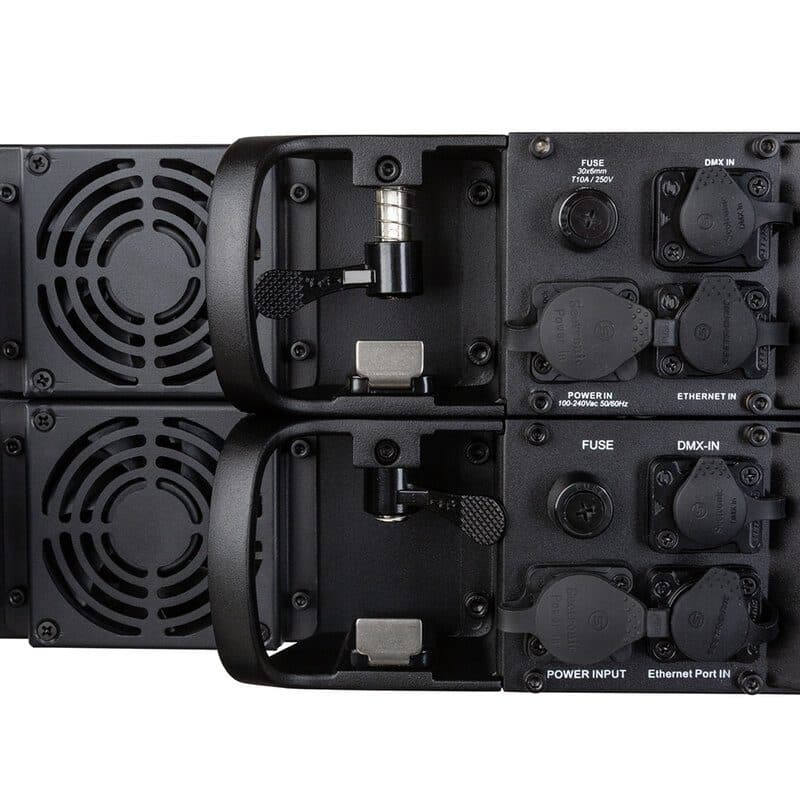

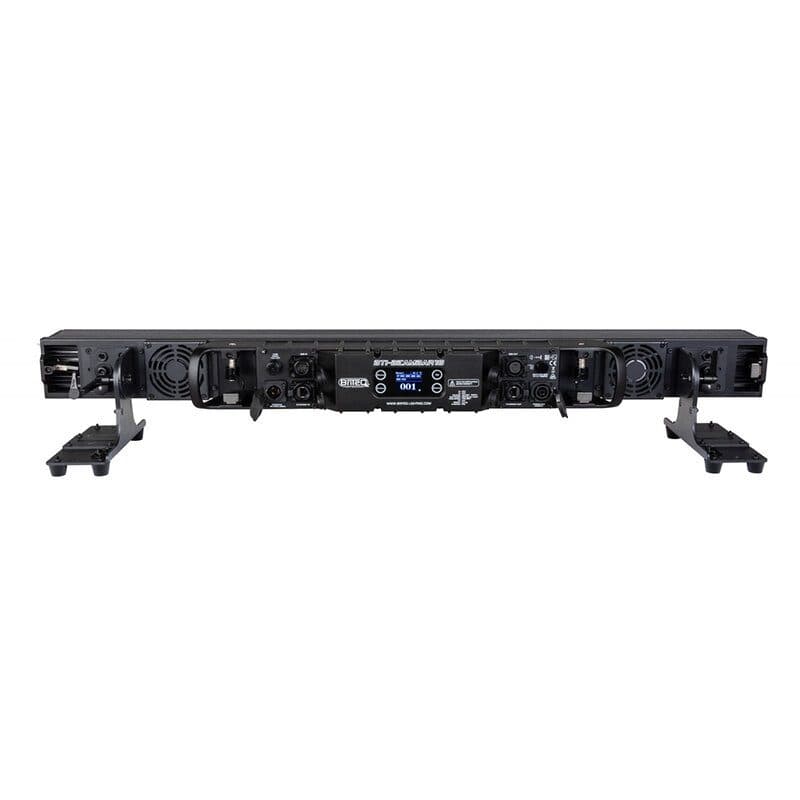

The quick-lock system makes it easy to mount multiple flood lights together horizontally or vertically. An OLED display with touch buttons simplifies navigation. Seetronic IP65 5-pin XLR connectors can be converted to 3-pin XLR using the BT-XLR5TO3 kit. Seetronic IP65 RJ45 connectors provide Art-Net and sACN connectivity, with built-in Art-Net to DMX conversion. The Seetronic IP65 TRUE1-compatible power connection provides IN/OUT; software updates are performed through a standard RJ45 cable. Strong tilt brackets with included omega brackets support fast installation.
