White LED pinspot 15W DMX 4° warm white lens - BRITEQ BEG-B04960

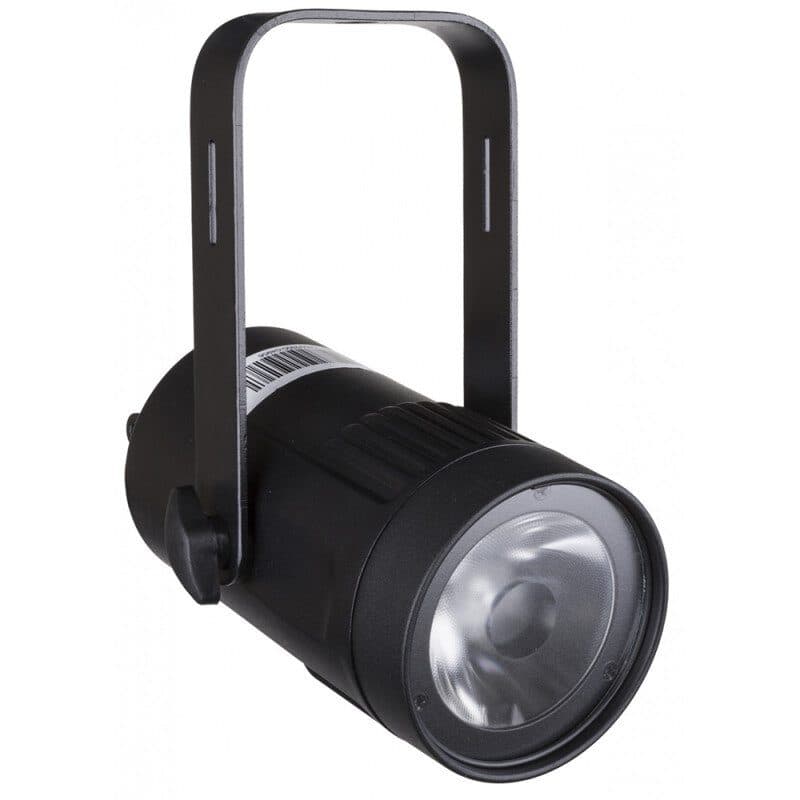

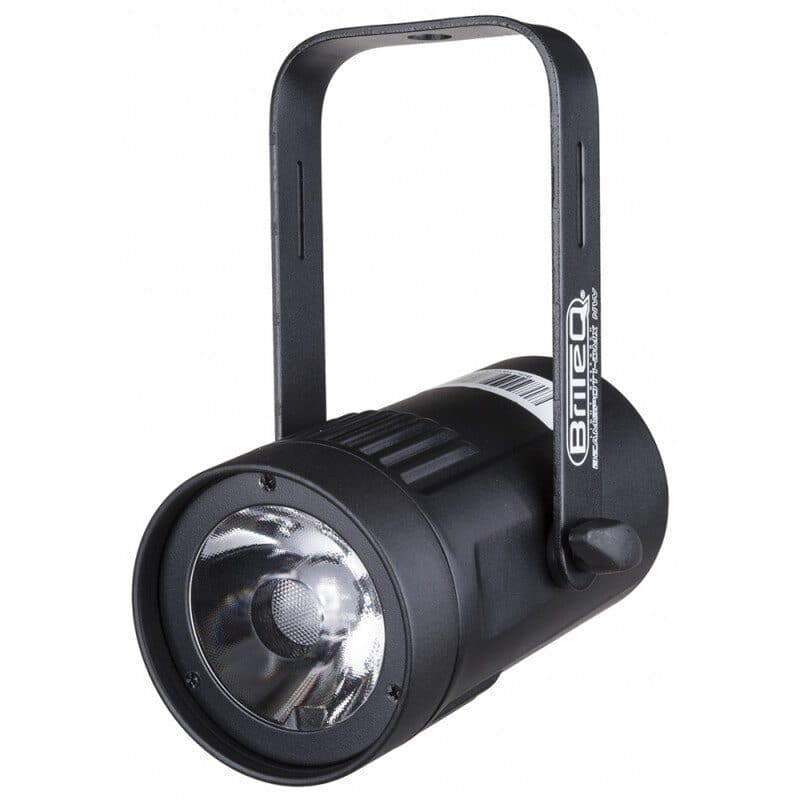

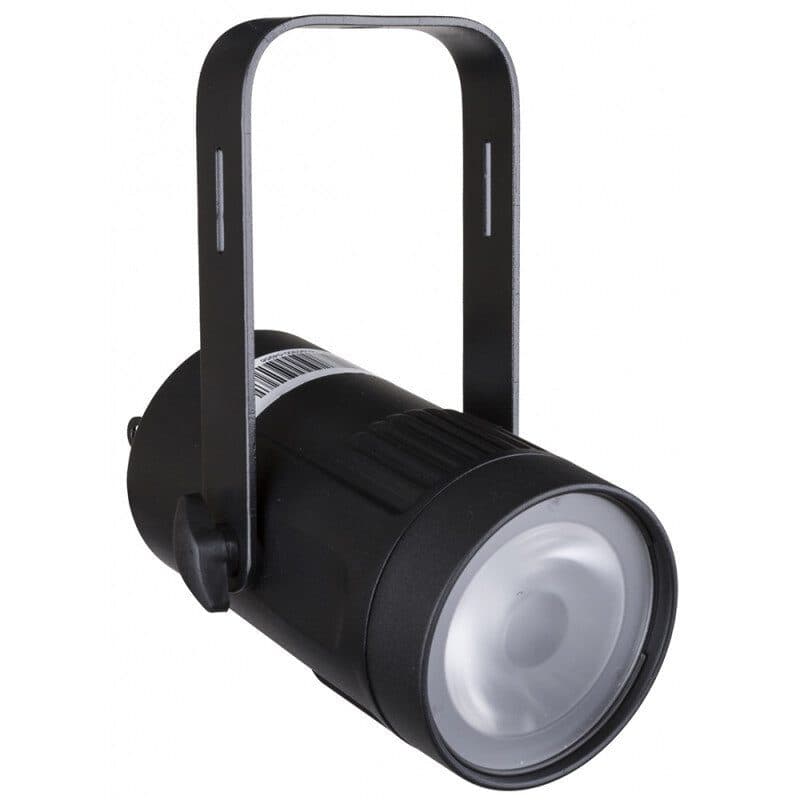

The compact 15 W Briteq LED pinspot is a modern, efficient alternative to conventional halogen PAR36 fixtures. It produces warm white light in a very narrow beam, suited to accenting mirror balls and small objects. The source is a 15 W high-CRI white LED, intended for natural colour rendering and flicker-free output with a 1200 Hz refresh rate.

The unit is fanless for quiet running. Lamp behaviour can be set to slower “halogen” mode or faster “LED” mode, with four dedicated dimming curves: linear, square, inverse square, and S-curve. Control is via 1- or 2-channel DMX with RDM for straightforward remote setup. On DMX loss, safety behaviour is selectable as blackout or freeze. Factory presets and custom user memories are available.

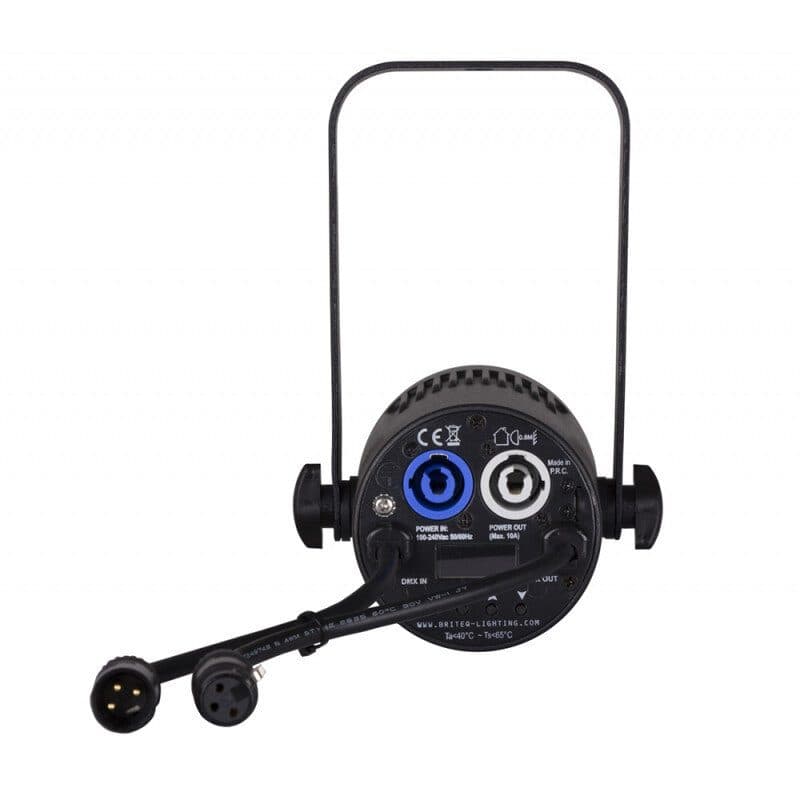

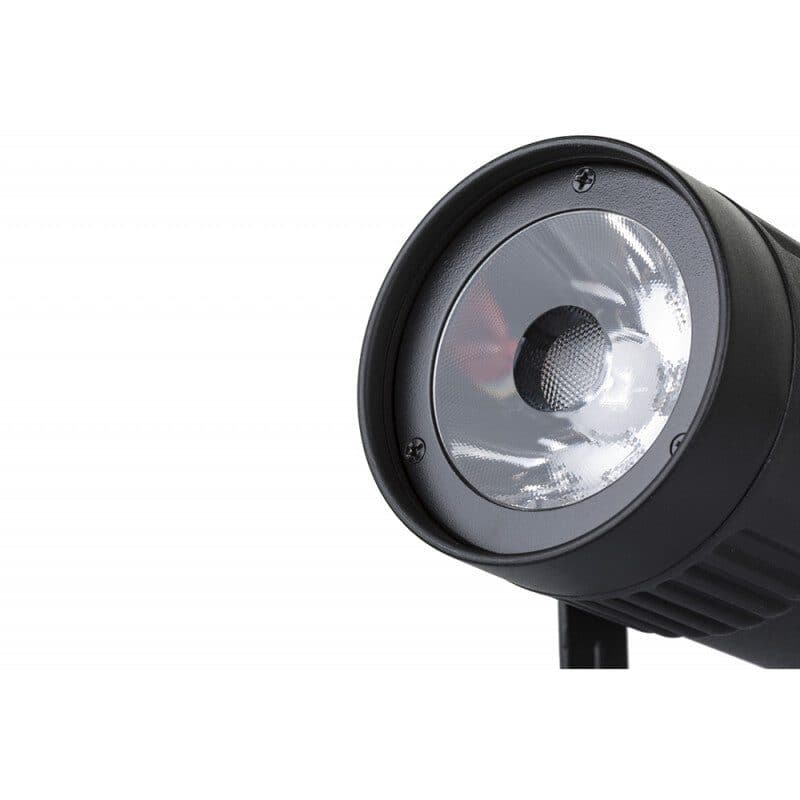

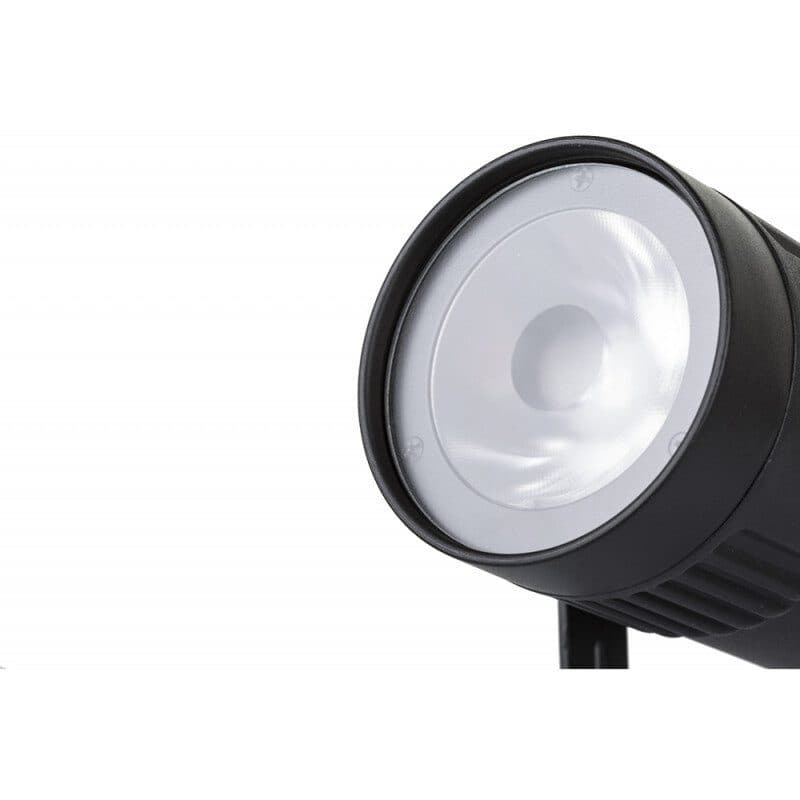

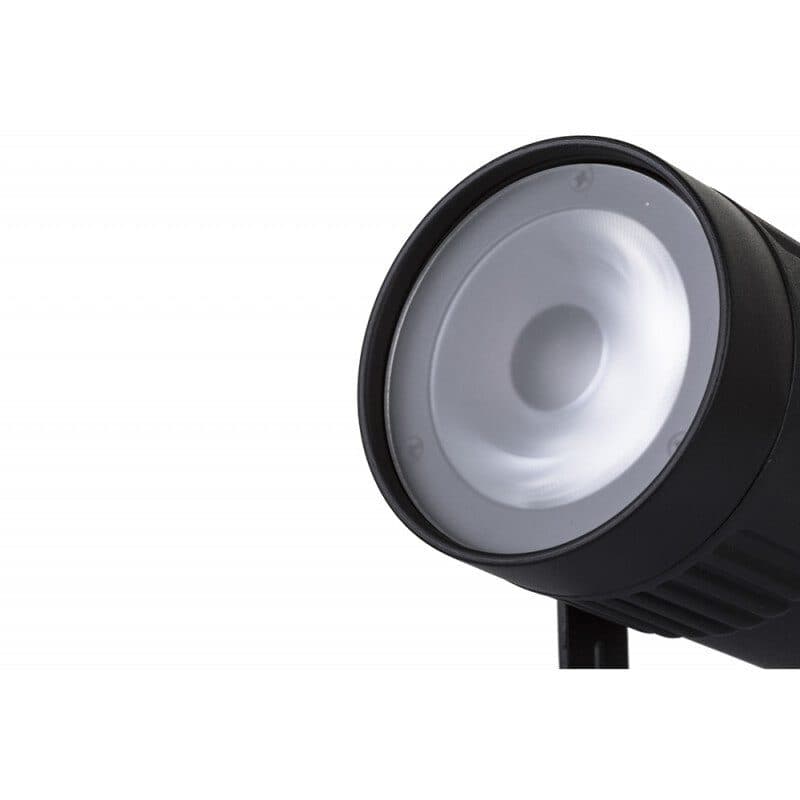

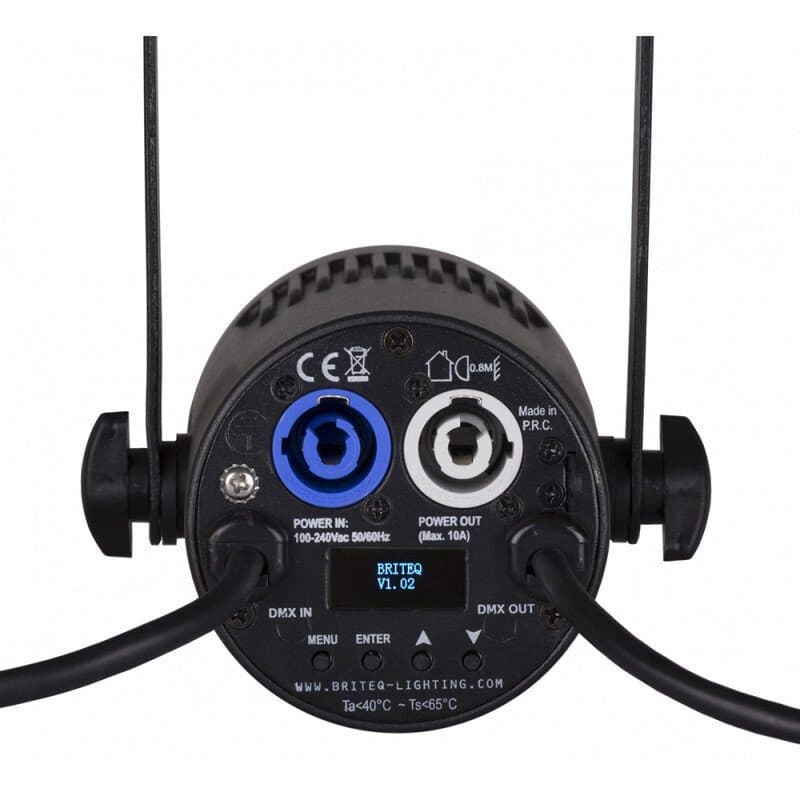

Optically it uses a very narrow 4° lens; included 10° and 45° filters widen the beam when required. Connections are 3-pin DMX IN/OUT and Neutrik PowerCON IN/OUT for daisy-chaining. An integrated OLED display speeds up menu navigation.

Typical applications: nightclubs, exhibition stands, showrooms, hotels, restaurants, shops, live music stages, and TV studios.

Specifications:

• Power input: 100 - 240 V AC 50/60 Hz
• Power consumption: 17 W
• Colour: black
• Fixation: M10
• IP rating: indoor
• Manual: yes
• Master/Slave: yes
• Stand-alone: fixed
• Optional remote: RC-2
• Upgradable software: yes
• Max. DMX channels: 2
• Lux: 1455 at 5 m (angle 4°)
• Lamp: LED
• Colour temperature: 3200 K
• CRI: 90
• Colours: warm white
• Min. beam angle: 4°
• Max. beam angle: 45°
• Min. refresh rate: 3.6 kHz
• Max. refresh rate: 3.6 kHz
• Input: 3-pin XLR, powerCON, RDM
• Output: 3-pin XLR, powerCON
• Dimensions: 17.2 x 19.6 x 12.5 cm
• Weight: 1.23 kg
