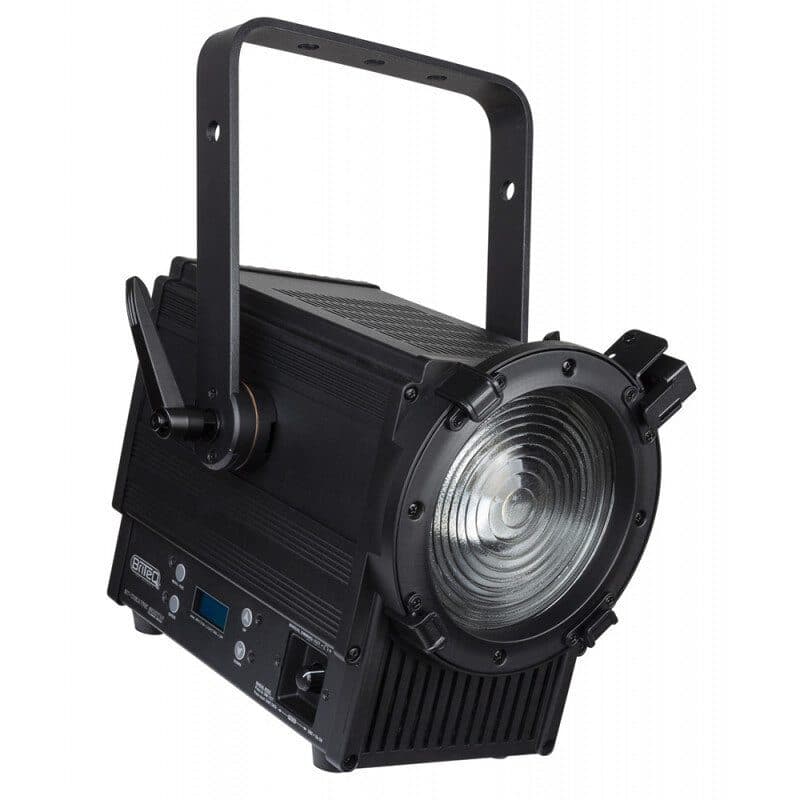

Theatrical Fresnel LED fixture 200W variable white 2800-6000K - BRITEQ BEG-B06030

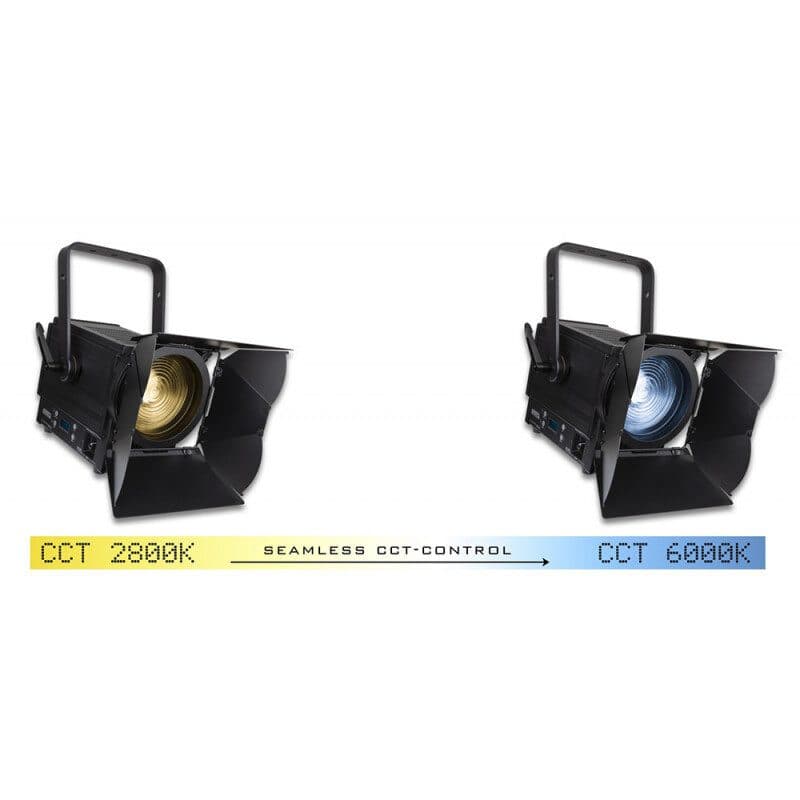

Briteq provides a 200 W LED Fresnel fixture for theatre and TV, using two 100 W LEDs: one at 2800 K and one at 6000 K. Tunable white can be adjusted from 2800 K to 6000 K. The fixture offers good light output and an exceptional photometric/price ratio, making it a flexible projector for television, theatre, rental work, trade fairs and exhibition booths.

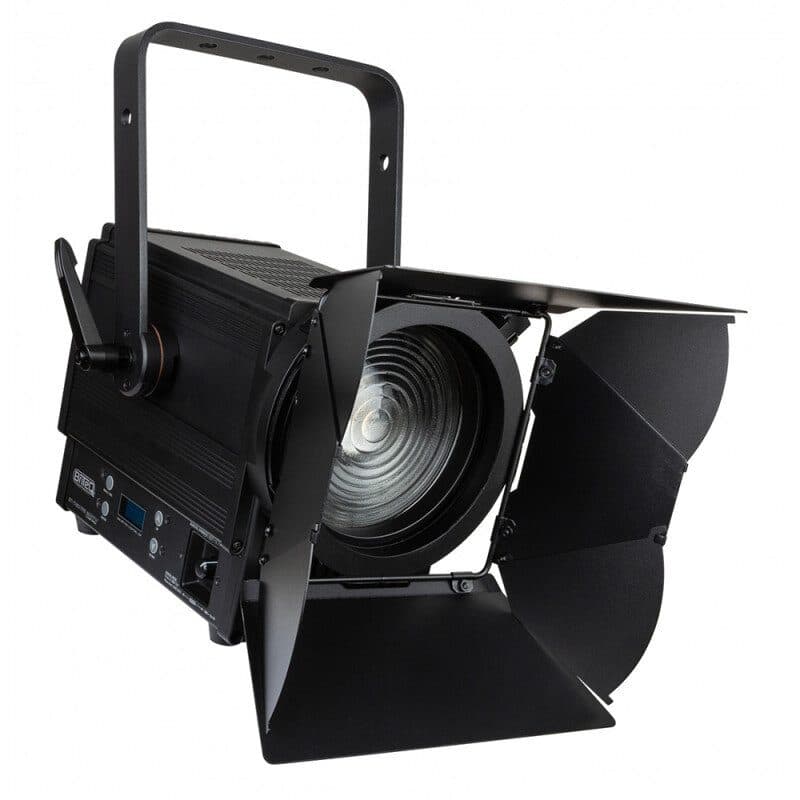

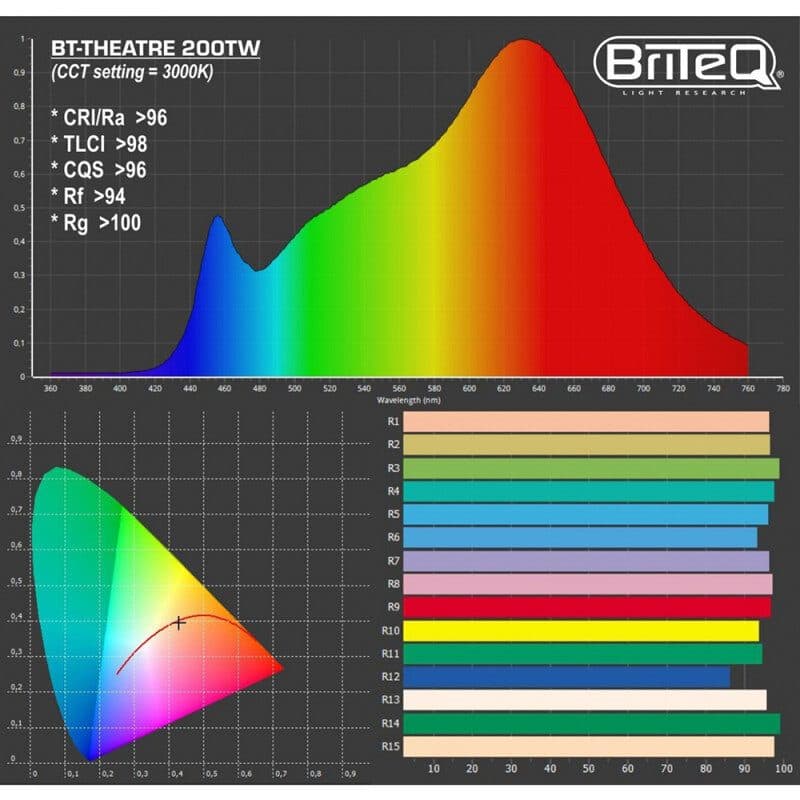

Colour quality is high, with CRI/Ra > 96, TLCI > 98, CQS > 96, Rf > 94 and Rg > 100 at 3000 K. The beam angle is manually adjustable from 12° to 56°, with a field angle from 20° to 67°. Stand-alone operation provides manual CCT presets at 2800 K, 3000 K, 3200 K, 4000 K, 4300 K, 5600 K and 6000 K. A colour-filter frame and eight-leaf barndoor are included.

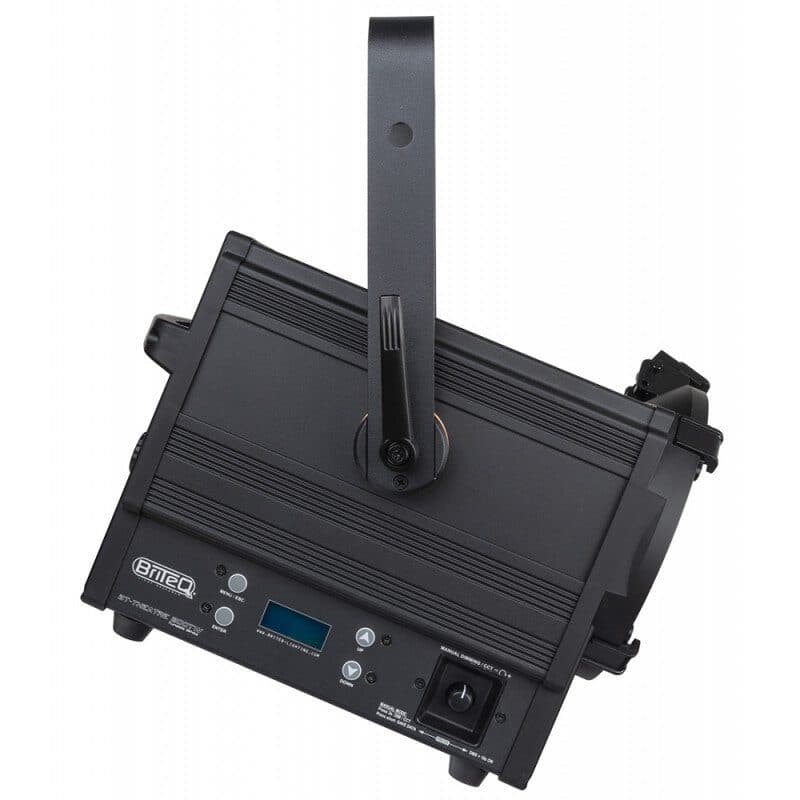

Heavy, expensive dimmer packs are not required. Cooling uses a temperature-controlled low-noise fan for very quiet operation. The LCD display simplifies menu navigation. Control can be manual or DMX-based, with 5 channel modes and 8-bit or 16-bit dimming. The fixture can also run in 1-channel DMX mode using the selected CCT preset.

Wireless DMX is available by connecting an optional WTR-DMX dongle to the USB port; the Briteq code is B04645. An adjustable LED refresh rate from 600 Hz to 4800 Hz supports flicker-free TV recording. Manual dimming, zoom and focus make stage alignment easy and also suit exhibition booths. Lamp behaviour can be selected to imitate a slow halogen lamp or a fast LED source.

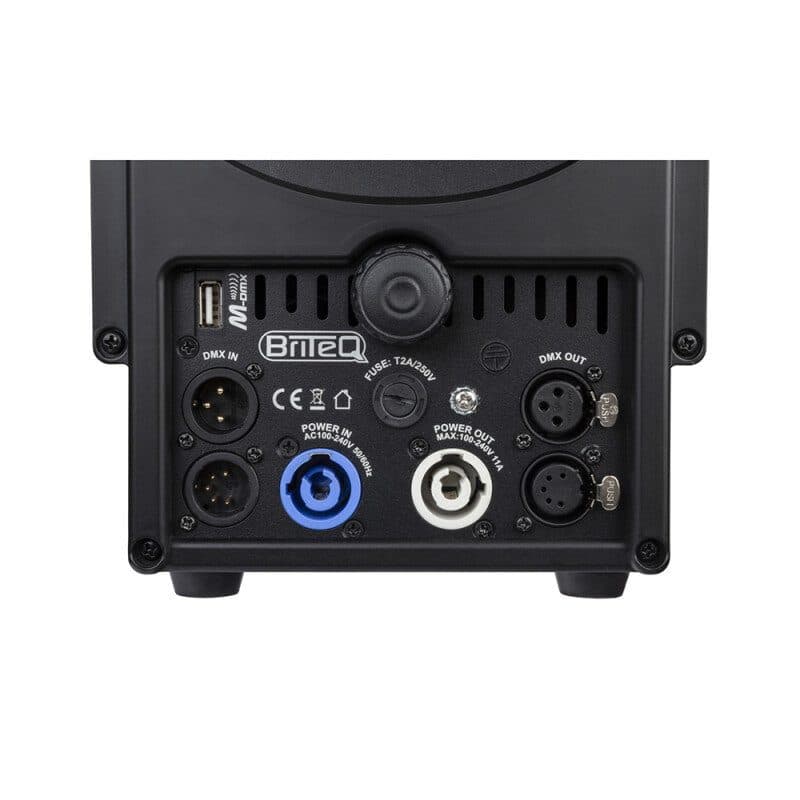

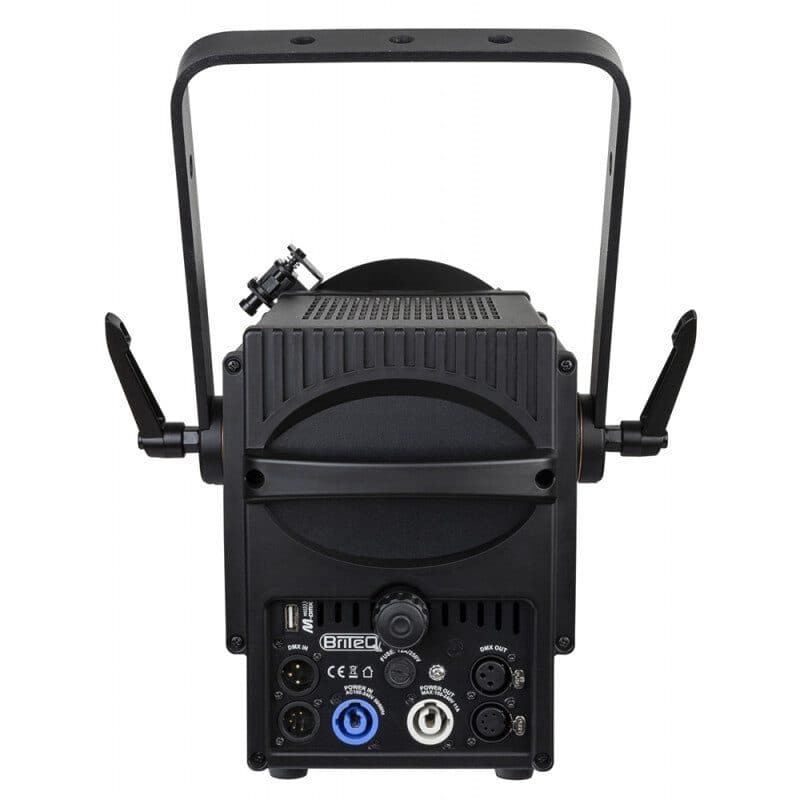

Four dimmer curves are provided: linear, square, inverse square and S-curve. In the event of DMX failure, manual, blackout or freeze mode can be selected. RDM supports remote setup and monitoring of DMX addressing, channel mode and temperature. A lock function prevents unwanted setting changes, while default factory settings and user settings can be saved and loaded. 3-pin and 5-pin DMX inputs and outputs plus powerCON-compatible connections support daisy chaining.

Excellent colour rendering, flexible operation, quiet performance, wireless DMX compatibility, the absence of heavy dimmer packages and RDM control make it suitable for theatres, TV studios, trade fairs, exhibitions and rental applications.

Specifications:

• Power input: 100–240 V AC, 50/60 Hz
• Power consumption: 105 W
• Colour: black
• Display: LCD
• Mounting: M12
• IP rating: indoor
• Modes: stand-alone, manual, DMX
• Manual control: yes
• Stand-alone fixed: yes
• Upgradable software: yes
• Maximum DMX channels: 5

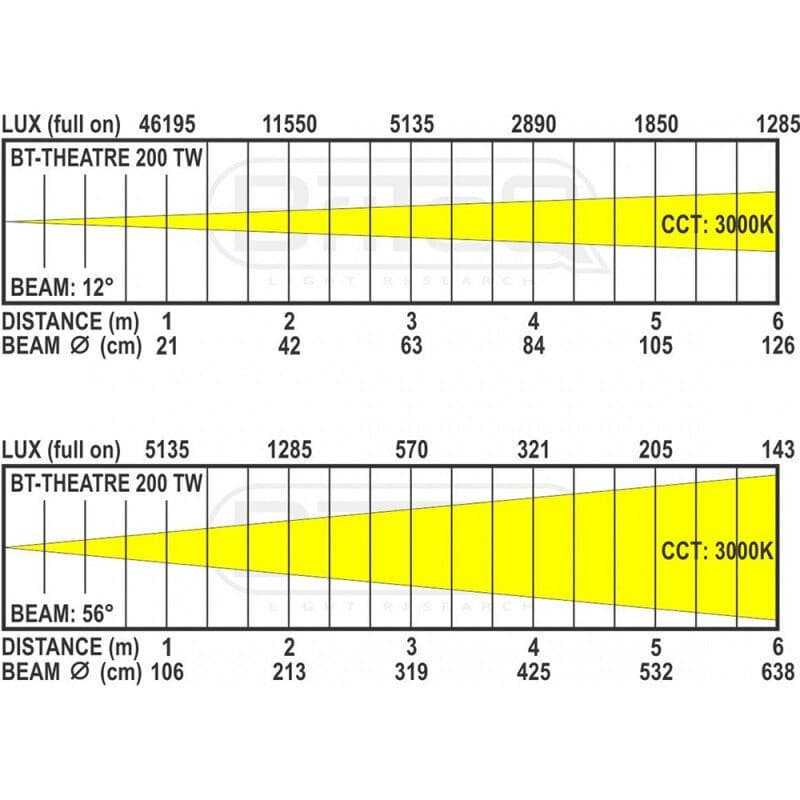

• Illuminance: 1850 lux at 5 m, 12° beam
• Light source: COB
• Minimum colour temperature: 2800 K
• Maximum colour temperature: 6000 K
• CRI: 95
• Colours: white, cold white, warm white
• Colour mixing: yes
• Functions: manual focus, manual zoom

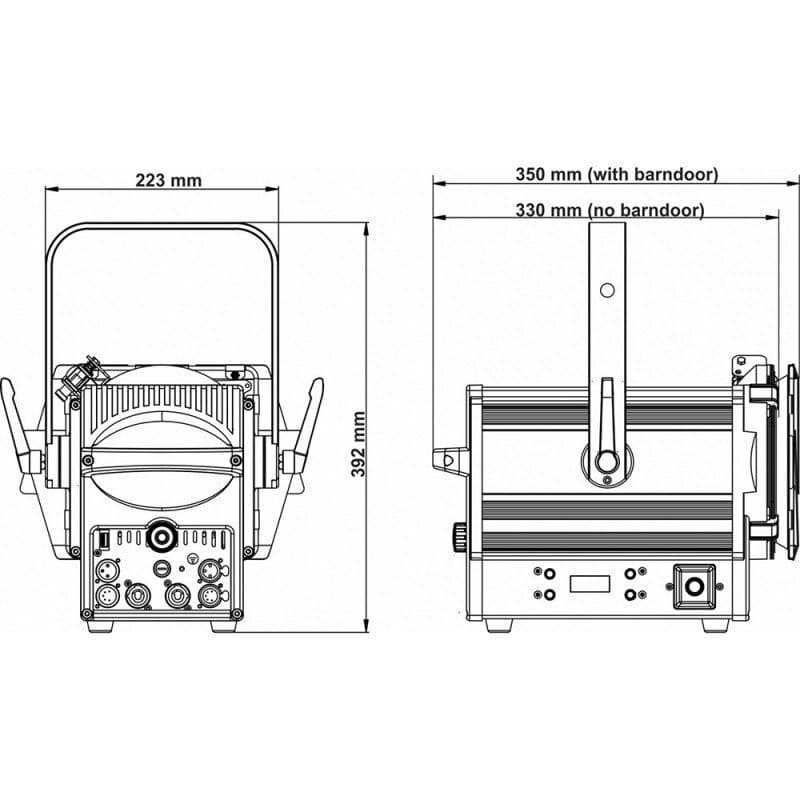

• Dimensions: see drawing
• Weight: 7.2 kg
