Theatrical LED Fresnel fixture 250W zoom 11-58° Mk3 - BRITEQ BEG-B06052

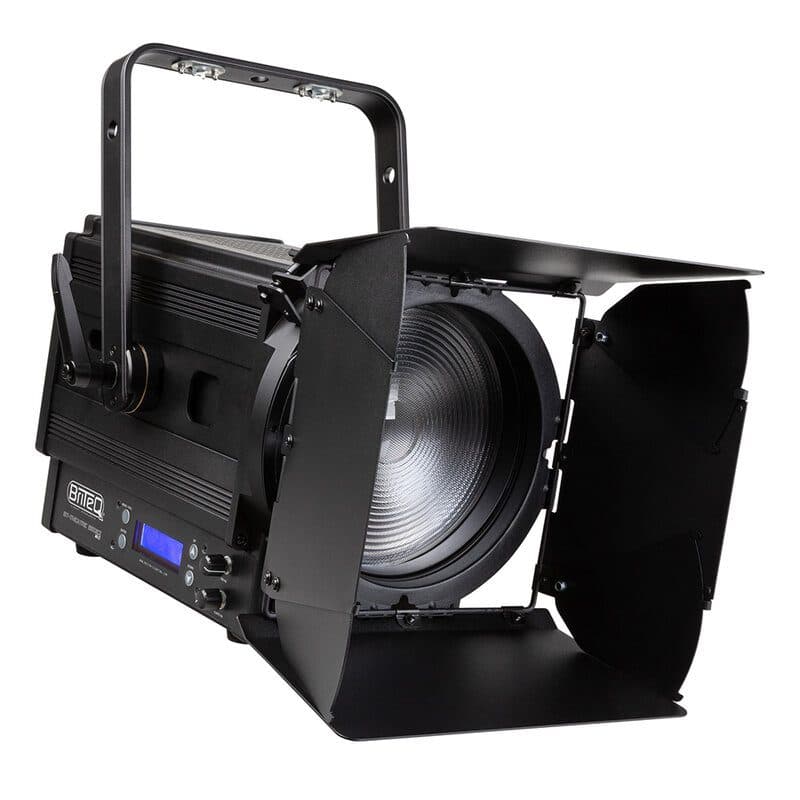

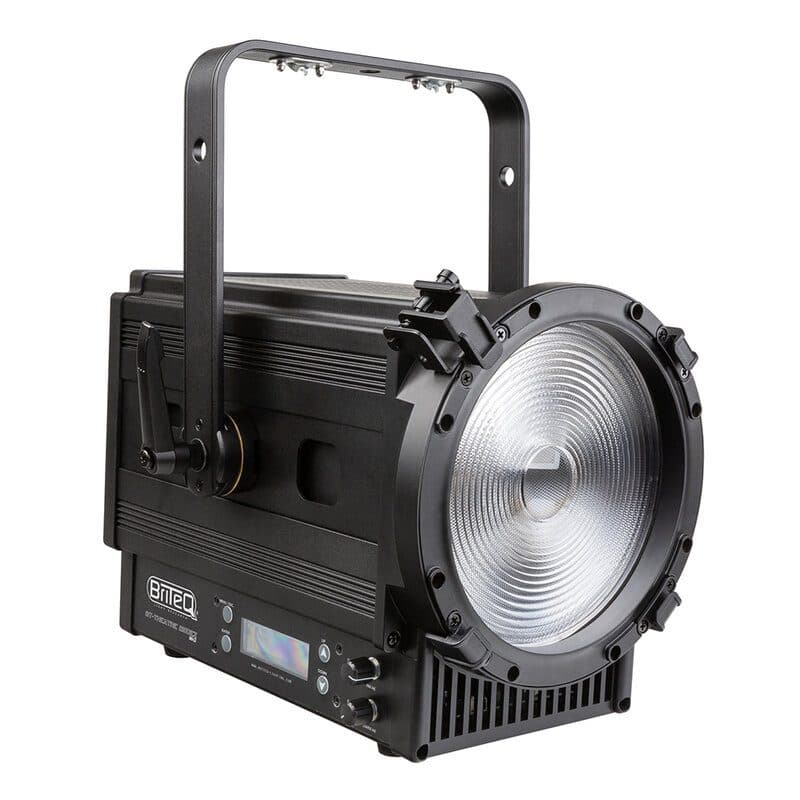

BRITEQ BEG-B06052 in its Mk3 version is an extremely powerful 250 W LED Fresnel theatre fixture with electronic zoom and an adjustable beam from 11° to 58°. The 250 W warm-white LED has a nominal colour temperature of 3200 K and produces more light than traditional 2 kW halogen theatre projectors, without requiring heavy and expensive dimmer packs. The new red/amber drift effect gives the fixture behaviour similar to a traditional halogen Fresnel.

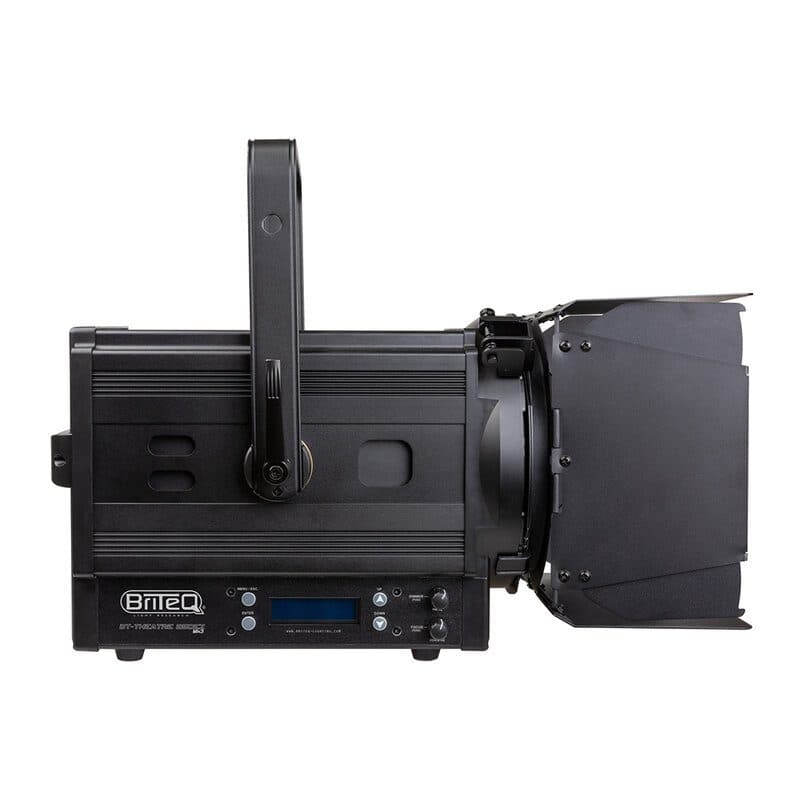

Photometric performance includes CRI/Ra above 98, TLCI above 98, CQS above 96, Rf above 95 and R9 above 97. The coloured frame allows the use of colour filters and the eight-blade barndoor. A revised cooling system ensures extremely quiet operation, low LED temperature and very stable light output. The reworked LCD display provides straightforward access to the configuration menu.

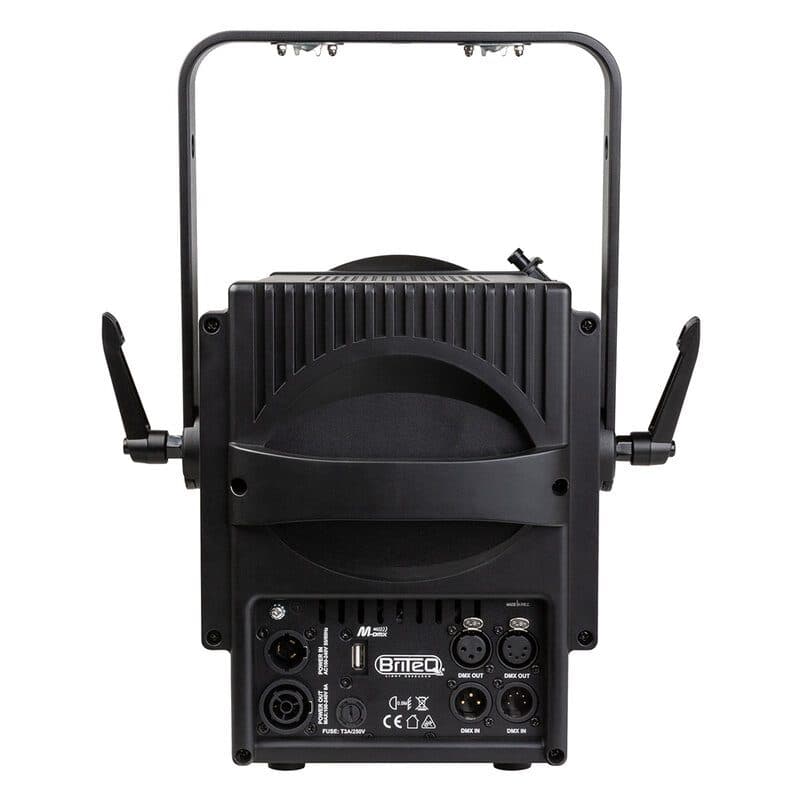

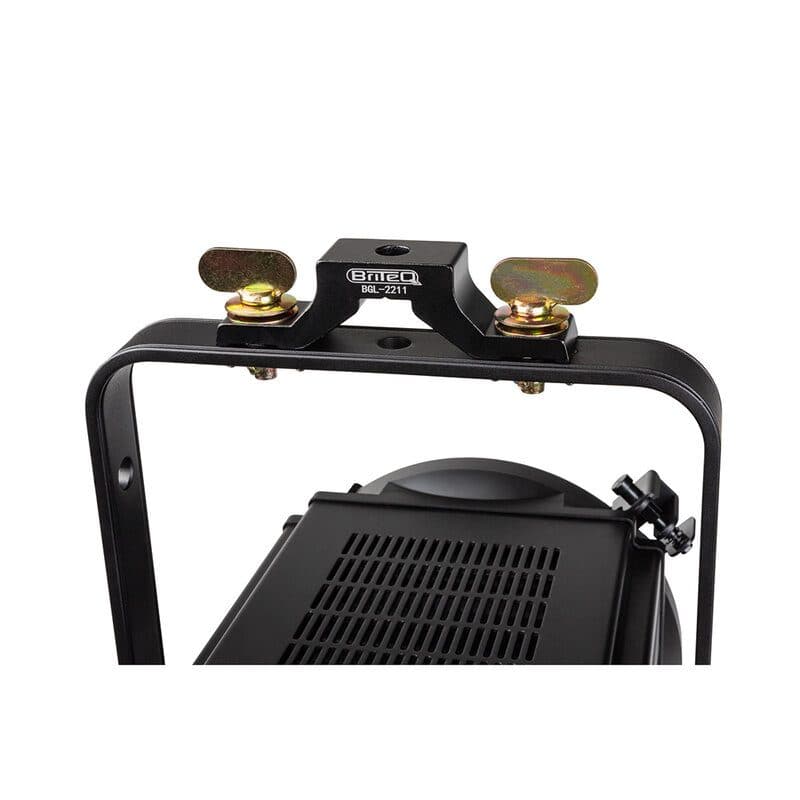

DMX control provides 7 channel modes with 8-bit or 16-bit dimming. If DMX fails, blackout or freeze mode can be selected. Wireless DMX readiness is provided through an optional WTR-DMX DONGLE, while 3-pin and 5-pin DMX inputs and outputs and powerCON TRUE1-compatible connections support easy cascading. HF PWM dimming up to 4.8 kHz prevents flicker in television recordings and avoids dimmer noise. Manual dimming, zoom and focus control allow easy alignment on stage or on exhibition stands. Lamp behaviour can be continuously adjusted from LED to halogen, with linear, square, inverse-square and S-curve dimming options. RDM supports remote configuration, including DMX addressing and channel mode. Predefined factory settings and user settings can be saved and loaded, while a lock function prevents unwanted changes. The suspension bracket can be fitted with the small Omega bracket.

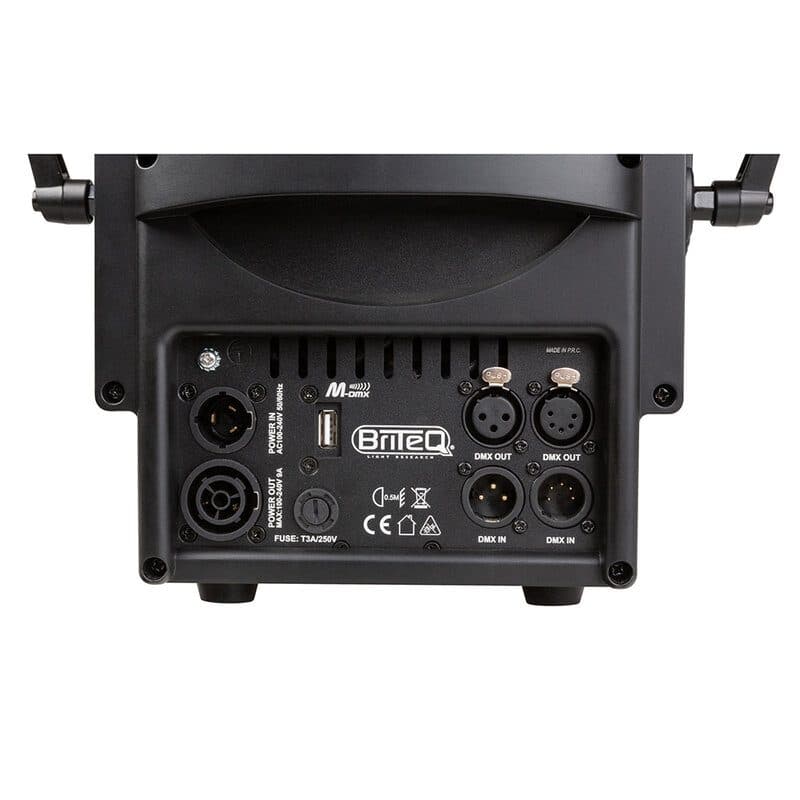

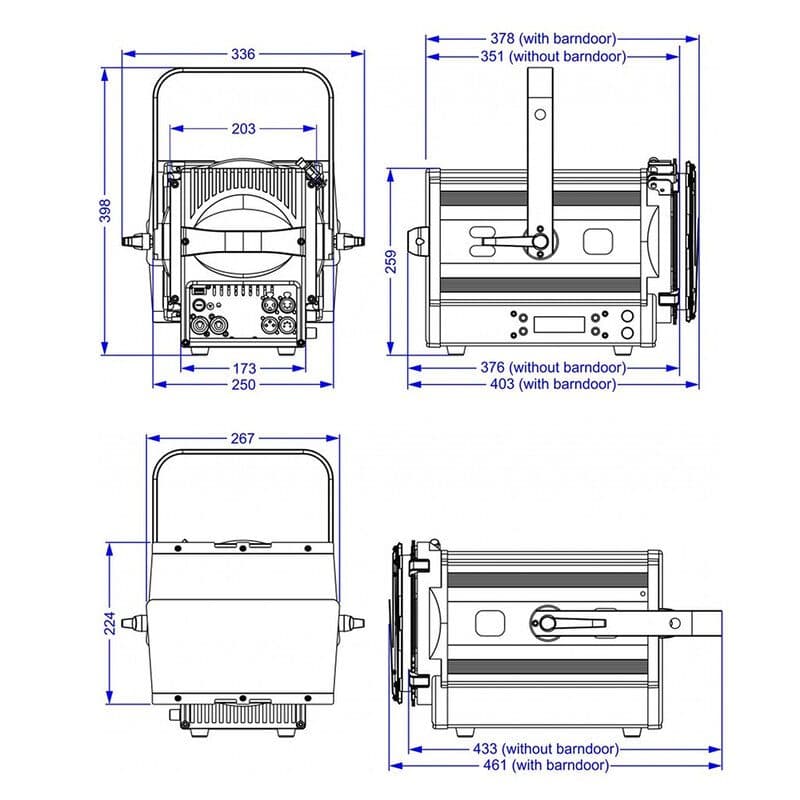

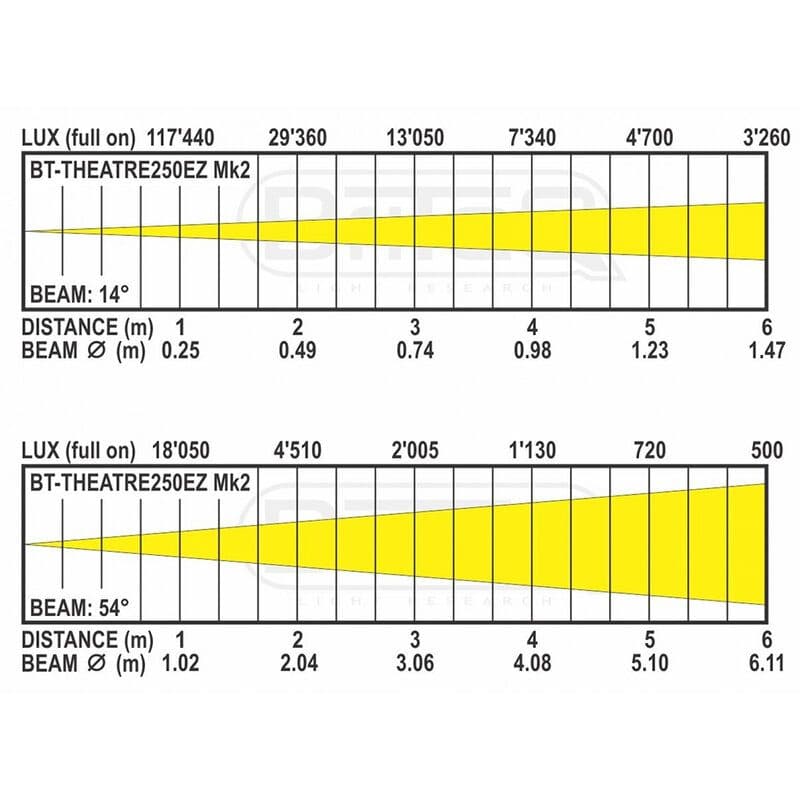

Power input is 100-240 V AC at 50/60 Hz and power consumption is 260 W. The black housing has an LCD display, optional M12 Omega-bracket fixation and an indoor IP rating. Modes include stand-alone fixed, manual, DMX and Master/Slave; protocols are DMX, Wireless DMX and RDM, and the software is upgradeable. DMX channel count ranges from 1 to 9. Illuminance is 4700 lux at 5 m with a 14° beam. The source is COB; colour temperature ranges from 3150 to 3250 K, with a nominal value of 3200 K, CRI is 98 and the colour is warm white. The main function is motorized zoom. Inputs are 3-pin XLR, 5-pin XLR, optional Wireless DMX, USB, RDM and powerCON TRUE1 or compatible; outputs are 3-pin XLR, 5-pin XLR and powerCON TRUE1 or compatible. Dimensions are shown in the drawing and weight is 9.8 kg.
