400W RGBALC LED Fresnel flood light IP65 BTI-THEATRE 6C20 - BRITEQ BEG-B06062

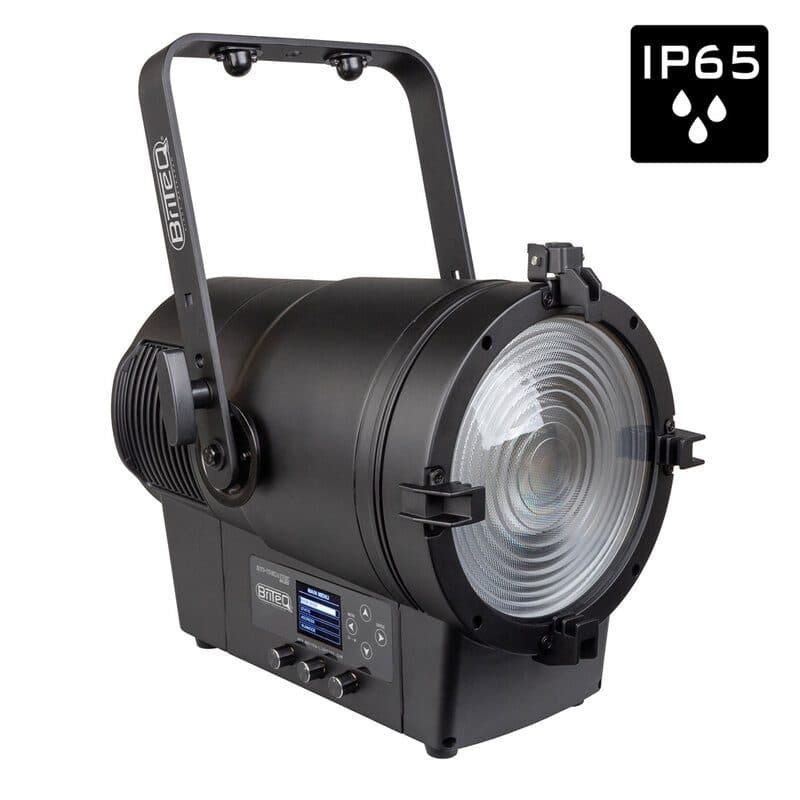

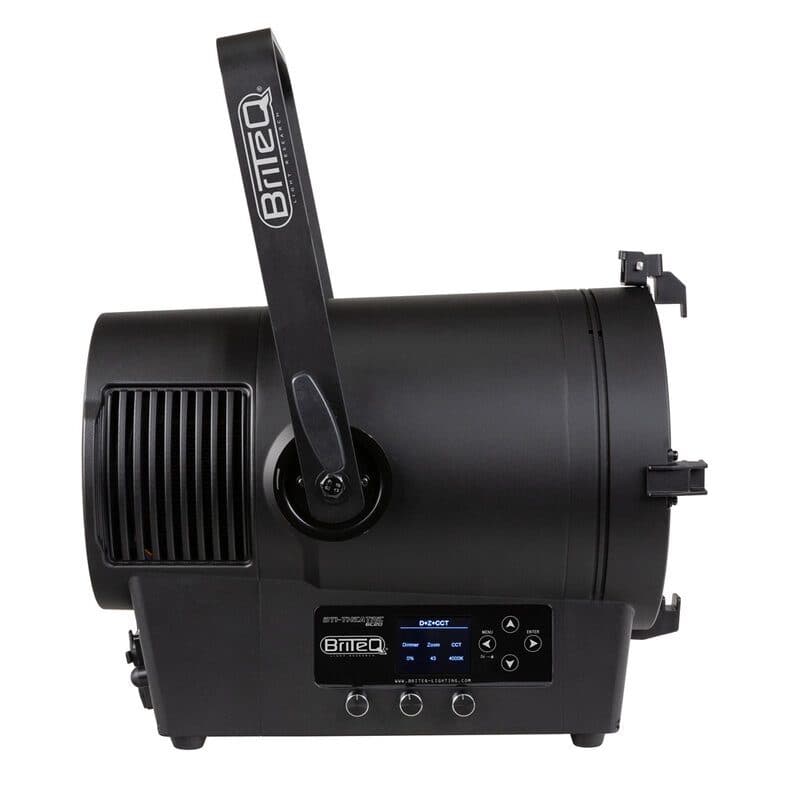

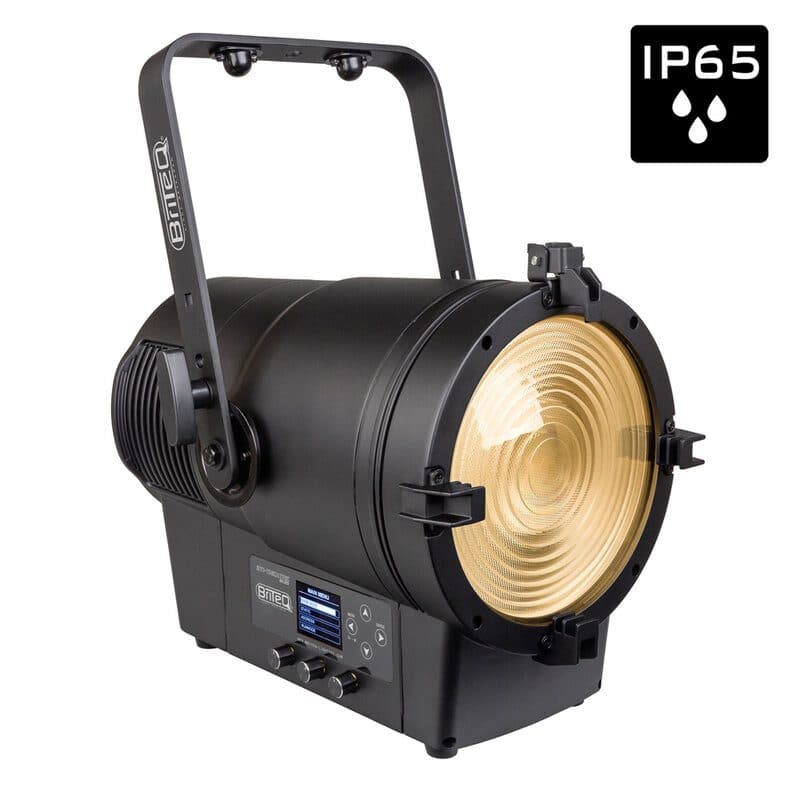

The Briteq BTI-THEATRE 6C20 is a 400 W LED Fresnel spotlight developed as a replacement for traditional 2 kW halogen fixtures. Its 6-colour RGBALC cluster combines red, green, blue, amber, lime and cyan for rich, natural colour rendering. High-CRI white presets range from 1800 to 10,000 K, while the emulation of the amber drift of halogen lamps, from soft to warm, is extremely realistic. Calibration removes colour differences between different batches, and the colour selection uses the same presets as the BT-PROFILE 6C20 and BT-THEATRE HD.

The IP65-rated housing contains an internal motorised zoom without a telescopic extension, providing greater robustness and reliability. It is intended as a replacement for the energy-hungry 2 kW halogen lamps used in cinemas. Operation is very quiet thanks to the low-noise cooling fan and its auto, studio and power settings. The spotlight can run in stand-alone mode without DMX control, or through 8 DMX channel modes. The built-in wireless DMX receiver is compatible with W-DMX and CRMX, while RDM functionality supports remote installation.

Flicker-free television broadcasting is supported by an adjustable high-speed LED refresh rate of up to 25 kHz. The dimmer response can be fast or slow. An LCD display simplifies navigation through the setup menu, and a lock function prevents unwanted setting changes. The 5-pin DXM inputs and outputs are compatible with the BT-XLR5TO3 COMBIKIT, while PowerCON TRUE1 connections allow daisy-chaining.

Specifications:

• LED power: 400 W
• Power input: 100 - 240 V AC, 50/60 Hz
• Optional battery: yes
• Battery operation: yes
• Power consumption: 430 W
• Colour: black
• Display: LCD
• Fixation: optional omega bracket
• IP rating: indoor, outdoor
• Modes: stand-alone, fixed, automatic, manual, DMX
• Protocol: DMX, Wireless DMX, RDM
• Minimum DMX channels: 10
• Maximum DMX channels: 20

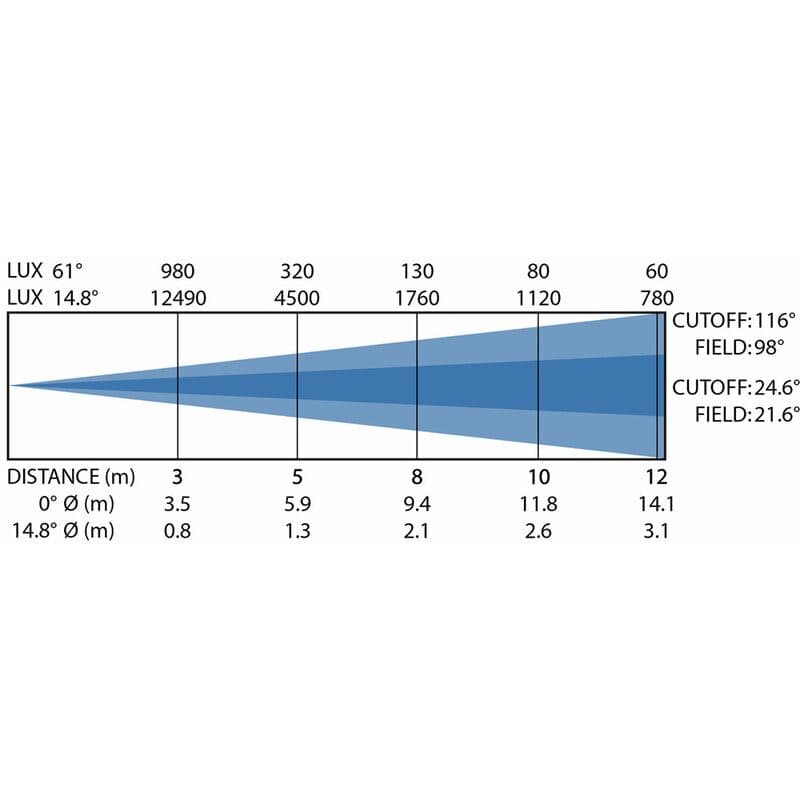

• Illuminance: 4500 lux at 5 m, beam 14.8°
• Maximum lumen output: 8350 lm
• Light source: LED
• Minimum colour temperature: 1800 K
• Maximum colour temperature: 10,000 K
• CRI: 90
• Colours: RGBALC
• Colour mixing: yes
• Function: motorised zoom
• Zoom range: 14.8° - 98°
• Maximum refresh rate: 25 kHz

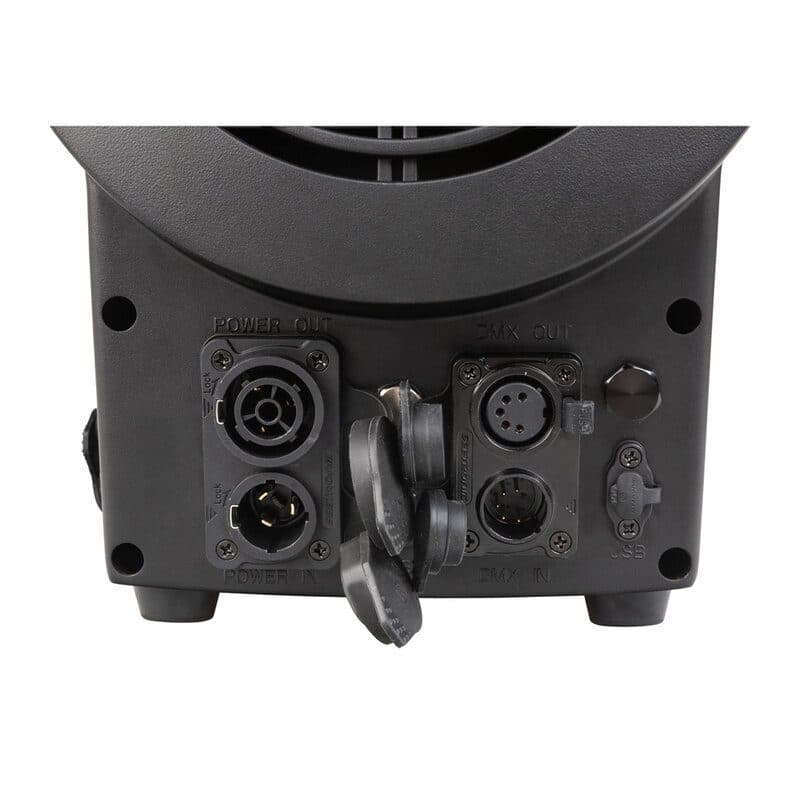

• Input: 5-pin XLR, optional 3-pin XLR, Wireless DMX, RDM, PowerCON TRUE1 or compatible
• Output: 5-pin XLR, optional 3-pin XLR, RDM, PowerCON TRUE1 or compatible

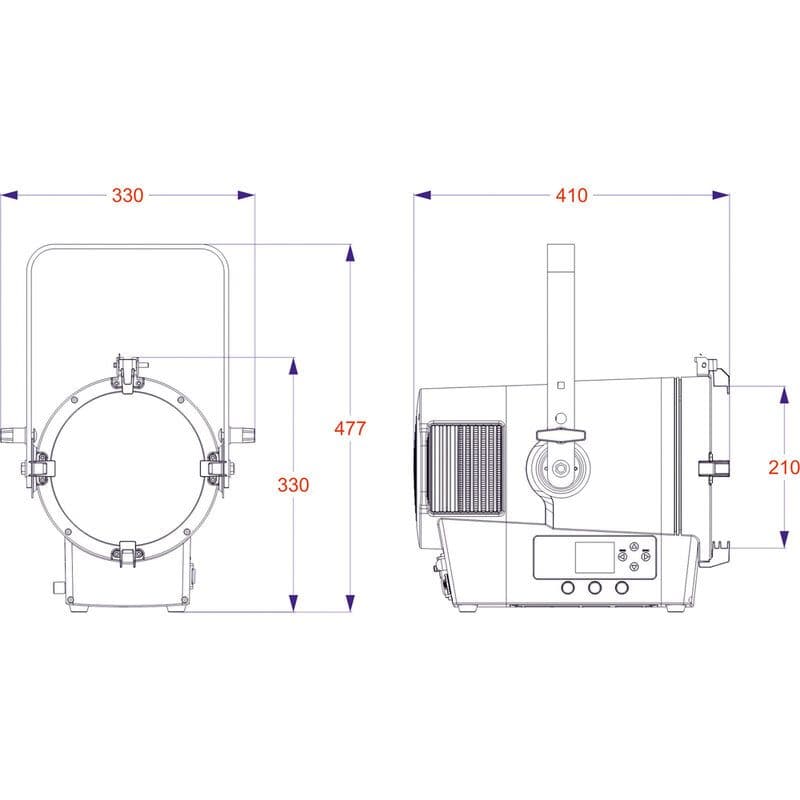

• Dimensions: 47.7 x 33 x 41 cm
• Weight: 10.5 kg
• LED cluster: 6-colour RGBALC, red, green, blue, amber, lime and cyan
• White presets: 1800 to 10,000 K, CRI > 90Ra
• Preset compatibility: BT-PROFILE 6C20 and BT-THEATRE HD

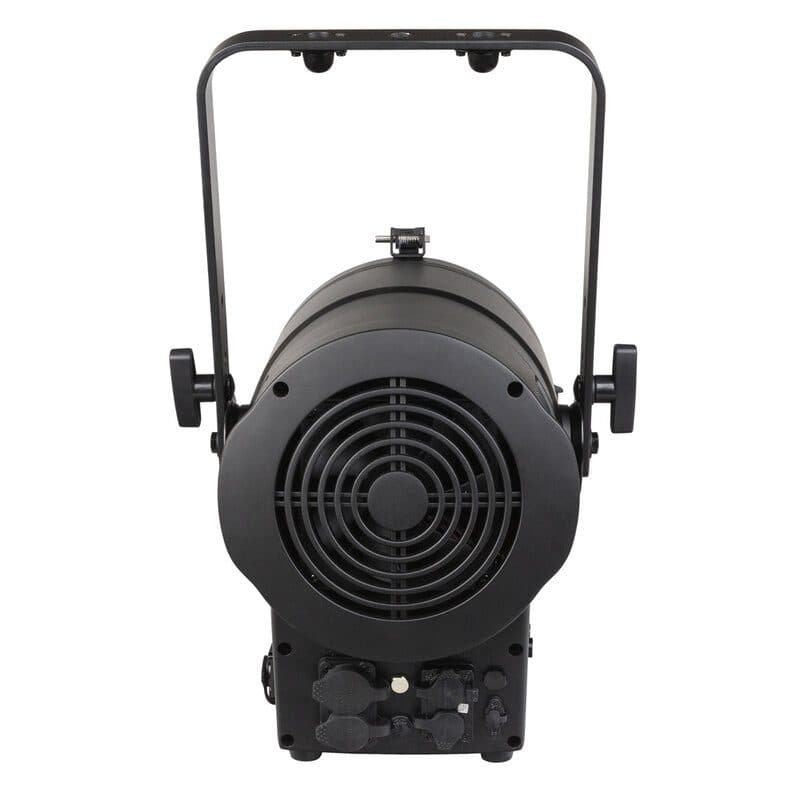

• Fan: low-noise cooling, auto, studio and power settings
• Wireless DMX receiver: built-in, compatible with W-DMX / CRMX
• Daisy-chaining: compatible PowerCON TRUE1 inputs and outputs
• 5-pin DXM inputs and outputs: compatible with BT-XLR5TO3 COMBIKIT
• Additional functions: fast and slow dimmer response, lock function
