Transceiver DMX wireless IP65 Mk2 150 m - Briteq BEG-B05041

Briteq BEG-B05041 is an IP65 outdoor wireless DMX transceiver that can operate as either a transmitter or a receiver. It works with LumenRadio and Wireless Solution wireless DMX systems, provides a safe working distance of up to 150 m and supports RDM when used in receiver mode.

The rugged enclosure suits permanent installations such as architectural lighting as well as stage applications. In transmitter operation it handles CRMX classic and W-DMX G3/G4S; in receiver operation it supports CRMX², CRMX classic and W-DMX G3/G4/G4S/G5. A 5 dBi antenna improves signal reception and transmission on the 2.4 GHz band, which is licence-free worldwide.

Lockable IP65 power connectors, compatible with Neutrik PowerCON TRUE1, provide input and output connections. Seetronic IP65 3-pin XLR connectors, with 5-pin XLR also possible, make daisy-chaining straightforward. The robust black die-cast aluminium weatherproof housing is intended for outdoor use. The unit is fully CE / RED certified.

Specifications:

• Type: IP65 transceiver, transmitter or receiver mode
• Wireless protocols: LumenRadio CRMX and Wireless Solution W-DMX
• Transmitter mode: CRMX classic + W-DMX G3 / G4S
• Receiver mode: CRMX² / CRMX classic + W-DMX G3 / G4 / G4S / G5
• Safe working distance: up to 150 m

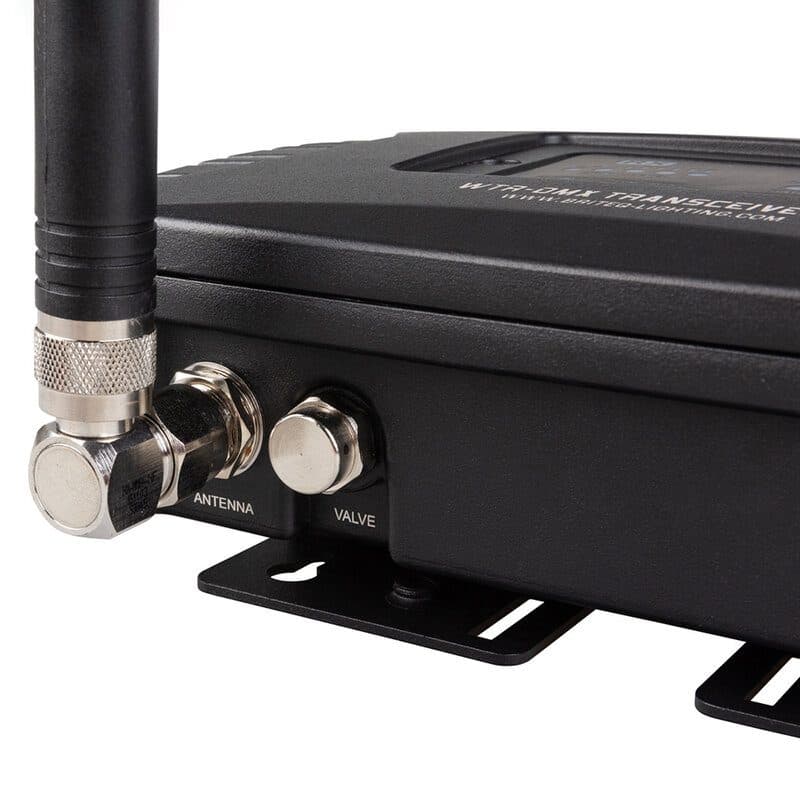

• Antenna: 5 dBi
• Frequency band: 2.4 GHz, worldwide licence-free use
• RDM: compatible in RX mode

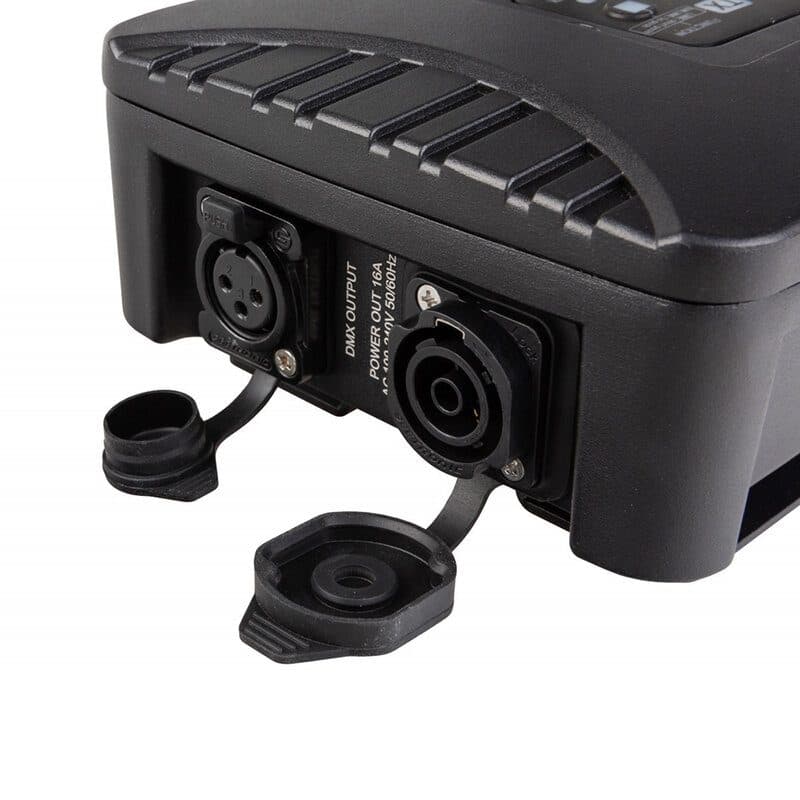

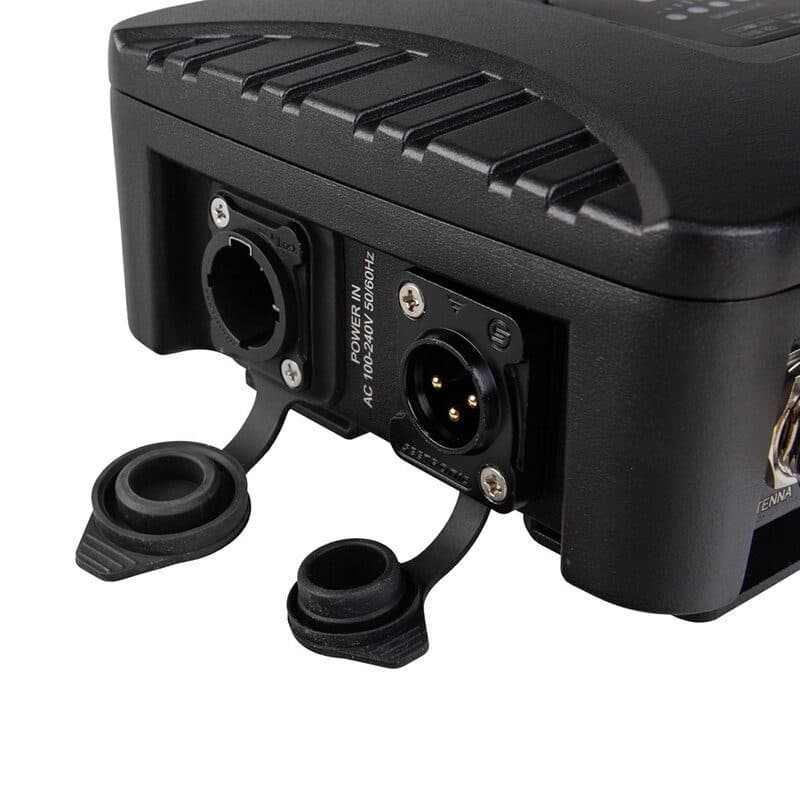

• Power: lockable IP65 connectors, Neutrik PowerCON TRUE1 compatible, IN / OUT
• DMX: Seetronic IP65 3-pin XLR IN / OUT; 5-pin XLR possible
• Connection: daisy-chain capability
• Housing: robust black die-cast aluminium weatherproof housing
• Certifications: fully CE / RED certified
