Three-phase power distributor PD-63A Mk2 GER-NL rack 3U - BRITEQ BEG-B04640

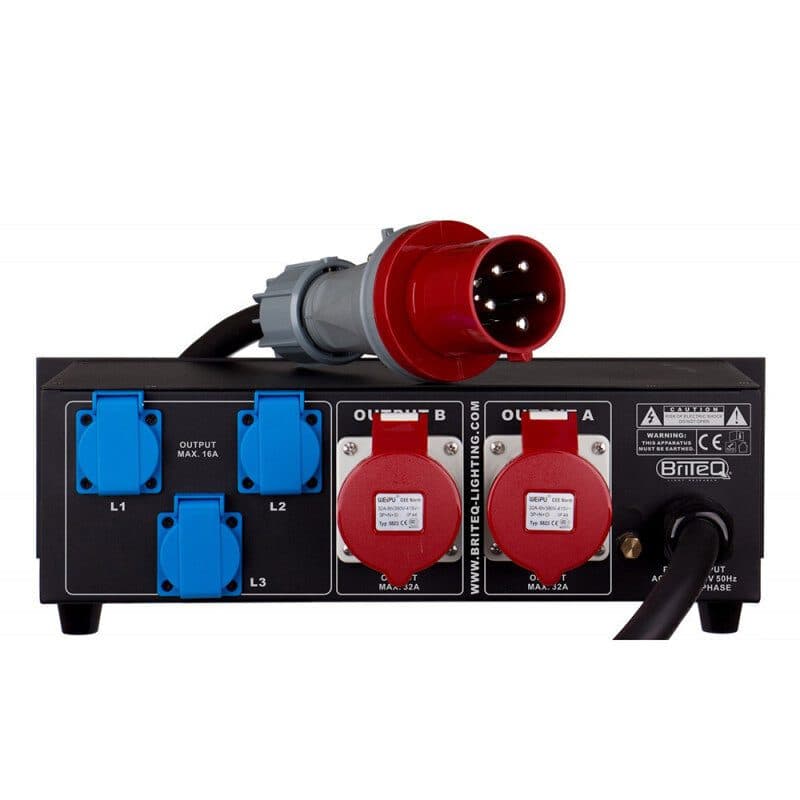

Briteq PD-63A Mk2 is a 3-phase power distributor designed to improve safety in mobile, rental and fixed installations. Its output section provides 2 CEE 32 A outlet sockets with 3P + N + E configuration, rated as 3 x 32 A over 5 wires. Each 32 A output is protected by a 4-pole C32 automatic circuit breaker rated at 32 A, 3P + N. The unit also includes 3 earthed 16 A mains outlet sockets, one socket per phase, with a 2-pole C16 automatic circuit breaker rated at 16 A, 1P + N, for each socket.

The input section uses a 1.5 m mains cable rated for 3 x 63 A and fitted with 5 poles, together with a 63 A CEE inlet plug in 3P + N + E configuration. A 3P + N, 30 mA residual current circuit breaker provides protection against electrical shocks. Each phase has an accurate digital 3-digit voltmeter and an accurate digital 3-digit ampere meter.

The distributor is designed and built according to the highest European and international safety standards, with an extremely robust 19" / 3U metal housing. Power consumption is 160 W. The finish is black, the enclosure is suitable for 19" rack mounting, and the IP rating is indoor. The input is 5-pole CEE, while the outputs are Schuko CEE 7/7 and 5-pole CEE. It is equipped with blue German 16 A schuko sockets compliant with CEE 7/4. Dimensions are 48.2 x 15.2 x 27.4 cm and weight is 11.74 kg.
