63A three-phase power distributor German Schuko 12 x 16A sockets - BRITEQ BEG-B04648

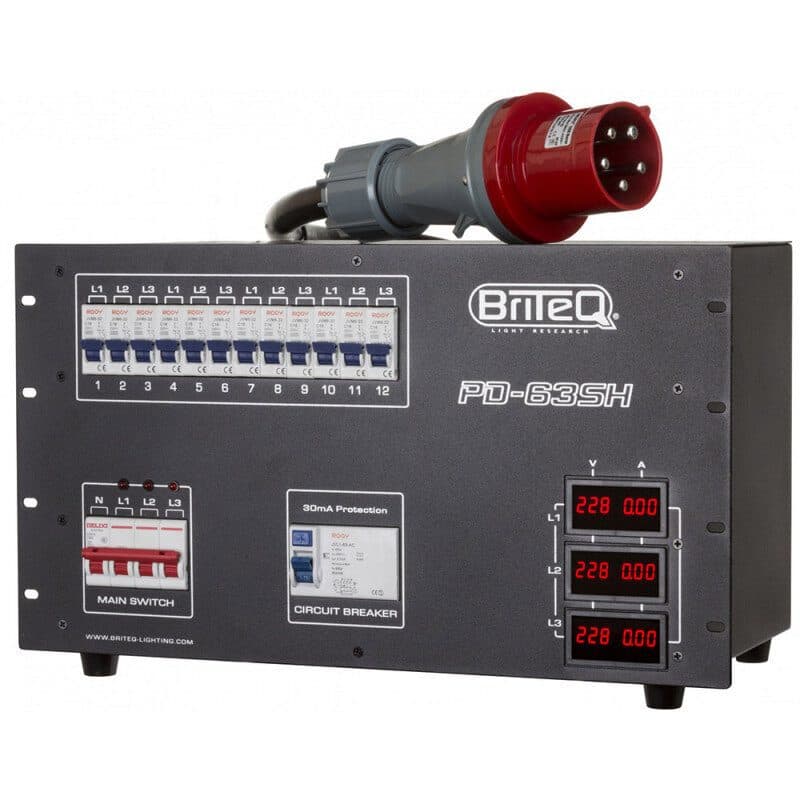

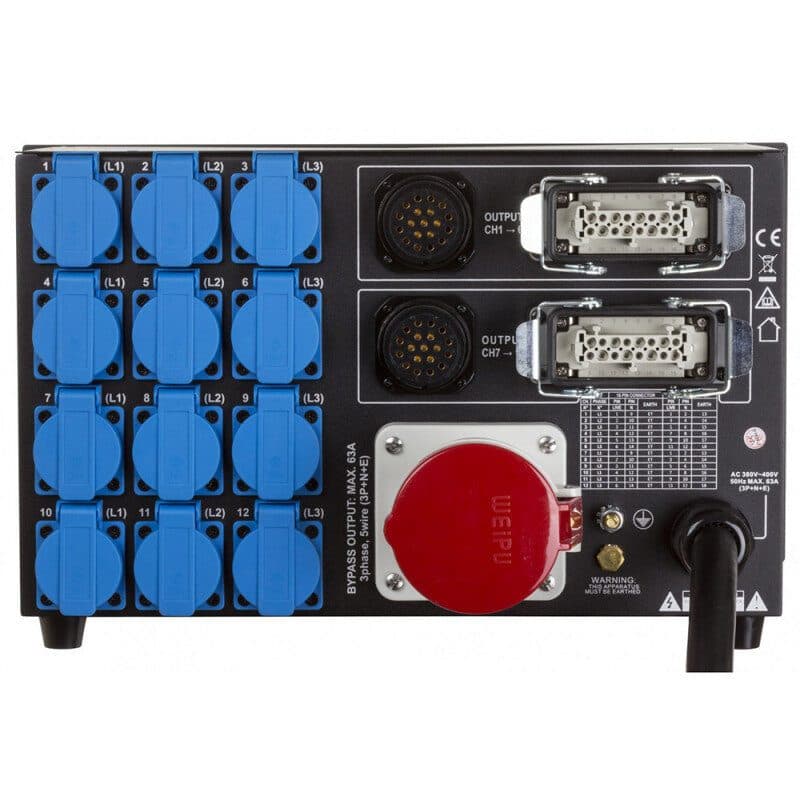

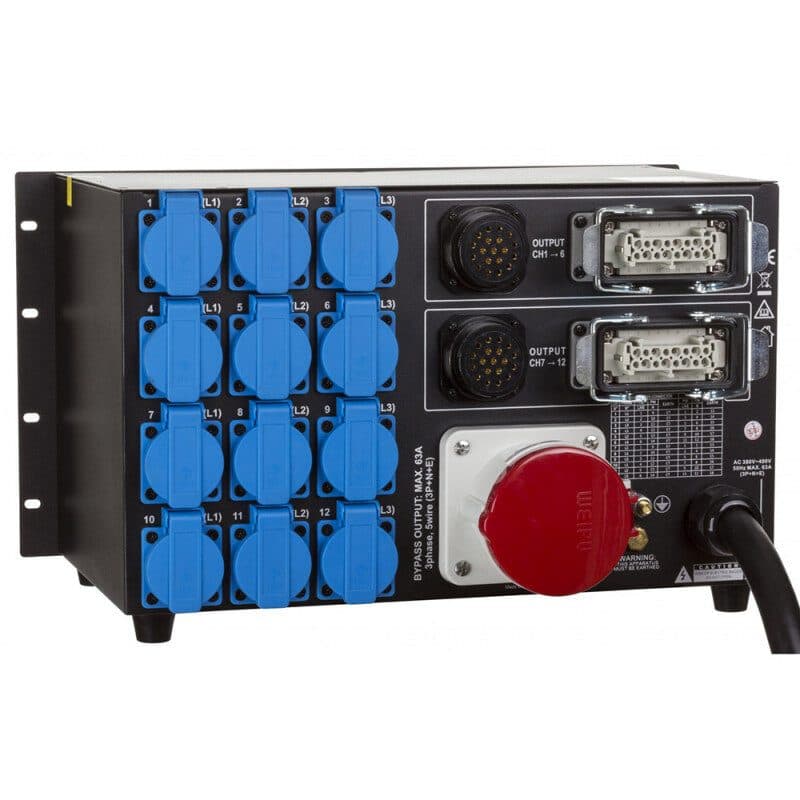

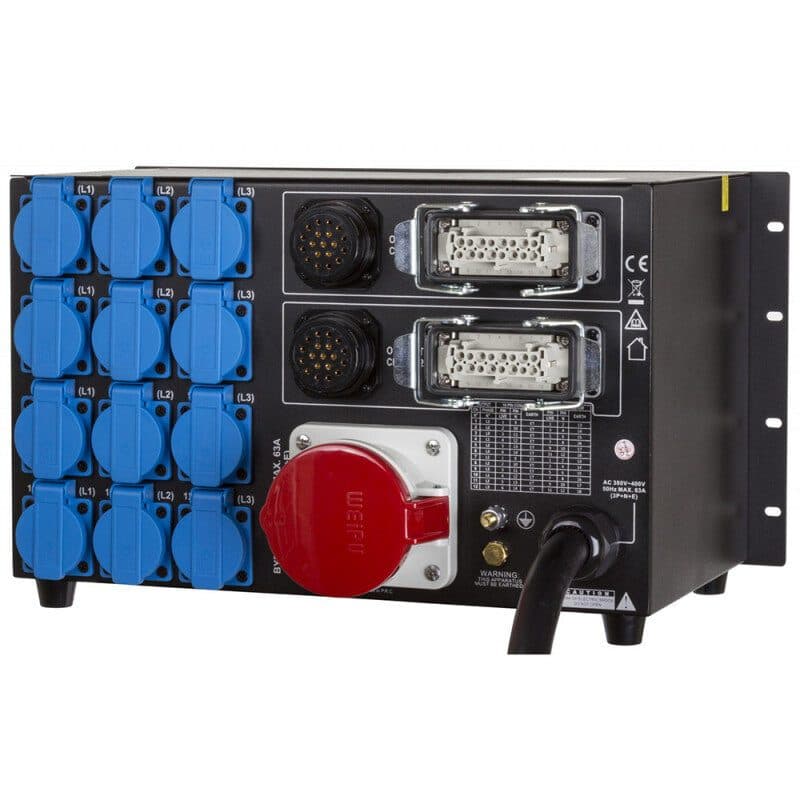

Briteq BEG-B04648 is a three-phase power distributor designed and built to European and international safety standards, with multiple outputs for maximum flexibility. It provides 12 x 16 A mains sockets, 2 x 16-pin rectangular industrial connectors and 2 x 19-pin round industrial connectors. This GERMAN version uses blue 16 A Schuko sockets compliant with the German CEE 7/4 standard. It is intended to improve safety in mobile, rental and fixed installations and is ideal for rental companies.

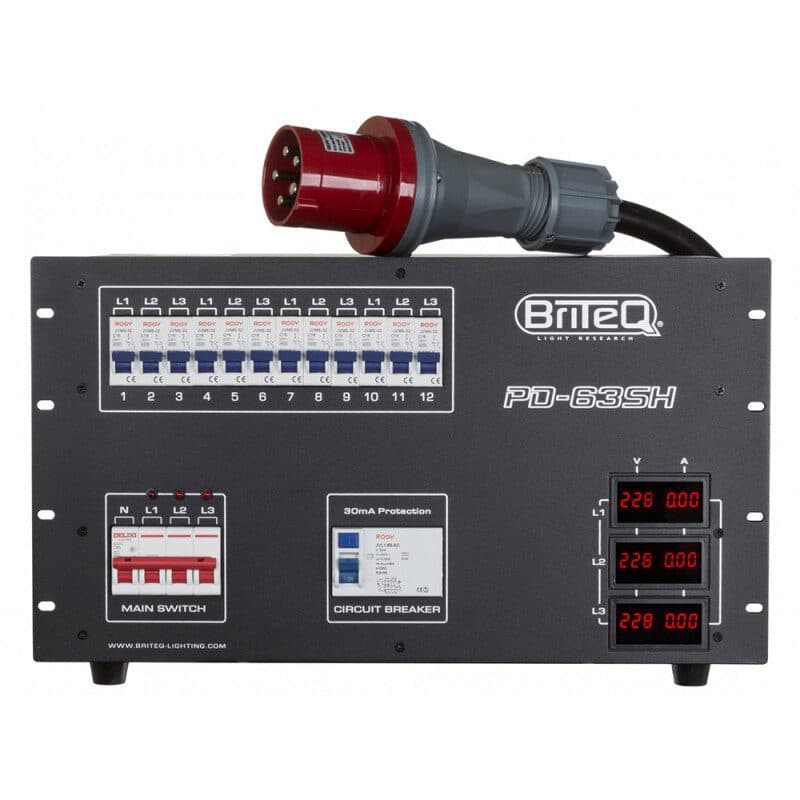

The 12 sockets are earthed and arranged as 4 sockets per phase. The rectangular and round connectors provide outputs for standard wiring. Oversized internal wiring improves reliability. The 4-pole 63 A switch protects all outputs, including the 63 A output to the next unit; in an emergency, it disconnects all 3 phases and neutral. A 4-pole 30 mA residual-current circuit breaker helps prevent electric shock.

Phase indicators make it easy to check whether the 3 phases are available. The unit includes 3-digit digital voltmeters and 3-digit digital ammeters for each phase. Each 16 A output has a bipolar C16 circuit breaker rated 16 A - 1P+N. The 1.5 m mains power cable, with 3 x 63 A and 5 wires, is fitted with a 63 A CEE input socket (3P+N+E). The CEE output socket rated 63 A (3P+N+E), also specified as 3 x 63 A and 5 wires, provides bypass operation. The assembly is housed in an extremely robust 19”/6U metal housing.

Specifications:

• Type: three-phase power distributor
• Mains sockets: 12 x 16 A
• Sockets per phase: 4

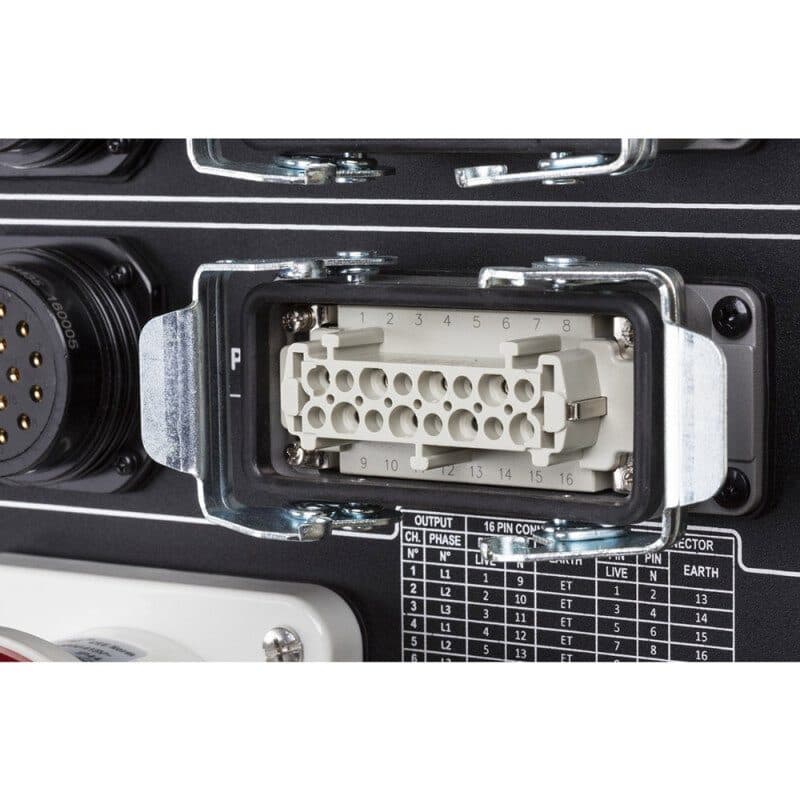

• Rectangular industrial connectors: 2 x 16-pin

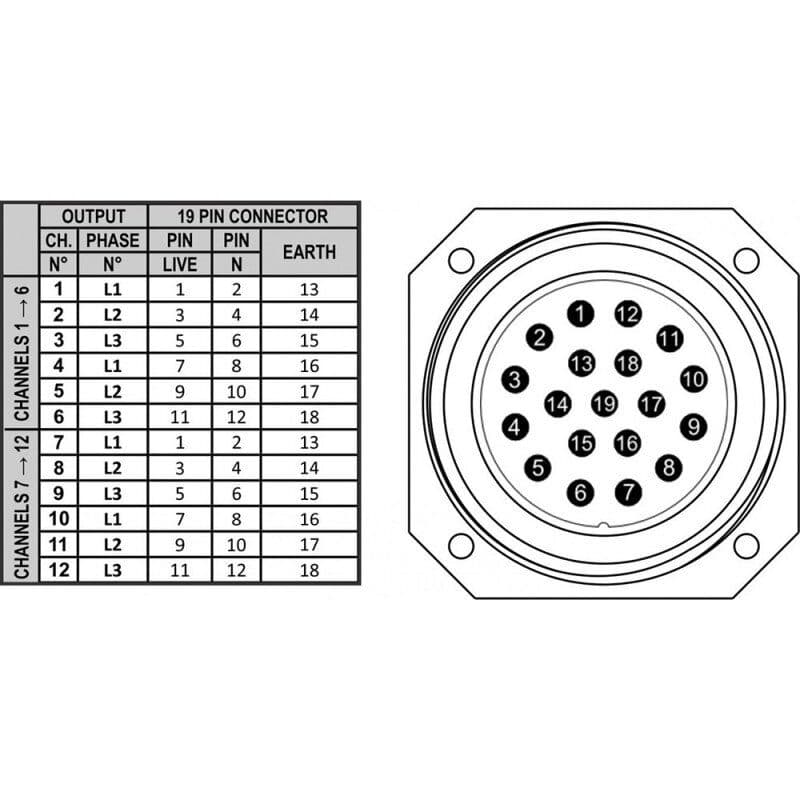

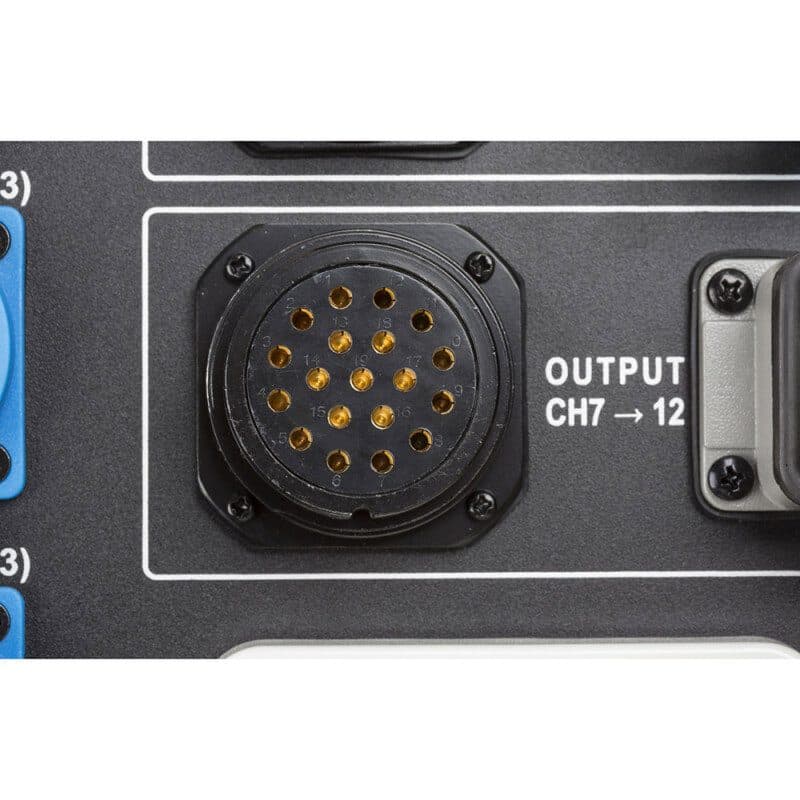

• Round industrial connectors: 2 x 19-pin
• Version: GERMAN

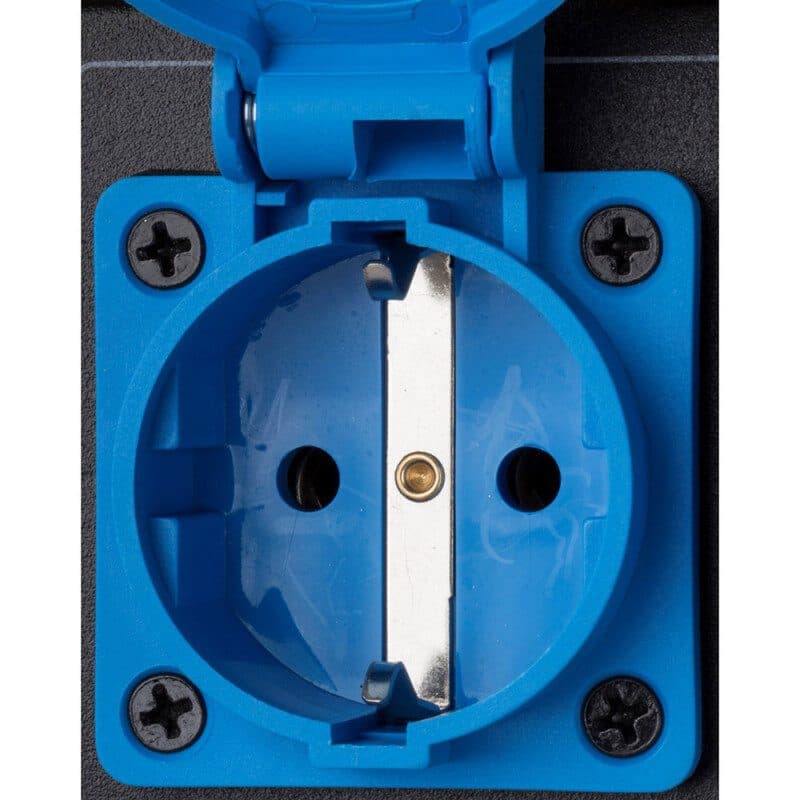

• Sockets: blue 16 A Schuko, CEE 7/4
• Internal wiring: oversized
• Main switch: 4-pole, 63 A
• Main protection: all outputs and 63 A output to the next unit
• Emergency disconnection: 3 phases and neutral
• Residual-current circuit breaker: 4-pole, 30 mA
• Indicators: 3-phase availability
• Voltmeters: 3-digit digital meters per phase
• Ammeters: 3-digit digital meters per phase
• Circuit breakers: C16, 16 A - 1P+N, 2-pole, one for each 16 A output
• Mains power cable: 1.5 m, 3 x 63 A, 5 wires
• Input socket: 63 A CEE, 3P+N+E

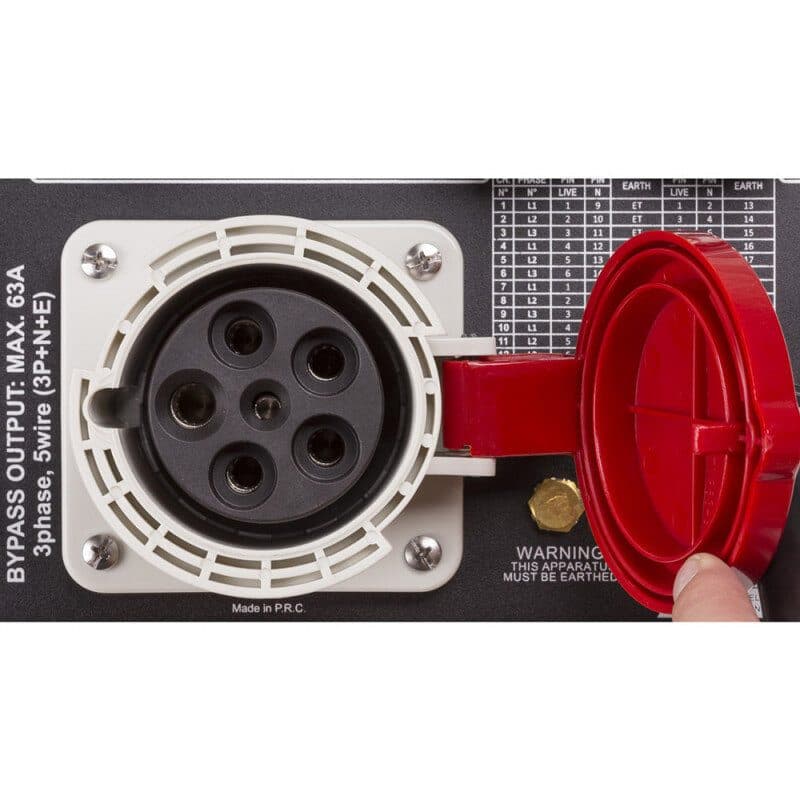

• Output socket: 63 A CEE, 3P+N+E, 3 x 63 A, 5 wires
• Output function: bypass
• Housing: metal, 19”/6U
• Power input: 400 V AC, 50 Hz, 3P+N+E
• Colour: black
• Display: LED
• Mounting: 19” rack mountable
• Rack units: 6U
• IP rating: indoor
• Modes: fixed stand-alone
• Input: 5-pole CEE
• Outputs: Schuko CEE 7/7, 5-pole CEE, 19-pin Socapex, 16-pin Harting
• Dimensions: 48.2 x 26.6 x 32.6 cm
• Weight: 11.74 kg
