Three-phase 63A power distributor FRA-BEL 12 outlets 16A - BRITEQ BEG-B04647

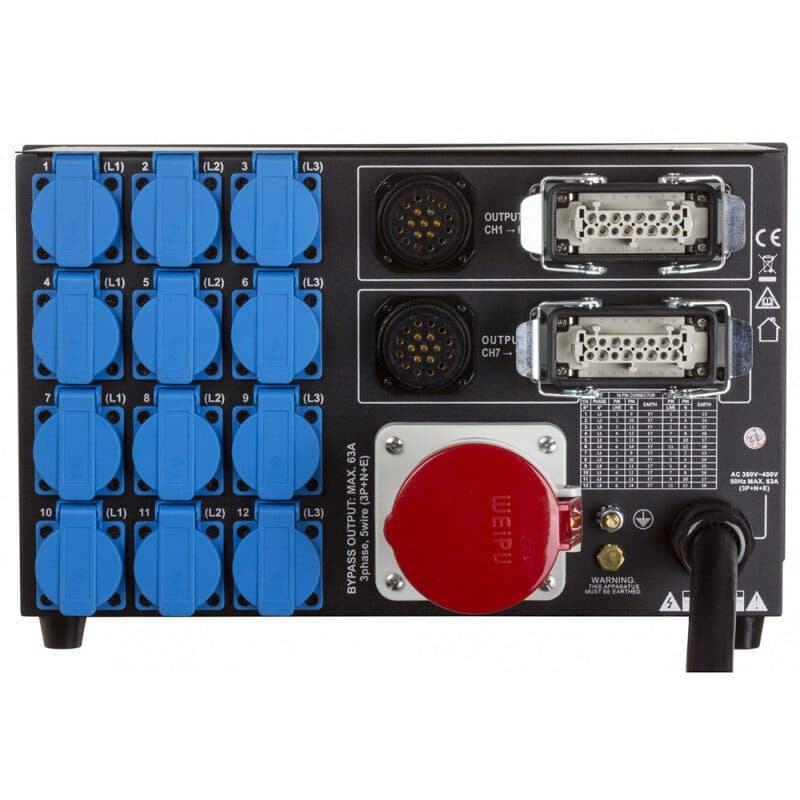

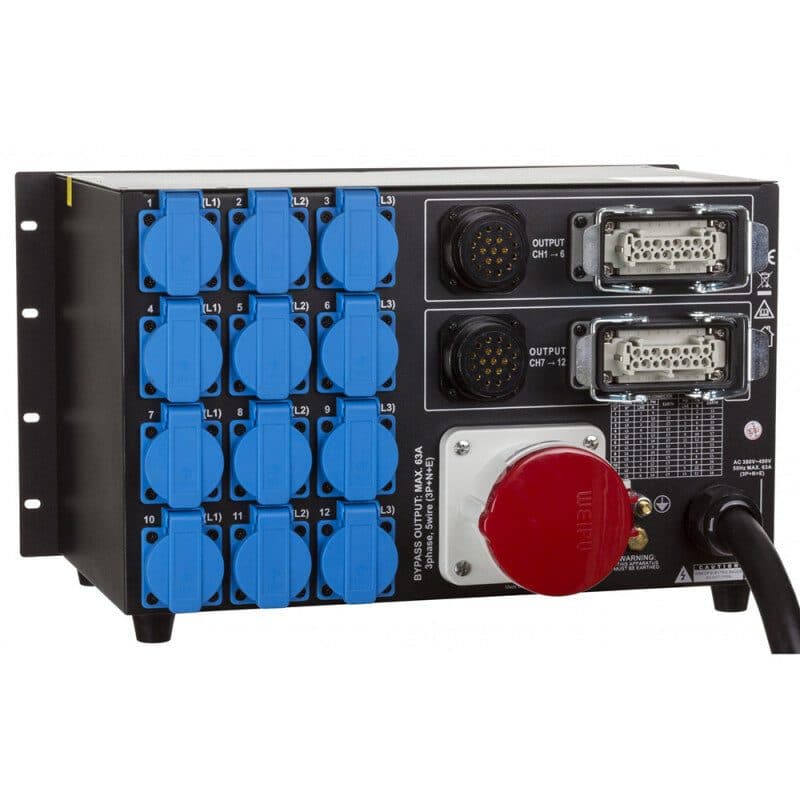

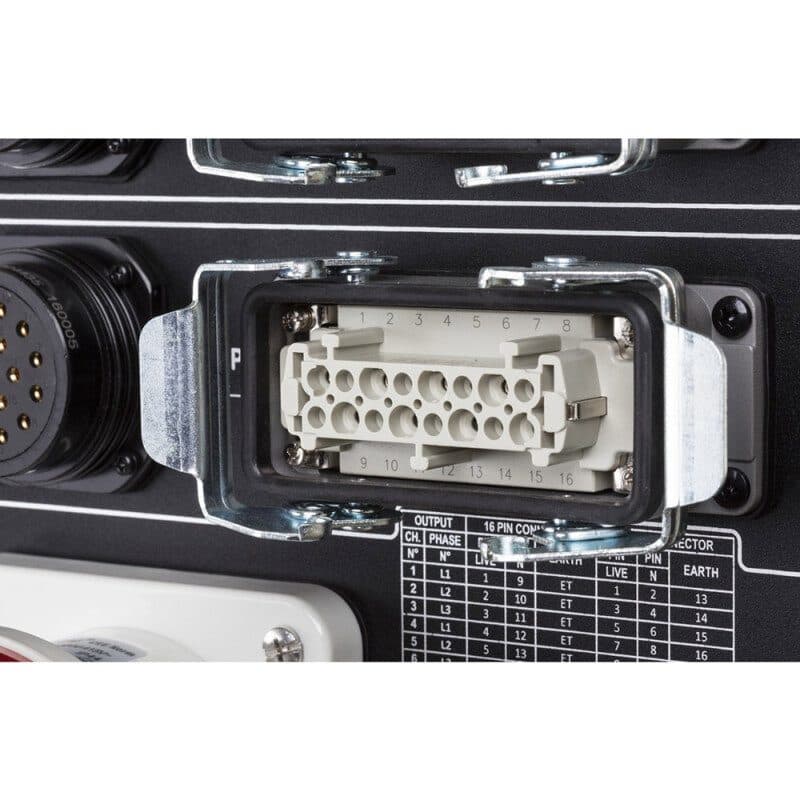

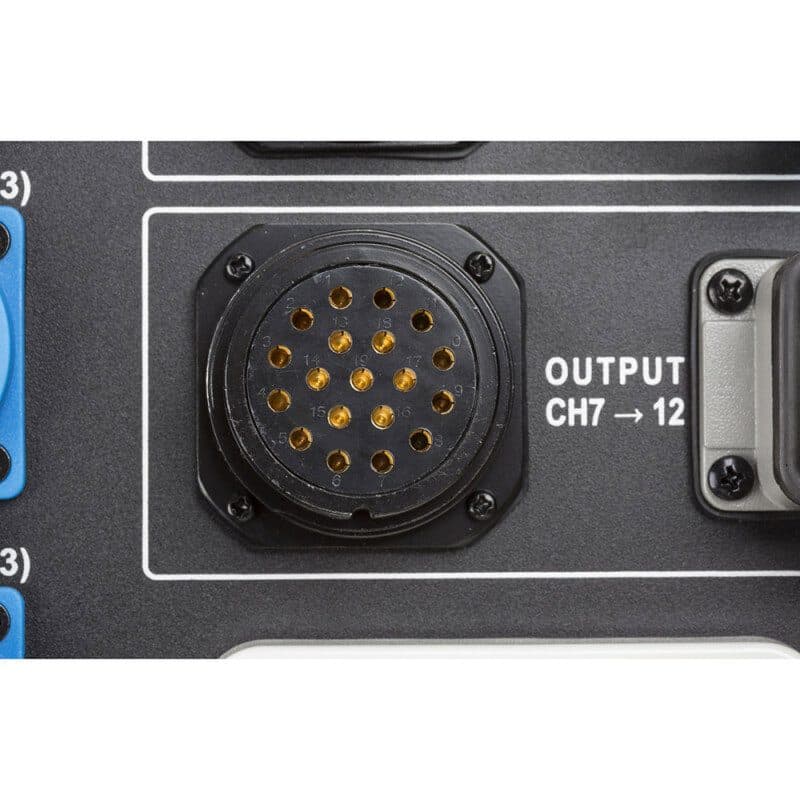

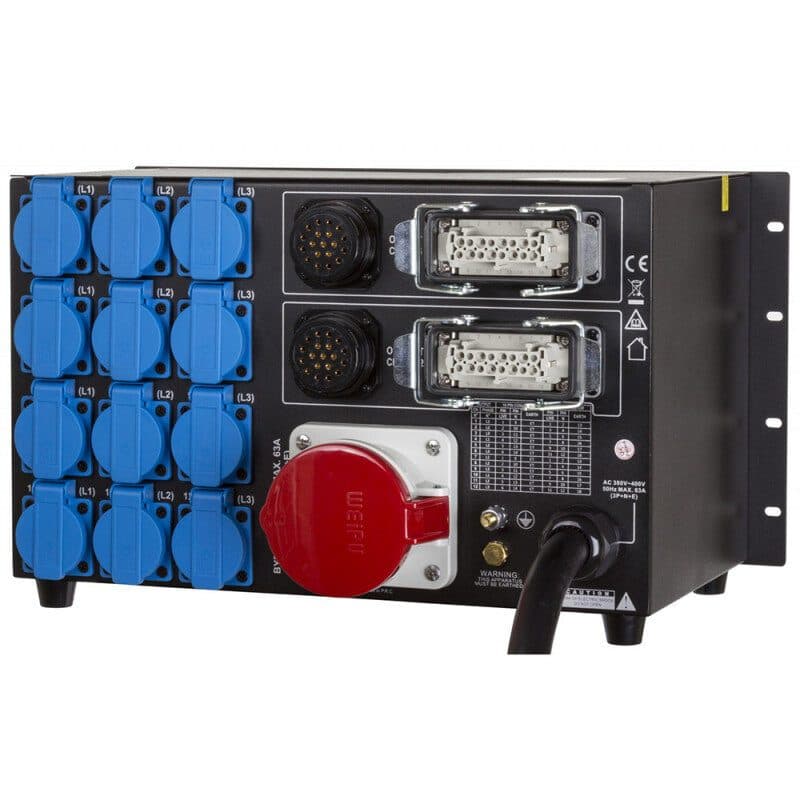

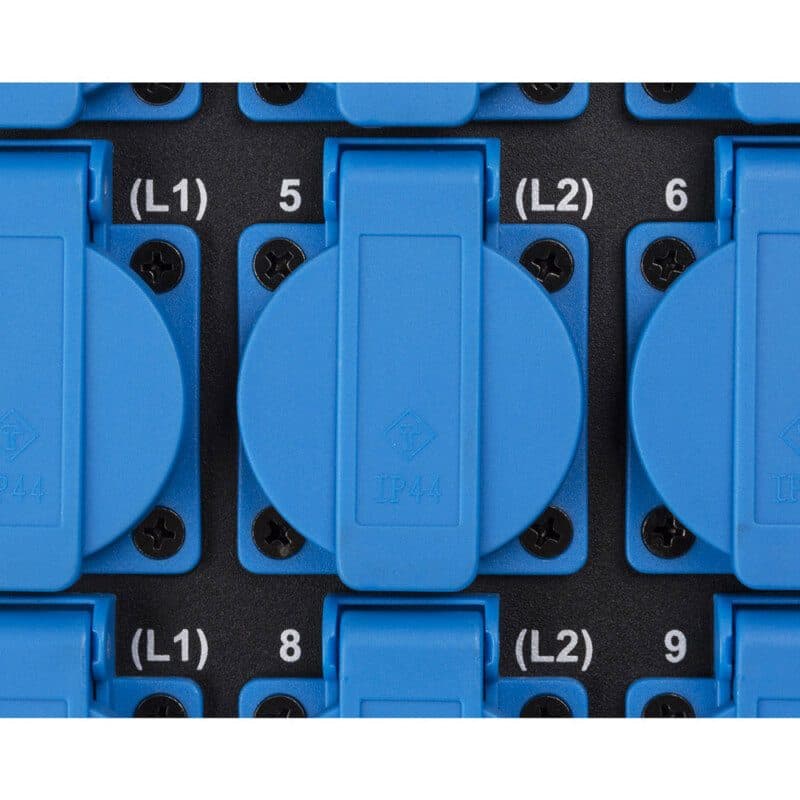

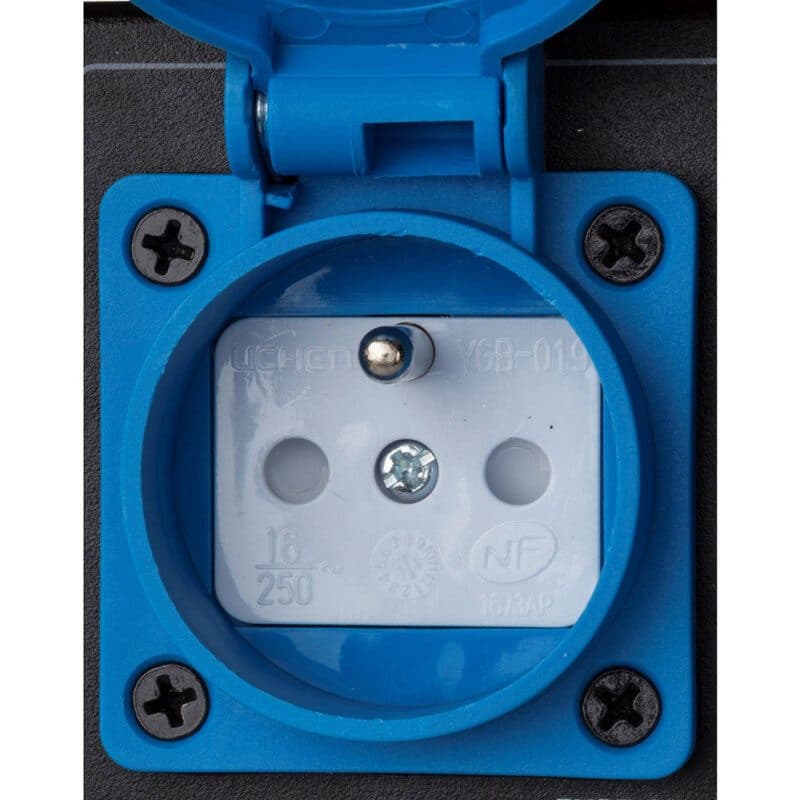

The Briteq BEG-B04647 is a three-phase power distributor designed and manufactured according to high European and international safety standards. The FRA-BEL version features blue 16 A mains sockets built to the French/Belgian standard: there are 12 earthed sockets, with 4 assigned to each phase, together with 2 rectangular 16-pin industrial connectors and 2 round 19-pin industrial connectors. Both connector types provide outputs for use with standard wiring.

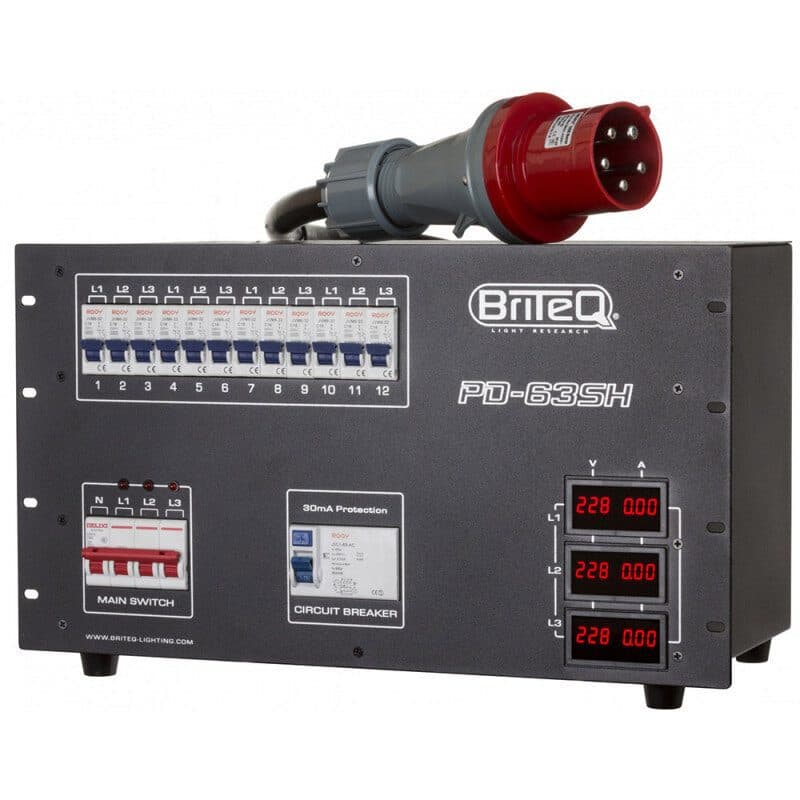

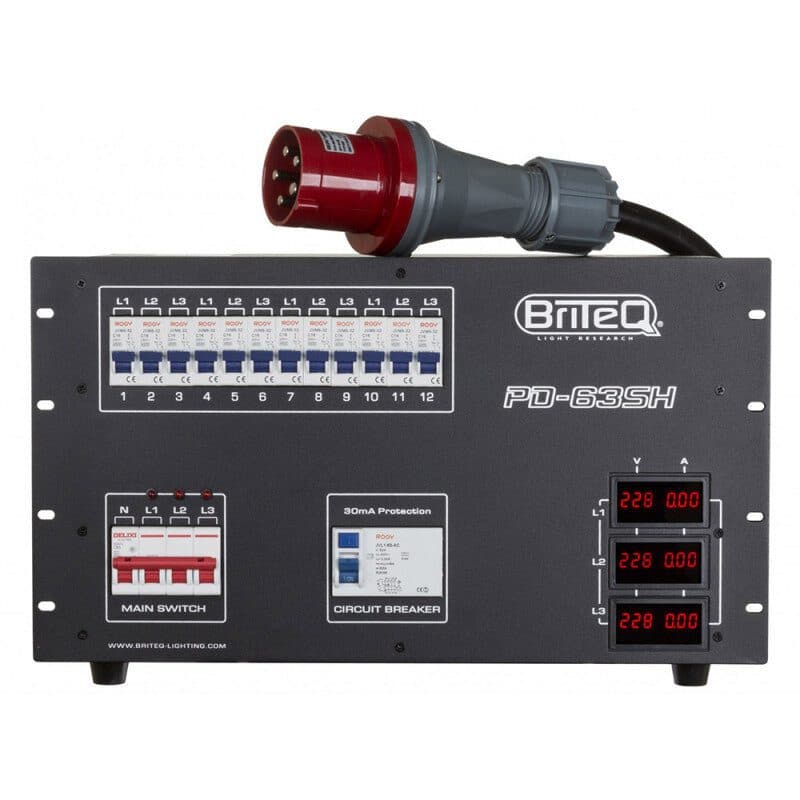

Its range of outputs is suited to rental companies and improves safety in mobile, rental and fixed installations. Oversized internal wiring supports reliable operation. A 4-pole 63 A switch protects every output, including the 63 A connection to the next unit; during an emergency it disconnects all 3 phases and neutral. A 4-pole 30 mA residual-current circuit breaker helps prevent electric shock. Phase indicators show whether all 3 phases are available. Each phase is monitored by a 3-digit digital voltmeter and a 3-digit digital ammeter. Every 16 A socket output is protected by a C16 2-pole circuit breaker rated at 16 A, 1P+N.

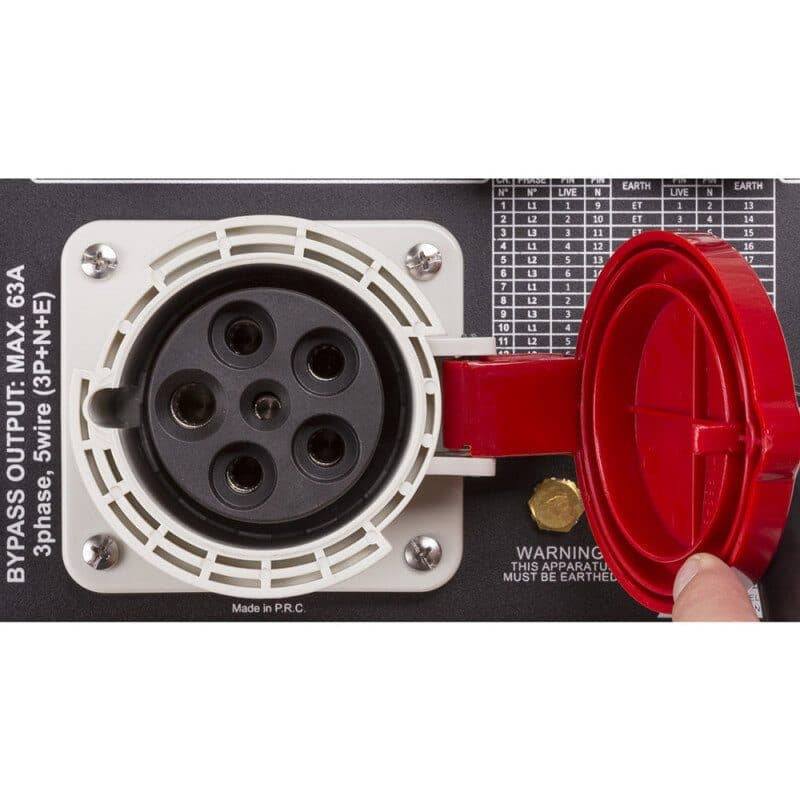

The 1.5 m mains cable uses 3 x 63 A and 5 wires and is fitted with a 63 A CEE input socket, 3P+N+E. A CEE output socket with a 3P+N+E configuration, 3 x 63 A and 5 wires provides bypass connection. The assembly is housed in an extremely robust 19-inch/6U metal enclosure.

Specifications:

• Power input: 400 V AC, 50 Hz, 3P+N+E
• Colour: black
• Display: LED
• Fixation: 19-inch rack mountable
• Rack height: 6U
• IP rating: indoor
• Mode: stand-alone fixed
• Input: 5-pole CEE
• Output: Schuko CEE 7/7, 5-pole CEE, Socapex 19-pin, Harting 16-pin
• Dimensions: 48.2 x 26.6 x 32.6 cm
• Weight: 11.74 kg
