OLED electronic viewfinder 1920x1080 USB-C - Blackmagic Design BLM-CINEURSAB/EVF

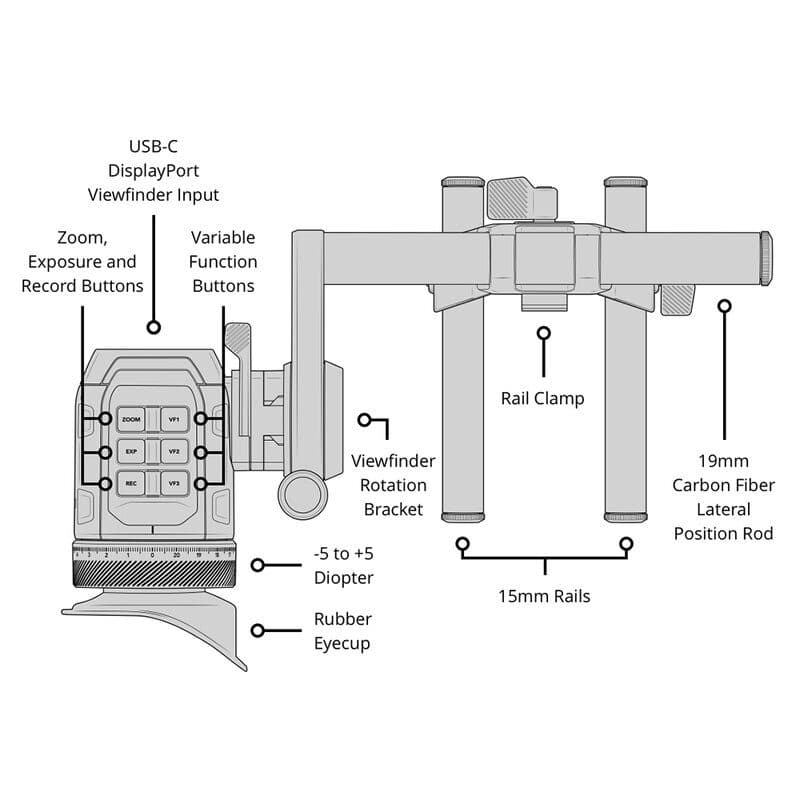

High quality OLED color electronic viewfinder (EVF), 1920 x 1080 pixels, with integrated proximity sensor and precision diopter adjustment. An integrated focus chart ensures perfect adjustment of the viewfinder focus. You can also view extremely important information, such as framing guides. The URSA Cine EVF is extremely easy to connect as it simply mounts to the viewfinder bracket and connects to the camera using a single USB-C cable. The sight can be positioned multiple ways (also includes an extension arm for placing it on a dolly or rack head) and comes with 2 different types of eyepieces.

Technical characteristics

Features

• Display resolution: full HD 1920 x 1080 pixel
• Frame rates: up to 60 fps
• Display type: OLED
• Display pixels: 6.22 Mpixel
• Color precision: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084
• Focus: 4 element diopter
• Diopter range: -5 to +5
• Controls: record button, exposure button, zoom button, 3 x assignable VF buttons
• Overlays: built in overlay display processor and top mounted buttons
• Tally: LED Tally light
• Eyepiece: can be tilted vertically and extended for left or right eye use
• Metadata support: displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras
• Mounting options: fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports

Operating systems

• Mac icon, Mac 13.0 Ventura,Mac 14.0 Sonoma or later

Power requirements

• Powered over USB-C

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C

Relative humidity

0% to 90% non-condensing

What's in the box

• Blackmagic URSA Cine EVF
• Blackmagic URSA Cine EVF rotating bracket with 19 mm carbon fibre rod
• Blackmagic URSA Cine EVF bracket rod mount
• Blackmagic URSA Cine EVF extension
• 2 short carbon fibre 15 mm rods
• 1 short right angle to right angle USB viewfinder cable
• 1 short right angle to straight USB viewfinder cable
• 1 long right angle to straight USB viewfinder cable
• Rubber eyecup
• Fabric eye chamois
• Blackmagic sticker
• Welcome wallet with QR code for software download
