Analogue to SDI converter 2 outputs - Blackmagic Design BLM-CONVMAAS2

Name: Analogue to SDI converter 2 outputs - Blackmagic Design BLM-CONVMAAS2
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVMAAS2
Price: 261.04 EUR
Availability: OutOfStock

Out of stockNew

SKU BLM-CONVMAAS2EAN 9338716001341

Price for 1 unit

261,04 €

213,97 € + IVA

Analog to SDI converter with embedded audio

Description

The Mini Converter Analog to SDI is a compact device designed to convert analog video signals to SDI with embedded audio, offering a versatile, high-quality solution for those connecting analog equipment to professional digital systems. This converter can handle NTSC, PAL, S-Video, and SD / HD component analog video inputs, integrating audio from balanced analog or AES/EBU digital inputs. It is designed to make devices such as Betacam SP, VHS, set-top boxes, game consoles, and HDV camcorders compatible with modern SDI-based workflows, ensuring stable and professional output. It supports two simultaneous SDI outputs and automatically detects SD and HD formats, with multirate compatibility and reclocking to maintain signal quality. The converter operates with 4:2:2 video sampling and 48 kHz, 24-bit audio. Color is managed in the YUV space with 4:2:2 precision, ensuring color fidelity and stability. Configuration and updates are done via high-speed USB 2.0, with software available for Mac and Windows. Operationally, the Mini Converter Analog to SDI runs on a universal 12 V power supply and includes international adapters, consuming approximately 6.5 W.

Technical characteristics

Connections

SDI video outputs: 2 x SDI video outputs
Analog video inputs: NTSC, PAL, S-Video and component SD/HD input
Analog audio inputs: 2 channels of balanced analog audio
Digital audio inputs: 2 channels of balanced AES/EBU audio
Multi rate support: auto detection of SD or HD
Updates and configuration: via USB 2.0 high speed, 480 Mb/s
Reclocking: yes

Standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60

SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
SDI video sampling: 4:2:2
SDI audio sampling: television standard sample rate of 48 kHz and 24 bit
SDI color precision: 4:2:2
SDI color space: YUV
SDI auto switching: automatically follows format of analog input
Analog color space: YUV
Analog color precision: 4:2:2

Software

Software control: Mac and Windows software upgrade via USB
Internal software upgrade: via included updater application

Power requirements

Power supply: +12 V universal power supply included with international socket adapters
Power consumption: 6.5 W
Operational voltage range: 12 to 31 V_DC

Settings control

Mini switches or USB software

Operating systems

Mac: 10.15 Catalina, 11.1 Big Sur or later
Windows: 10, 64-bit

Environmental specifications

Operating temperature: 0 to 40 °C
Storage temperature: -20 to 45 °C
Relative humidity: 0 to 90 % non-condensing

Physical specifications

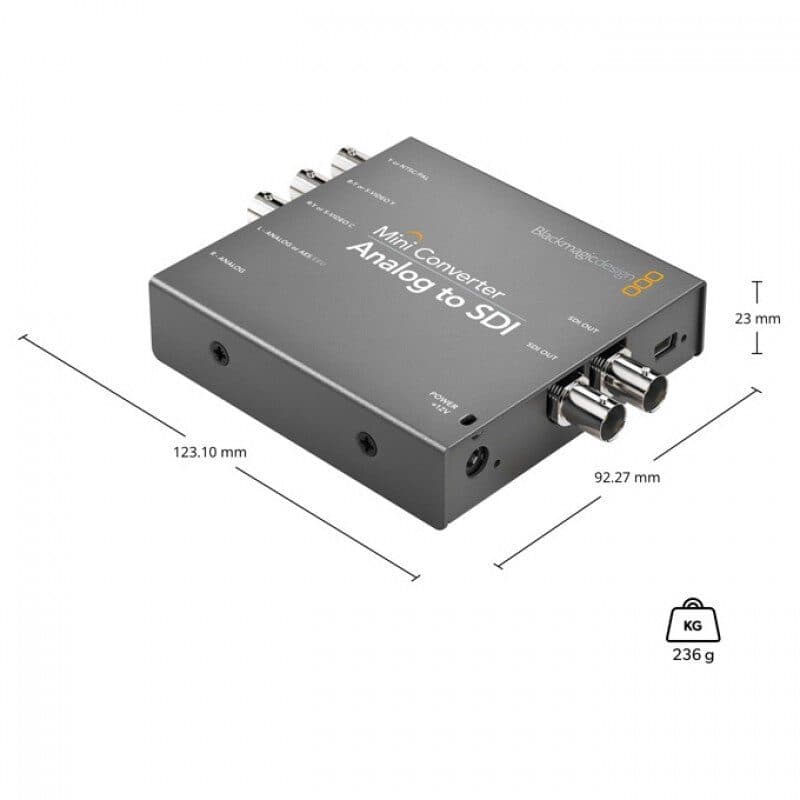

Dimensions: 12.3 x 9.2 x 2.3 cm
Weight: 0.3 kg

What's included

Mini Converter Analog to SDI:
12 V_AC adapter with international socket adapters for all countries

Specifications

Analog audio inputs	2 channels of balanced analog audio
Analog color precision	4:2:2
Analog color space	YUV
Analog video inputs	NTSC, PAL, S-Video and component SD/HD input
Digital audio inputs	2 channels of balanced AES/EBU audio
Dimensions	12.3 x 9.2 x 2.3 cm
HD video standards	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60
Internal software upgrade	via included updater application
Mac	10.15 Catalina, 11.1 Big Sur or later
Multi rate support	auto detection of SD or HD
Operating temperature	0 to 40 °C
Operational voltage range	12 to 31 V DC
Power consumption	6.5 W
Power supply	+12 V universal power supply included with international socket adapters
Reclocking	yes
Relative humidity	0 to 90 % non-condensing
SD video standards	525i 59.94 NTSC, 625i 50 PAL
SDI audio sampling	television standard sample rate of 48 kHz and 24 bit
SDI auto switching	automatically follows format of analog input
SDI color precision	4:2:2
SDI color space	YUV
SDI compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
SDI video outputs	2 x SDI video outputs
SDI video sampling	4:2:2
Software control	Mac and Windows software upgrade via USB
Storage temperature	-20 to 45 °C
Updates and configuration	via USB 2.0 high speed, 480 Mb/s
Weight	0.3 kg
Windows	10, 64-bit
