BLACKMAGIC DESIGN

Teranex Mini SDI to HDMI 12G converter - Blackmagic Design BLM-CONVNTRM/AA/SDIH

Name: Teranex Mini SDI to HDMI 12G converter - Blackmagic Design BLM-CONVNTRM/AA/SDIH
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVNTRM/AA/SDIH
Price: 619.15 EUR
Availability: OutOfStock

Out of stockNew

SKU BLM-CONVNTRM/AA/SDIHEAN 9338716003246

Price for 1 unit

619,15 €

507,50 € + IVA

12G-SDI to HDMI converter up to Ultra HD with analog or AES/EBU audio

Description

Blackmagic Design's Teranex Mini SDI to HDMI 12G lets you convert 12G-SDI signals to HDMI. All video formats are supported, including SD, HD, 6G, and 12G-SDI. When working with an HDMI monitor, the converter automatically selects the best format it can support. Teranex Mini supports audio de-embedding in balanced analog or AES/EBU formats, as well as Time Code output. It features instant locking on the HDMI output and a 33-point LUT. The ideal solution for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

Technical characteristics

Connections

SDI video inputs: 4 x 12G-SDI HD / 2K / 4K / 8K auto switching
SDI video outputs: 1 x 12G-SDI loop output
HDMI video outputs: 1 x HDMI 2.0 type A connector with support for 2160p 60
Analog audio outputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code output
Digital audio outputs: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output
Embedded audio support: 8 channels
Multi rate support: 270MB, 1.5G, 3G, 6G and 12G
Updates and configuration: front USB-C or Ethernet
Reclocking: yes

SDI input standards

SD video standards: 525i59.94 NTSC, 625i50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
SDI video sampling: 4:2:2 and 4:4:4
SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
SDI color precision: 4:2:2 and 4:4:4
SDI color space: YUV and RGB. 33 point LUTs can be loaded via Teranex Utility

HDMI output standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
HDMI color space: REC 601, REC 709
HDMI color precision: YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility

Software

Software control: Mac OS X and Windows software upgrade via USB-C or Ethernet
Internal software upgrade: via included updater application

Operating systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10 64-bit

Settings control

Basic Settings control: mini switches, USB and Ethernet via free software utility
Optional front panel control: front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power requirements

Power supply: 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V_AC input
PoE: cn be powered via 48 V_DC using PoE+ (Power over Ethernet)
Power consumption: 16 W
Operational voltage range: 100 to 240 V_AC

Environmental specifications

Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Relative humidity: 0 to 90% non-condensing

Physical specifications

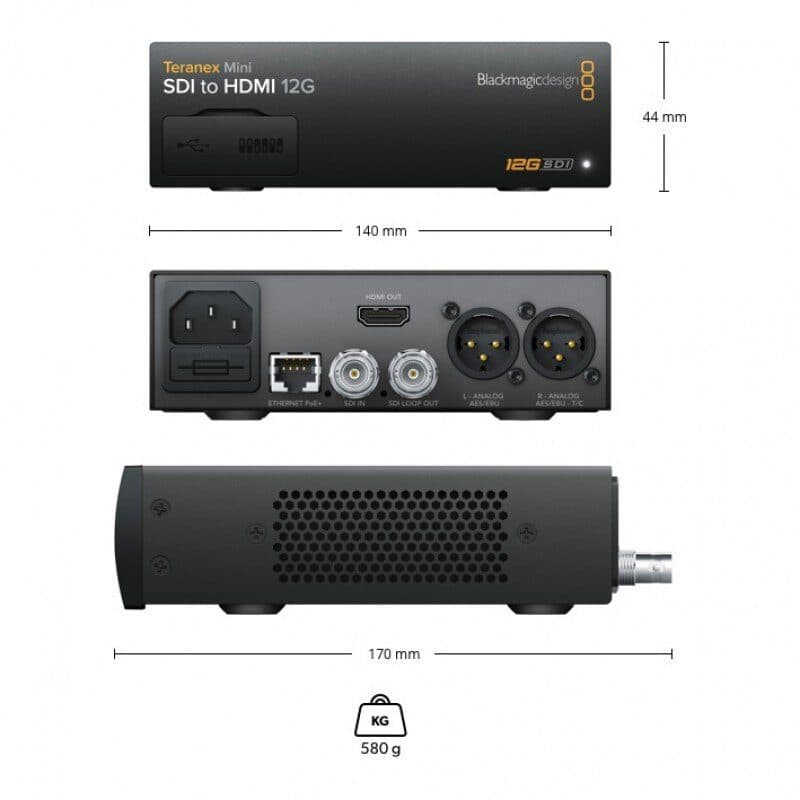

Dimensions: 14 x 4.4 x 17 cm
Weight: 580 g

What’s included

Teranex Mini SDI to HDMI 12G
Welcome wallet with QR code for software download

Specifications

2K video standards	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
4K video standards	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
Analog audio outputs	2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code output
Basic Settings control	mini switches, USB and Ethernet via free software utility
Digital audio outputs	4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output
Dimensions	14 x 4.4 x 17 cm
Embedded audio support	8 channels
HD video standards	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
HDMI color precision	YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility
HDMI color space	REC 601, REC 709
HDMI video outputs	1 x HDMI 2.0 type A connector with support for 2160p 60
Internal software upgrade	via included updater application
Multi rate support	270MB, 1.5G, 3G, 6G and 12G
Operating temperature	0 to 40 °C
Operational voltage range	100 to 240 V AC
Optional front panel control	front mounted Smart Panel with LCD, rotary knob and six settings buttons
PoE	cn be powered via 48 V DC using PoE+ (Power over Ethernet)
Power consumption	16 W
Power supply	1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input
Reclocking	yes
Relative humidity	0 to 90% non-condensing
SD video standards	525i59.94 NTSC, 625i50 PAL
SDI audio sampling	Television standard sample rate of 48 kHz and 24‑bit
SDI color precision	4:2:2 and 4:4:4
SDI color space	YUV and RGB. 33 point LUTs can be loaded via Teranex Utility
SDI compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video inputs	4 x 12G-SDI HD / 2K / 4K / 8K auto switching
SDI video outputs	1 x 12G-SDI loop output
SDI video rates	SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
SDI video sampling	4:2:2 and 4:4:4
Software control	Mac OS X and Windows software upgrade via USB-C or Ethernet
Storage temperature	-20 to 60 °C
Ultra HD video standards	2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
Updates and configuration	front USB-C or Ethernet
Weight	580 g
