Converter Teranex Mini HDMI to SDI 12G - Blackmagic Design BLM-CONVNTRM/AB/HSDI

Name: Converter Teranex Mini HDMI to SDI 12G - Blackmagic Design BLM-CONVNTRM/AB/HSDI
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVNTRM/AB/HSDI
Price: 642.30 EUR
Availability: OutOfStock

Out of stockNew

SKU BLM-CONVNTRM/AB/HSDIEAN 9338716003253

Price for 1 unit

642,30 €

526,47 € + IVA

HDMI to 12G SDI converter up to Ultra HD with analog or AES/EBU audio

Description

Teranex Mini HDMI to SDI 12G allows you to convert from HDMI to 12G-SDI. All video formats are supported, including SD, HD, 6G, and 12G-SDI. You can also convert from HD to Ultra HD with the included up-converter. Teranex Mini supports audio embedding from balanced analog or AES/EBU formats, as well as Time Code input. Teranex Mini HDMI to SDI 12G is the perfect solution for converting consumer HDMI cameras to SDI, or for adding SDI outputs to computers with HDMI connections.

Technical characteristics

Connections

SDI video outputs: 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input
HDMI video inputs: 1 x HDMI 2.0 type A
Analog audio inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code input
Digital audio inputs: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code input
Embedded audio support: 16 channels
Multi rate support: automatic switching between SD / HD / 2K and 4K
Updates and configuration: front USB-C or Ethernet
Reclocking: yes

SDI output standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video rates: SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI
SDI video sampling: 4:2:2
SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
SDI color precision: 4:2:2
SDI color space: YUV

HDMI input standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
HDMI color space: REC 601, REC 709
HDMI color precision: YUV 4:2:2 in HD, 2K and 4K
Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Format conversion

HD up and down conversion

Software

Software control: Mac OS X and Windows software upgrade via USB-C or Ethernet
Internal software upgrade: via included updater application

Operating systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10 64-bit

Settings control

Basic Settings control: mini switches, USB and Ethernet via free software utility
Optional front panel control: front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power requirements

Power supply: 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V_AC input
PoE: can be powered via 48 V_DC using PoE+ (Power over Ethernet)
Power consumption: 16 W
Operational voltage range: 100 to 240 V_AC

Environmental specifications

Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Relative humidity: 0 to 90% non-condensing

Physical specifications

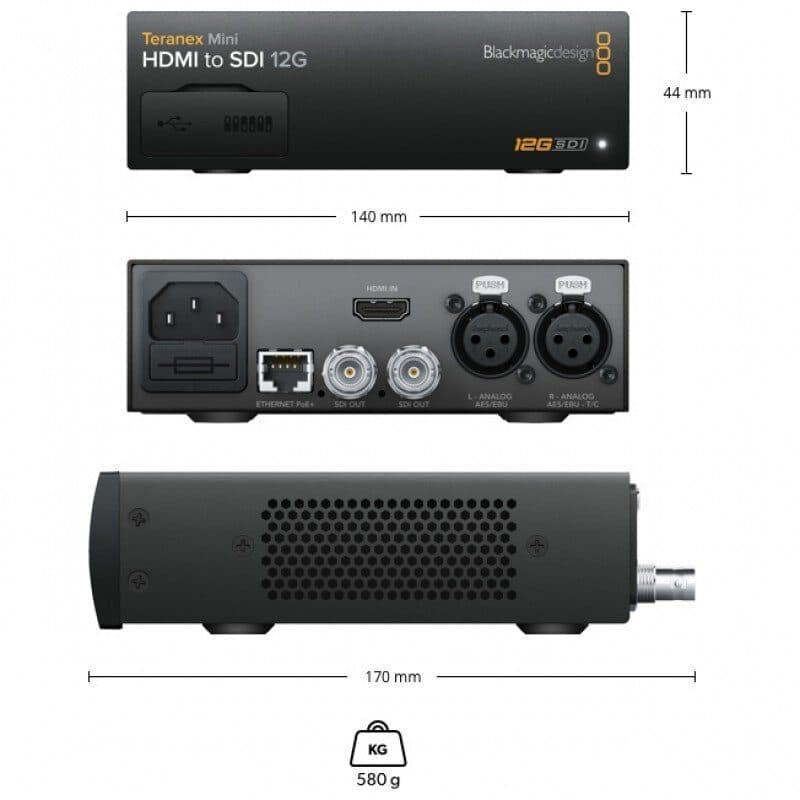

Dimensions: 14 x 4.4 x 17 cm
Weight: 580 g

What’s included

Teranex Mini HDMI to SDI 12G
Welcome wallet with QR code for software download

Specifications

2K video standards	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI
4K video standards	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
Analog audio inputs	2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code input
Basic Settings control	mini switches, USB and Ethernet via free software utility
Copy protection	HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Digital audio inputs	4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code input
Dimensions	14 x 4.4 x 17 cm
Embedded audio support	16 channels
HD video standards	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
HDMI color precision	YUV 4:2:2 in HD, 2K and 4K
HDMI color space	REC 601, REC 709
HDMI video inputs	1 x HDMI 2.0 type A
Internal software upgrade	via included updater application
Multi rate support	automatic switching between SD / HD / 2K and 4K
Operating temperature	0 to 40 °C
Operational voltage range	100 to 240 V AC
Optional front panel control	front mounted Smart Panel with LCD, rotary knob and six settings buttons
PoE	can be powered via 48 V DC using PoE+ (Power over Ethernet)
Power consumption	16 W
Power supply	1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input
Reclocking	yes
Relative humidity	0 to 90% non-condensing
SD video standards	525i 59.94 NTSC, 625i 50 PAL
SDI audio sampling	Television standard sample rate of 48 kHz and 24‑bit
SDI color precision	4:2:2
SDI color space	YUV
SDI compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video outputs	2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input
SDI video rates	SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI
SDI video sampling	4:2:2
Software control	Mac OS X and Windows software upgrade via USB-C or Ethernet
Storage temperature	-20 to 60 °C
Ultra HD video standards	2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
Updates and configuration	front USB-C or Ethernet
Weight	580 g
