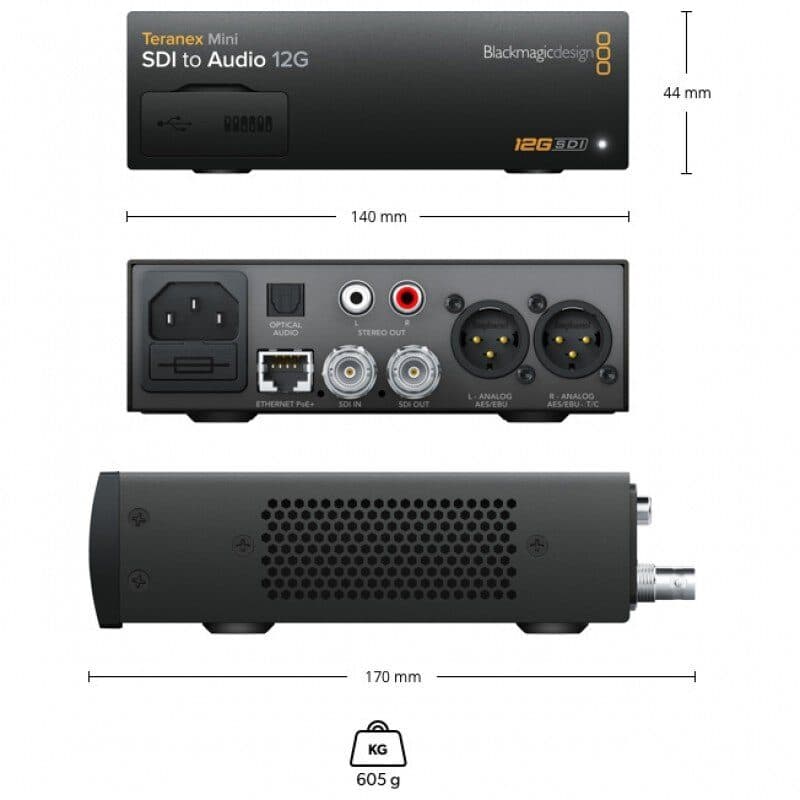

12G SDI to audio converter Teranex Mini - Blackmagic Design BLM-CONVNTRM/CA/SDIA

Teranex Mini SDI to Audio 12G is a converter that de-embed audio from any SDI signal up to 12G, providing balanced analog, Hi-Fi RCA, and AES/EBU digital outputs, as well as an optical S/PDIF output. This rugged and reliable converter supports all video standards from SD to Ultra HD, is upgradeable via USB or Ethernet, and can be controlled with the optional Smart Panel. With support for 24-bit / 48 kHz audio sampling and video up to 4:4:4, it ensures broadcast quality.

Technical characteristics

Connections

• SDI video inputs: 1 x 12G-SDI SD / HD / 2K / 4K auto switching
• SDI video outputs: 1 x 12G-SDI loop output
• Analog video outputs: composite, Y/C or component
• Analog audio outputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output
• Digital audio outputs: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output
• Embedded audio support: 16 channels
• Optical audio output: S/PDIF Signal with TOSLINK connector
• Multi rate support: automatic switching between SD / HD / 2K and 4K
• Updates and configuration: front USB-C or Ethernet
• Reclocking: yes

Standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
• SDI video rates: SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI
• SDI video sampling: 4:2:2 and 4:4:4
• SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
• SDI color precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
• SDI color space: REC 601, REC 709
