BLACKMAGIC DESIGN

Converter 12G-SDI to Quad SDI Teranex Mini - Blackmagic Design BLM-CONVNTRM/DB/SDIQ

Name: Converter 12G-SDI to Quad SDI Teranex Mini - Blackmagic Design BLM-CONVNTRM/DB/SDIQ
Brand: BLACKMAGIC DESIGN
SKU: BLM-CONVNTRM/DB/SDIQ
Price: 619.15 EUR
Availability: OutOfStock

Out of stockNew

SKU BLM-CONVNTRM/DB/SDIQEAN 9338716003499

Price for 1 unit

619,15 €

507,50 € + IVA

Single 12G-SDI to Quad link SDI converter

Description

The Teranex Mini 12G-SDI to Quad SDI Converter converts a 12G-SDI signal to Quad Link SDI, allowing you to connect the latest 12G-SDI Ultra HD equipment to Quad Link Ultra HD equipment. It also allows you to split Ultra HD SDI into four HD SDI outputs, allowing you to use regular HD displays for video wall-style displays. It includes 12G-SDI loop-through and support for level A and level B 3G-SDI equipment.

Technical characteristics

Connections

SDI video inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching
SDI video outputs: 4 x 3G-SDI and 1 x 12G-SDI loop output
Embedded audio support: 16 channels
Multi rate support: automatic switching between SD / HD / 2K and 4K
Updates and configuration: front USB-C or Ethernet
Reclocking: yes

Standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
SDI video sampling: 4:2:2 and 4:4:4
SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
SDI color space: YUV & RGB

Software

Software control: Mac and Windows software upgrade via USB-C and Ethernet
Internal software upgrade: via included updater application

Operating systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10 64-bit

Settings control

Basic Settings control: mini switches, USB and Ethernet via free software utility
Optional front panel control: front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power requirements

Power supply: 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V_AC input
PoE: can be powered via 48 V_DC using PoE+ (Power over Ethernet)
Power consumption: 16 W
Operational voltage range: 100 to 240 V_AC

Environmental specifications

Operating temperature: 0 to 40 °C
Storage temperature: -20 to 60 °C
Relative humidity: 0 to 90% non-condensing

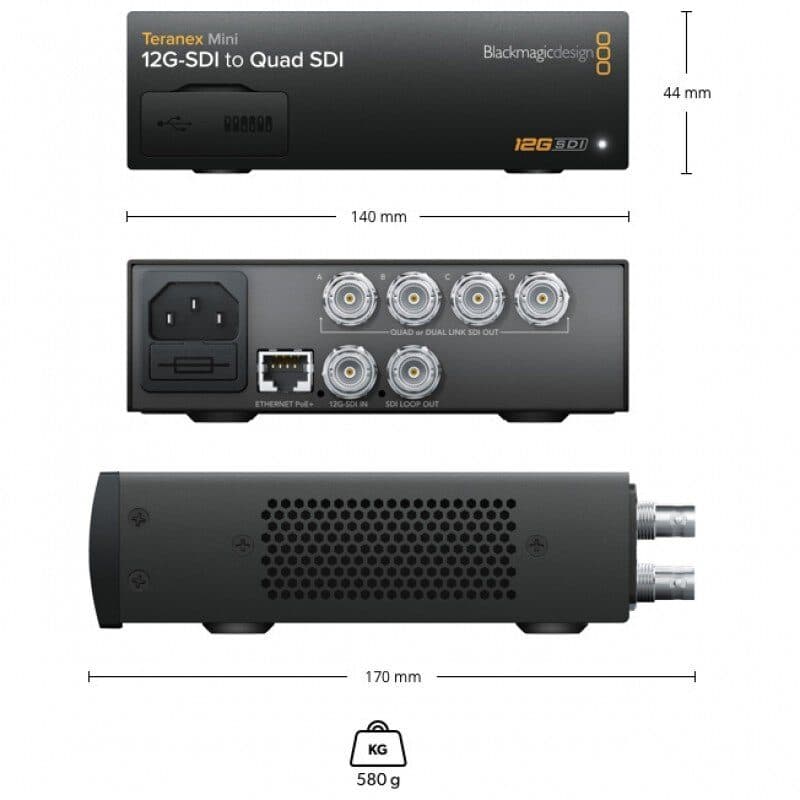

Physical specifications

Dimensions: 14 x 4.4 x 17 cm
Weight: 580 g

What’s included

Teranex Mini 12G-SDI to Quad SDI
Welcome wallet with QR code for software download

Specifications

2K video standards	2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI
4K video standards	4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
Basic Settings control	mini switches, USB and Ethernet via free software utility
Dimensions	14 x 4.4 x 17 cm
Embedded audio support	16 channels
HD video standards	720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
Internal software upgrade	via included updater application
Multi rate support	automatic switching between SD / HD / 2K and 4K
Operating temperature	0 to 40 °C
Operational voltage range	100 to 240 V AC
Optional front panel control	front mounted Smart Panel with LCD, rotary knob and six settings buttons
PoE	can be powered via 48 V DC using PoE+ (Power over Ethernet)
Power consumption	16 W
Power supply	1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input
Reclocking	yes
Relative humidity	0 to 90% non-condensing
SD video standards	525i 59.94 NTSC, 625i 50 PAL
SDI audio sampling	Television standard sample rate of 48 kHz and 24‑bit
SDI color space	YUV & RGB
SDI compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video inputs	1 x 12G-SDI SD/HD/2K/4K auto switching
SDI video outputs	4 x 3G-SDI and 1 x 12G-SDI loop output
SDI video rates	SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI
SDI video sampling	4:2:2 and 4:4:4
Software control	Mac and Windows software upgrade via USB-C and Ethernet
Storage temperature	-20 to 60 °C
Ultra HD video standards	2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
Updates and configuration	front USB-C or Ethernet
Weight	580 g
