Teranex AV standard quad 12G-SDI converter - Blackmagic Design BLM-TERANEXEXPAV12GQ

With Teranex AV by Blackmagic Design you get 1089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. It's specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows, such as: low latency, still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations! Ideal standard conversions for professional A/V. 12G-SDI, HDMI 2.0a and HiFi connections. 1089 separate standard and format conversions. Conversion of Time Code and auxiliary data embedded in video. Internal frame archive for adding logos and graphics.

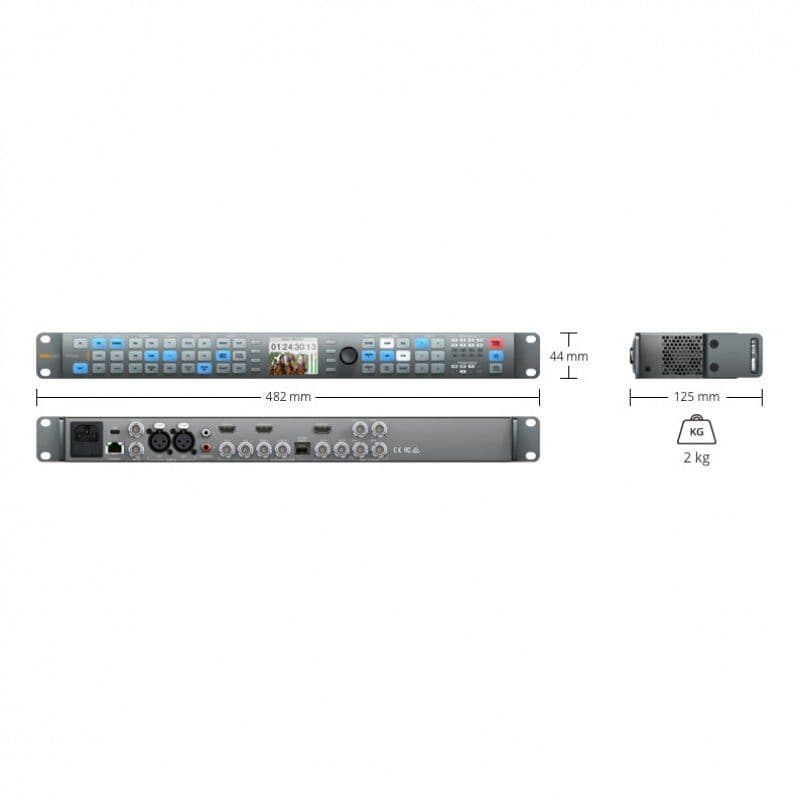

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD

SDI Video Input Loops

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

SDI Video Outputs

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.

Quad SDI Video Outputs

4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.

HDMI Video Inputs 1x HDMI 2.0 type A connector. YUV or RGB, auto switching.

HDMI Video Loop Inputs 1x HDMI 2.0 type A connector. Active Input loop.

HDMI Video Outputs 1x HDMI 2.0 type A connector. YUV or RGB, user selectable.

SDI Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.

SDI Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Inputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Outputs 8 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Connection (optional) 1x SMPTE optical fiber SFP socket.

Optical Fiber Video Inputs 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Video Outputs 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Audio Inputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Audio Outputs 16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Analog Audio Inputs

2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs).
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.

AES/EBU Digital Audio Inputs 2x XLR - 2 pairs (4 channels) professional 110? balanced digital audio (XLRs are shared with analog inputs)

Dolby® Support Built In Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.

Time Code Inputs Support for VITC/ATC. No support for LTC.

Time Code Outputs Support for VITC/ATC. No support for LTC.

Multi Rate Support SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

Reference Input 1x BNC - Black Burst in SD or Tri-level sync in HD.

Reference Output 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.

Computer Interface 1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.

Processor Interface Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
