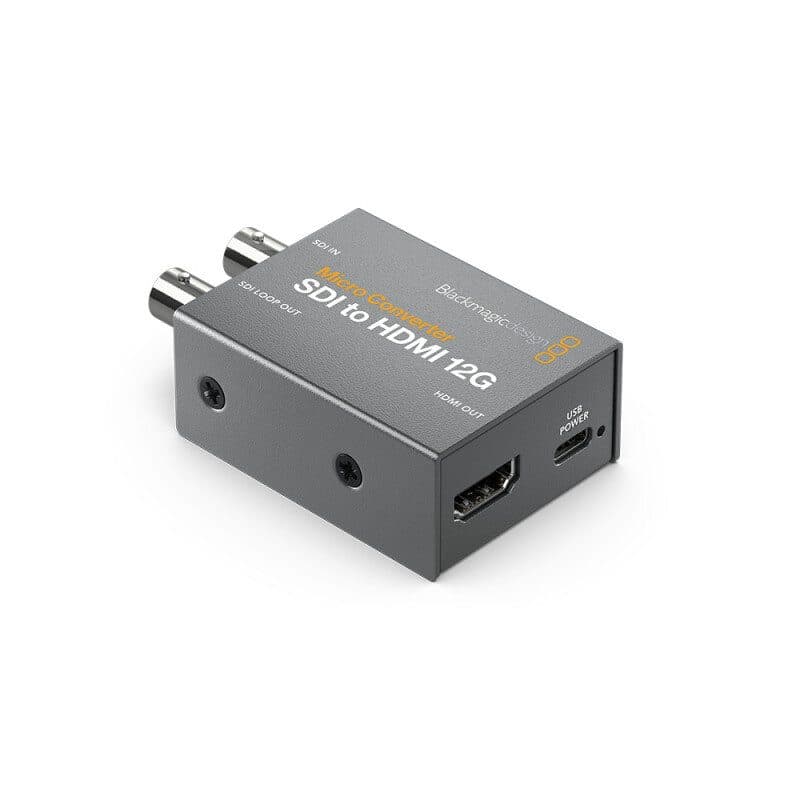

12G micro SDI-HDMI converter with power supply - Blackmagic Design BLM-CONVCMIC/SH12G/W

Blackmagic Micro Converter 12G SDI to HDMI converts SDI to HDMI up to 2160p 60 and is designed for professional video monitoring. Its miniature design provides broadcast-quality operation and combines a standard HDMI connection with two professional 12G-SDI connections for all rates of NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p formats. It also supports 4K DCI at 24, 47.95 and 48. A 33-point 3D LUT can be loaded to calibrate the colour of monitors, projectors and televisions.

The connection data specifies 1 SDI video input, 1 SDI loop output and an HDMI 2.0 Type A output; the product description presents the unit with two professional 12G-SDI connections. SDI rates are 270 Mb, 1.5G, 3G, 6G and 12G, with automatic multi-rate detection of SD, HD, 2K, Ultra HD and 4K. USB Type-C handles updates, configuration and power. Settings are controlled through a macOS and Windows software utility connected by USB, while internal software upgrades are performed via USB.

SDI video standards are 525i 59.94 NTSC and 625i 50 PAL. HD standards include 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94 and 1080i 60. 2K standards are 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI and 2KPsF 30 DCI.

Ultra HD standards are 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94 and 2160p 60. 4K standards are 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI. SDI compliance includes SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1. SDI connections can be switched between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.

SDI colour precision is 4:2:2, and the 33-point LUT can be loaded through the software utility to calibrate or improve monitor colour; the SDI colour space is YUV. Automatic switching detects SD, HD Level A or B for 3G-SDI, 2K DCI, Ultra HD and 4K DCI. The listed HDMI video standards include 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60 and 2160. HDMI colour precision is 4:2:2, with a 33-point LUT available for monitor calibration or colour improvement, and the HDMI colour space is YUV.

Maximum power consumption is 4 W, the operating voltage range is 4.4 to 5.25 V DC, operating temperature is 0 to 40 °C, and storage temperature is -20 to 60 °C. Relative humidity is 0% to 90% non-condensing. Dimensions are 78 x 45.8 x 24.8 mm and weight is 150 g. The supplied AC power supply accepts 100 to 240 V, includes international adapters and provides 5 VDC output.

• Micro Converter 12G SDI to HDMI with power supply.
• +5 V DC universal power supply with international socket adapters.
