Rack monitoring panel ATEM 40 inputs IP 12G-SDI HDMI - Blackmagic Design BLM-SWPANELABRMP40

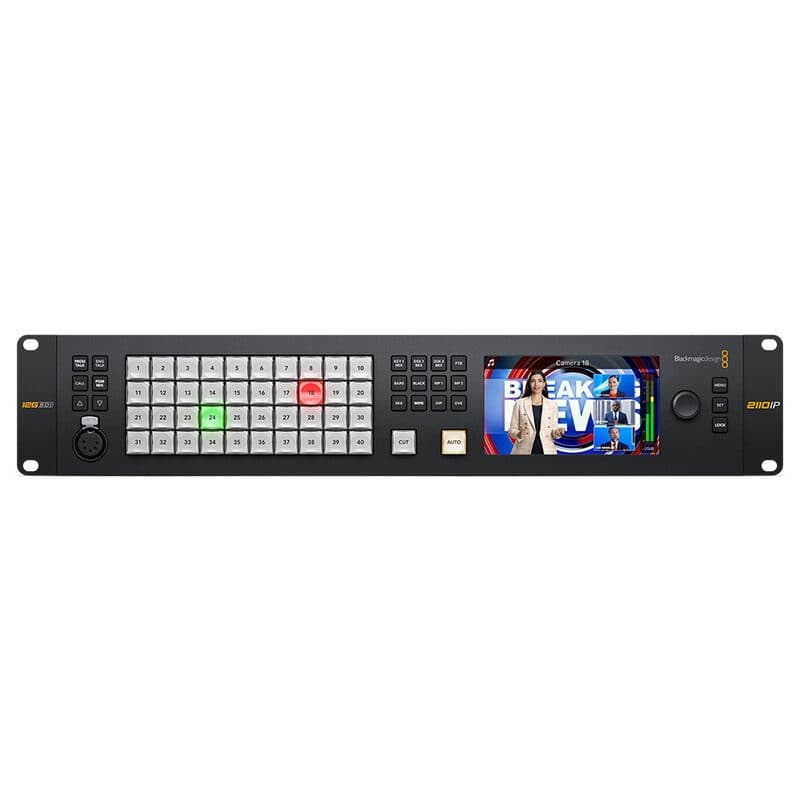

The ATEM Monitoring Rack Panel 40 is a monitoring converter and control panel designed for ATEM Constellation IP switchers. It receives SMPTE-2110 IP video sources via the two redundant 10G Ethernet ports and converts them to 12G-SDI and HDMI outputs for local monitoring. The front panel features 40 backlit buttons for selecting up to 40 IP inputs for switcher control. It also includes an LCD for video and audio monitoring, metering, and a 5-pin talkback connection. Featuring SMPTE-2022-7 redundancy and a dedicated NMOS connection for routing IP sources, it ensures continuous uptime and easy integration into IP broadcast infrastructures. The rackmount design and high quality buttons make it ideal for adding physical controls and local monitoring to ATEM Constellation IP switchers. This makes it easier to compensate for the lack of front panel controls due to the front-to-back cooling on the IP models. It features dual redundant AC power supplies for maximum operational reliability. User benefits Instant local monitoring with SMPTE-2110 IP to 12G-SDI and HDMI conversion Quick source selection with 40 buttons Full redundancy with dual SMPTE-2022-7 compliant 10G Ethernet connections IP source routing via a dedicated NMOS connection Built-in LCD for video and audio monitoring with level meters 5-pin talkback for operational communication with the control room Additional physical control for ATEM Constellation IP switchers High reliability with dual redundant AC power supplies Areas of use SMPTE-2110 IP control rooms TV broadcast OB vans and IP mobiles Local monitoring in studios and control rooms
