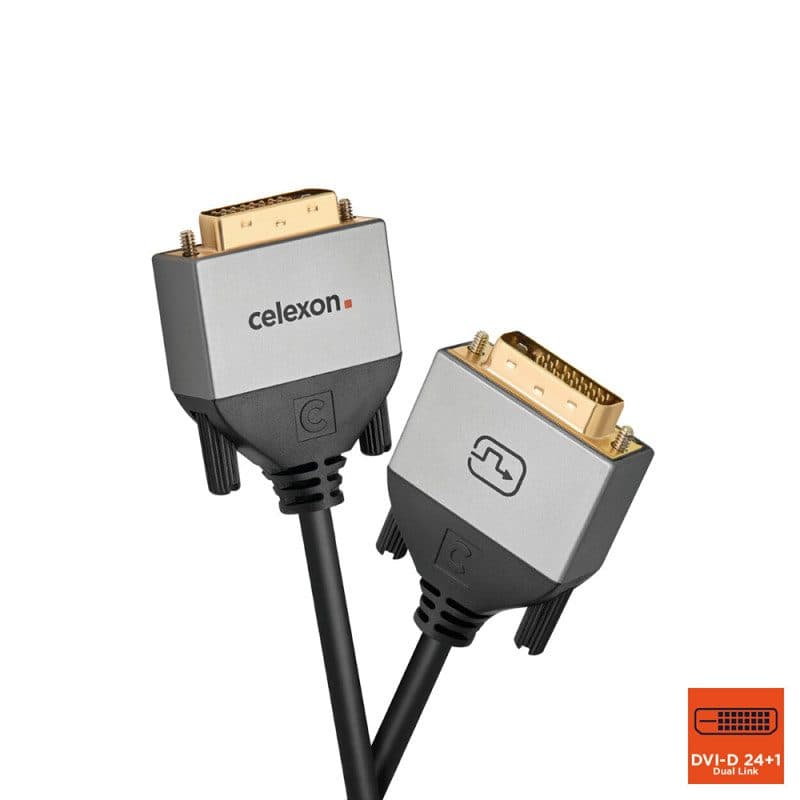

DVI-D Dual Link Professional Line cable 2560x1600p - Celexon CEL-1000015557

The celexon DVI Dual Link Professional Line cable handles signals up to 2K, providing 2560x1600p at 60 Hz with 10-bit colour depth. Its 4:4:4 chroma subsampling preserves the complete brightness and image information for a sharp presentation. Dual Link operation enables the higher format, while DVI Single Link is limited to Full HD at 1920 x 1080p and 60 Hz.

Video data travels through TMDS across 4 data lines. The Dual Link arrangement divides the stream between two TMDS transmitters, raising the frequency to 330 MHz and allowing 2560x1600p transmission at a 60 Hertz refresh rate. Two screws integrated into the connectors provide a firm attachment to the equipment sockets and help prevent accidental disconnection.

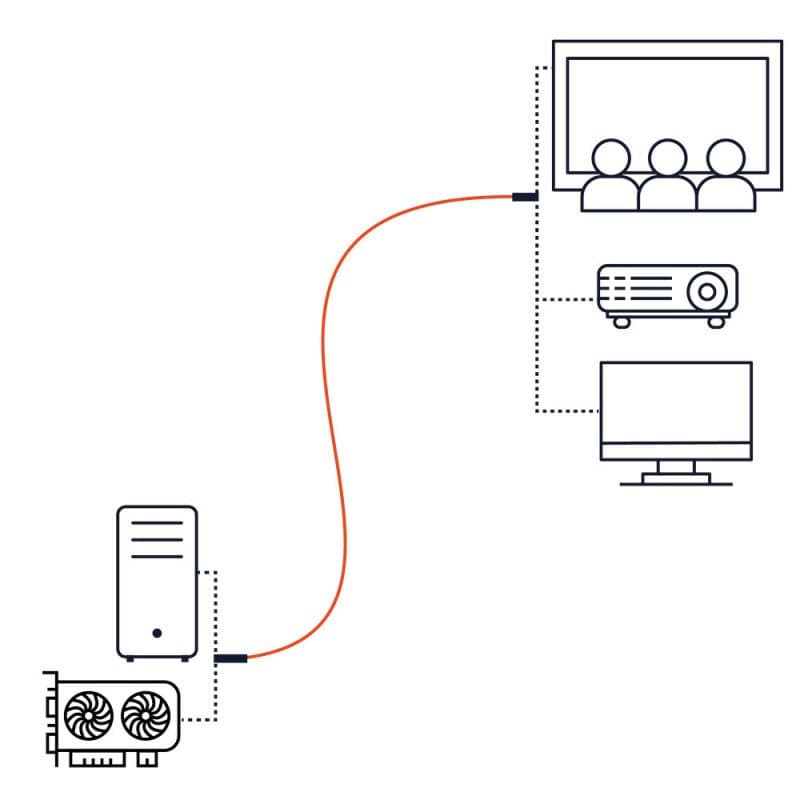

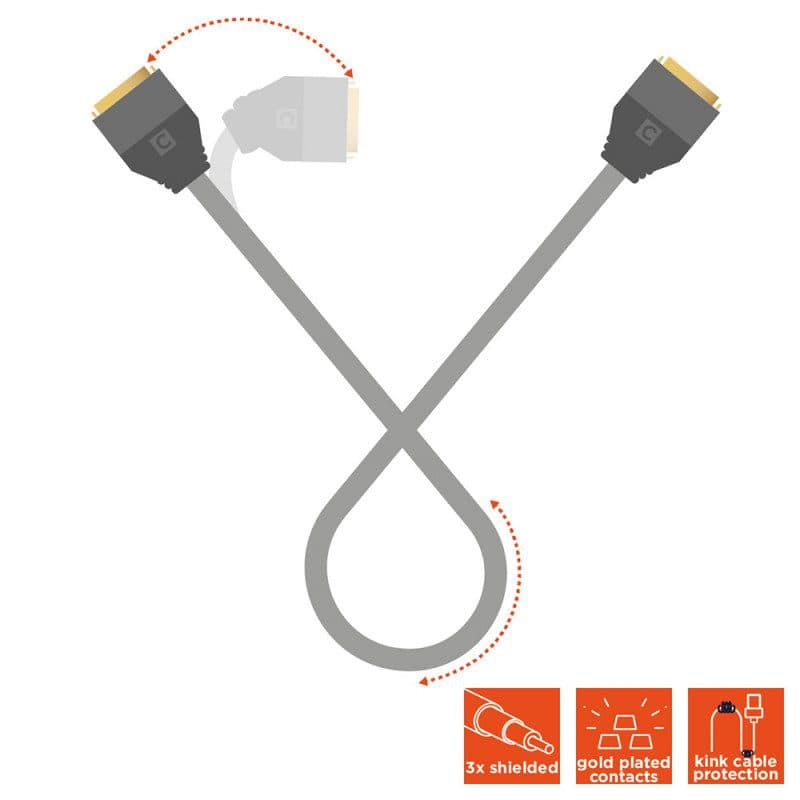

Triple shielding supports dependable signal transmission, while gold-plated contacts provide corrosion resistance. The Professional Line combines reliable technical operation with careful construction and an elegant design. The cable is suitable for office, home-office, entertainment and professional applications.

Specifications:

• Connection: DVI-D (24+1) plug to DVI-D (24+1) plug
• Standard: DVI Dual Link
• Transmission rate: 9.9 Gbps

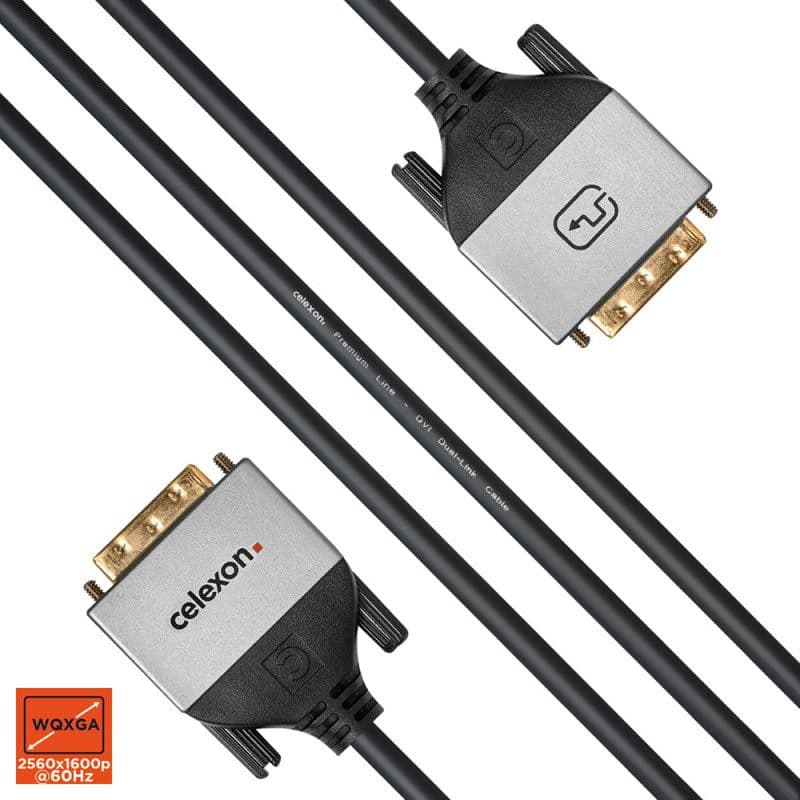

• Maximum resolution: 2K / WQXGA / 2560x1600p at 60 Hz, 10 Bit, 4:4:4
• Supported colour spaces: 16/24-bit RGB/YUV, Deep Color, x.v.Color™
• Additional features: HDCP, EDID
• Connector construction: gold-plated contacts, chrome-plated aluminium housing, flexible bend protection
• Cable construction: high-purity copper conductors, triple shielding, PVC sheath with 6.5 mm diameter
• Cable colour: black
• Cable type: round
• Cable length: 3.0 m
• Compliance: REACH, RoHs
• Weight: 0.239 kg
• Product colour: black
• Product height: 1.6 cm
• Net product weight: 0.232
• Product width: 4 cm
• Product depth: 300 cm
• Inputs: 1 x DVI-D
• Outputs: 1 x DVI-D
• Cable length: 3 m
• Diameter: 6.5 mm
