Kit digital audio SPDIF coaxial/optical extender Cat5e 150m - CYP CYP-PU-304-KIT

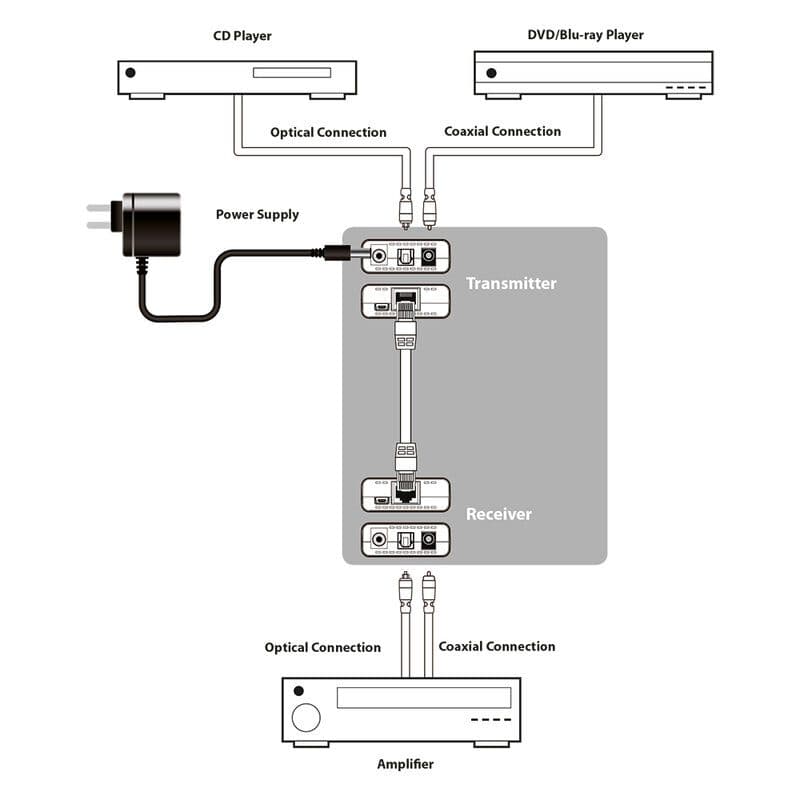

The PU-304-KIT is an extender system consisting of a compact transmitter (PU-304TX) and receiver (PU-304RX), powered via USB or an external power supply, designed to transmit coaxial or optical digital audio signals over a single Cat.5e/6 cable up to 150 m. Supports SPDIF signals up to 96 kHz and stereo and multi-channel audio formats such as LPCM, DTS, Dolby Digital, and Dolby Digital Plus. Main features Supports coaxial or optical SPDIF digital audio signals Supports stereo and multi-channel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) Supports sampling rates up to 96 kHz Dual transmission: 1 coaxial and 1 optical Signals can be extended over a single Cat.5e/6 cable up to 150 m User benefits Extension of digital audio over long distances via Cat. 6 cabling Compatibility with multi-channel audio formats Flexible installation thanks to USB or PSU power supply Complete, ready-to-use TX + RX kit Reduction in cabling compared to traditional coaxial/optical cables Areas of use Digital audio distribution in conference rooms and meeting rooms Connection of remote digital audio sources in systems AV Home Theater integration with remote sources Audio installations for museums, showrooms, and exhibition spaces Digital audio extensions for temporary events and mobile installations

Technical characteristics

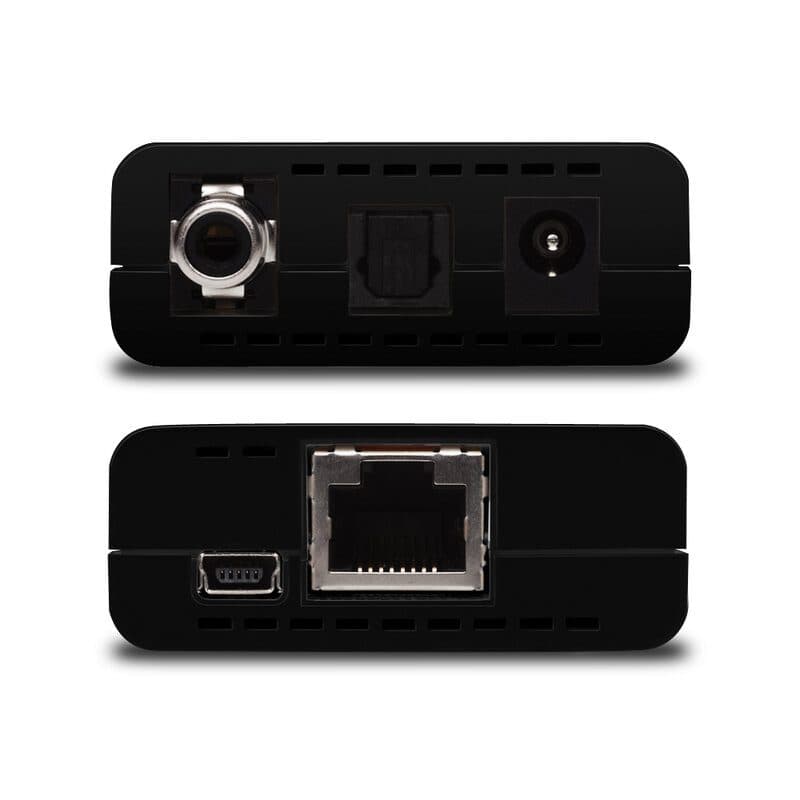

PU-304RX

• Inputs:

  • 1 × RJ45 [1 × digital audio propriety data]
• Outputs:

  • 1 × RCA [1 × coaxial 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
    1 × Toslink [1 × optical 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
• PSU: 5 V_DC 1.2 A & USB
• Dimensions (W × H × D): 7.5 × 2.2 × 5.5 cm
• Net weight: 100 g

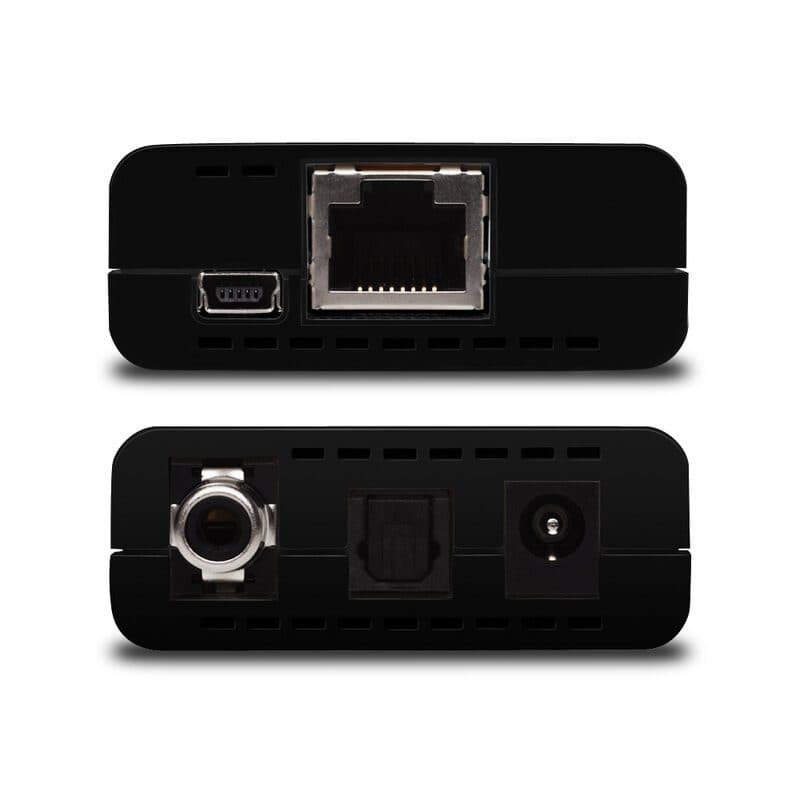

PU-304TX

• Inputs:

  • 1 × RCA [1 × coaxial 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
  • 1 × TOSLINK [1 × optical 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
• Outputs:

  • 1 × RJ45 [1 × digital audio propriety data]
• PSU: 5 V_DC 1.2 A & USB
• Dimensions (W × H × D): 7.5 × 2.2 × 5.5 cm
• Net weight: 100 g
