SDM wireless input presentation touchback module - CYP SDM-WPS-HP

The SDM‑WPS‑HP is a wireless SDM input module designed to provide a cable-free presentation system, integrating directly into CYP devices equipped with an SDM slot, such as the OR‑32SDMI matrix switcher. It enables wireless screen sharing from laptops, tablets, and smartphones, supporting Windows, macOS, Android, and iOS. Users can launch the presentation via a dedicated app or directly from a browser (Chrome or Edge), without complex installation. The module includes advanced collaboration features such as digital whiteboarding, annotation, and screen capture. Up to 20 devices can connect in Remote View mode to view the main presentation in real time. Moderator mode allows you to control who can share the screen, while USB connectivity to interactive displays enables touchback, allowing you to control your laptop directly from the touchscreen monitor. Main features Highly compatible with Windows, macOS, Android, and iOS Supports collaboration tools, including screen capture, annotation, and whiteboard Allows sharing via Chrome or Edge browsers Allows remote viewing of the main screen from devices connected to the same network Supports touchback to control the laptop directly from the interactive display Supports multi-screen viewing and simultaneous sharing by multiple users

Technical characteristics

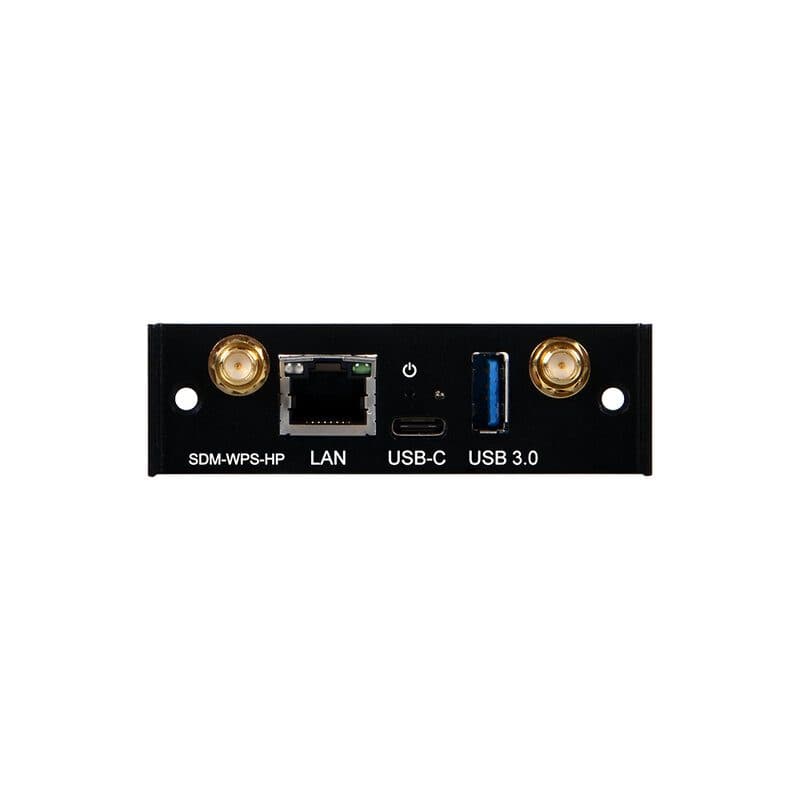

Interfaces

• Output port: 1 x CYP module (edge connector)
• Bi-directional port: 1 x GbE LAN (RJ-45)
• Control I/O: 1 x USB type-A, 1 x USB type-C

Video

• HDMI compliance: HDMI 1.4
• Input signal type: IEEE 802.11ac 2.4/5 GHz
• Output signal type: 3840 x 2160p @ 30 Hz
• Max. output resolution: 3840 x 2160p @ 30 Hz RGB (via edge connector)

Audio

• HDMI out: LPCM 2 canali

USB

• Standard: USB 3.2 Gen1
• Transfer rate: 5 Gbps

Field firmware update

• WebGUI

Enclosure

• Chassis material: metallo (acciaio)
• Chassis colour: nero
• Dimensions (module only): 82 x 25 x 123 mm
• Dimensions (all inclusive): 82 x 130 x 150 mm
• Weight: 150 g
