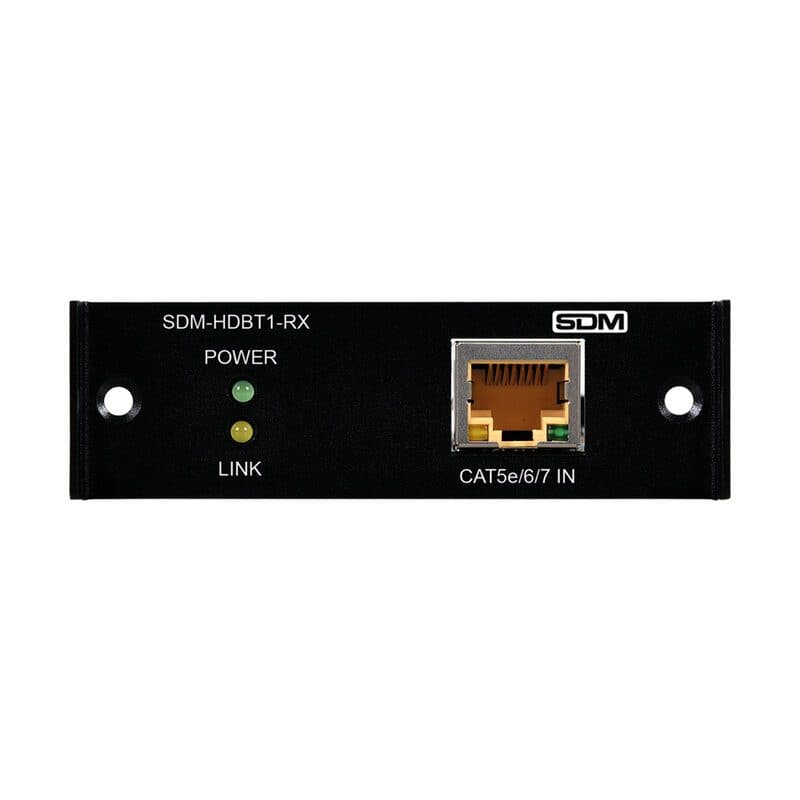

HDBaseT Cat 4K 40m receiver SDM module - CYP SDM-HBT1-RX

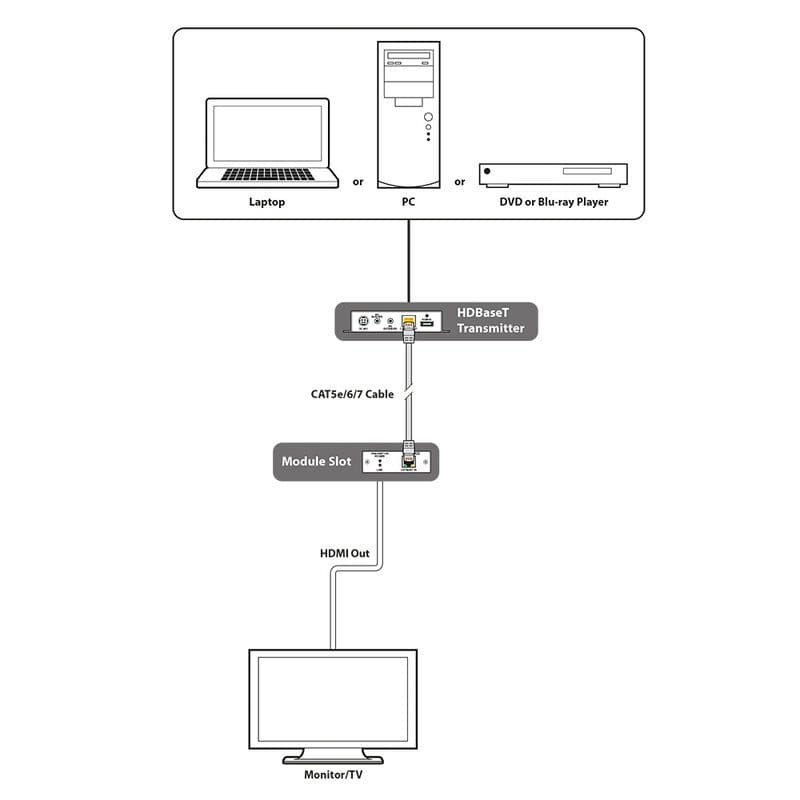

HDBaseT1 receiver module designed to integrate AV signals transmitted via Cat. 1A cable into CYP SDM products equipped with input module slots. The module receives audio and video signals from compatible HDBaseT transmitters, allowing for the direct integration of remote sources into the host SDM device, such as CYP SDM series matrix switchers or video processors. It supports resolutions up to 4K and allows point-to-point extensions up to 40 meters via Cat. 1A cable, while maintaining compatibility with protected content thanks to HDCP 1.x and 2.2 support. The module features an HDBaseT input (RJ45) and an HDMI output (with a physical connector on the host device), allowing for decoding of the received signal and its direct delivery to the SDM system. It is powered directly by the device into which it is inserted, without the need for external power supplies. Main features Compatible with SDM core products with input module slots Supports point-to-point extensions for audio and video signals Category C cables can reach up to 40 meters at full 4K resolution Compatible with HDCP 1.x and 2.2 Receives and integrates any HDBaseT transmission into the SDM core product used User benefits Instant integration of HDBaseT signals into SDM core products without external converters Stable transmission of audio and video signals up to 40 meters over a single Cat cable Compatibility with protected content thanks to HDCP 1.x and 2.2 support Reduces cabling and simplifies installation Ideal solution for bringing remote sources directly into SDM matrix switchers and processors Areas of use Corporate Educational Industrial Digital Signage

Technical characteristics

• Inputs: 1 × HDBaseT (HDMI & proprietary data) [1 × RJ45]
• Outputs:
  • 1 × LC-LC Duplex multi-mode 62.5-125 fibre (1 × TX: SFP+ HDMI & proprietary data)
  • 1 × HDMI (1 × RX: HDMI uncompressed AV and data)
• Dimensions (W × H × D): 8.2 × 2.5 × 11.1 cm
• Weight: 60 g
