Splitter HDMI 1x3 HDBaseT PoC LAN IR + local HDMI - CYP CYP-PU-1H3HBTE

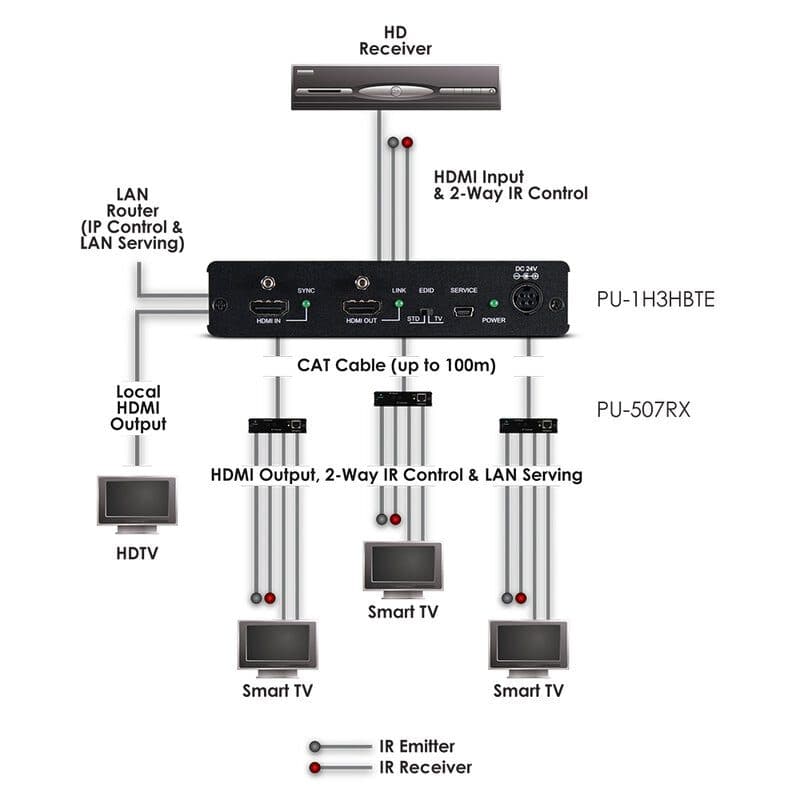

The PU‑1H3HBTE is a splitter that allows you to distribute a single HDMI signal to three HDBaseT outputs with PoC, LAN, and IR, as well as an additional local HDMI output. It supports video signals up to 4K UHD, audio up to 7.1 channels, and IR transmission, ensuring reliable, uncompressed AV distribution over a single Cat. 5e/6/7 cable up to 100 m. We recommend using the PU‑507RX receivers to take full advantage of this device's HDBaseT capabilities. It is ideal for AV installations requiring simultaneous distribution of a single source to multiple displays, with the option of cascading up to 5 levels. Main features Supports all HDMI v1.4 resolutions, including 4K Compatible with HDMI, HDCP, and DVI Supports HDMI/LAN/PoC (Power over Cable)/IR Supports resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDID Supports uncompressed video/audio up to 10.2 Gbps Supports HDCP repeating and CEC Additional HDMI bypass output for greater flexibility Supports distances 1080p up to 100 m via Cat. 5e/6 Audio up to 7.1 CH and Dolby TrueHD, DTS-HD Supports 3D signals 4K/2K and 4K UHD – Cat. 5e/6 = 70 m & Cat. 6a/7 = 100 m User benefits Reduction in cabling thanks to HDBaseT transmission over a single Cat. 5 cable Receiver power supply via PoC without additional power supplies Flexibility thanks to local HDMI output and cascading capability up to 5 levels Compatible with 4K UHD signals and multi-channel audio Stable distribution up to 100 m with full HDBaseT   Areas of use Retail (showrooms, shops, etc.) Digital Signage Corporate installations Museums, exhibition spaces, and multimedia paths Advanced residential systems

Technical characteristics

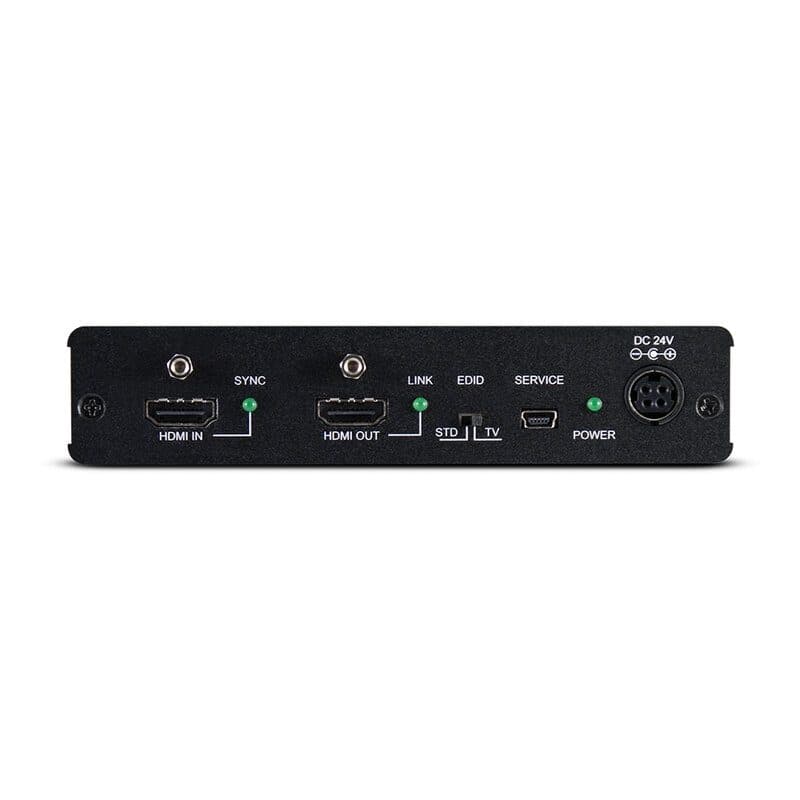

• Inputs:

  • 1 × HDMI (uncompressed AV and data)
  • 1 × 3.5 mm stereo mini-jack (infrared receiver)
  • 1 × RJ45 (LAN serving)

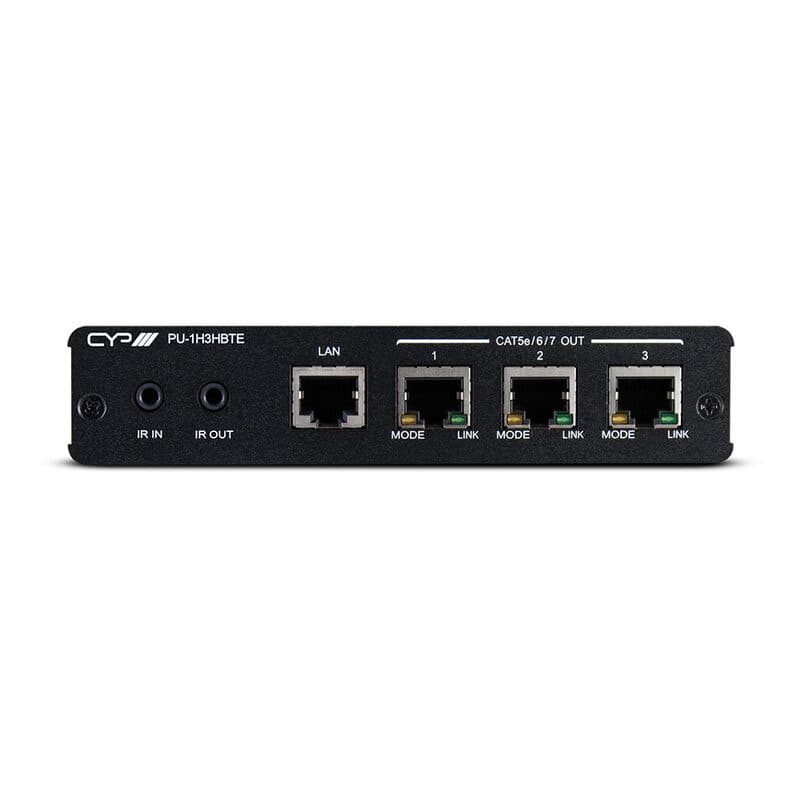

• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 3 × RJ45 (3 × HDMI & propriety data)
  • 1 × 3.5 mm stereo mini-jack (infrared emitter)
• PSU: 24 V_DC 2.7 A
• Dimensions (W × H × D): 14.5 × 3.0 × 19.9 cm
• Weight: 640 g
