HDMI 5.1 audio de-embedder repeater 1080p EDID - CYP AU-11CD

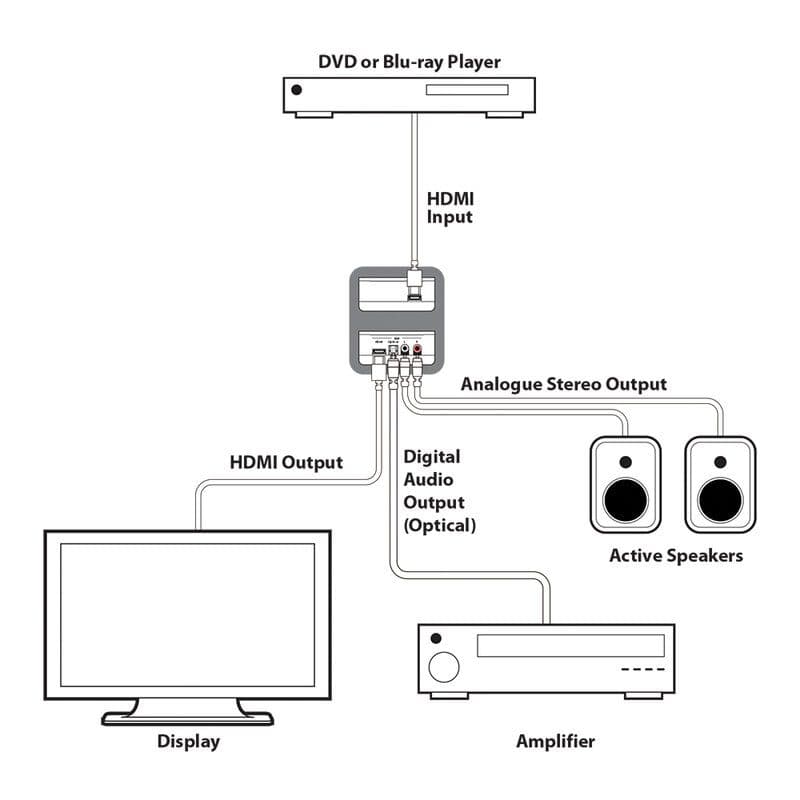

The AU-11CD is an HDMI de-embedder designed to extract up to 5.1 channels of audio from an HDMI signal while maintaining video pass-through via the built-in HDMI output. The device supports HDMI 1.3, HDCP 1.2, and DVI 1.0, ensuring compatibility with most professional and consumer AV sources. With the built-in HDMI repeater, the signal can be extended up to 10 meters on each side of the unit, maintaining full video quality up to 1080p. Audio can be extracted in optical (Toslink) or analog RCA stereo format, with support for LPCM 2.0, Dolby Digital, and DTS 5.1. The built-in EDID switch allows you to quickly select the desired audio format (LPCM 2.0, 5.1/7.1, or Bitstream), ensuring instant compatibility with soundbars, AV amplifiers, and audio systems. The compact size and 5 VDC power supply make the AU-11CD ideal for home theater installations, conference rooms, and professional AV integration. Main features Compliant with HDMI v1.3, HDCP 1.2, and DVI 1.0 Supports HDMI sampling rates up to 192 kHz Supports optical sampling rates up to 48 kHz TMDS clock frequency of 225 MHz Supports High-Speed ​​Audio (HBR) Supports resolutions up to 1080p with cable lengths up to 10 m on each side of the device User benefits Up to 5.1-channel audio extraction from any HDMI source Built-in HDMI repeater to extend the signal up to 10 m per side Compatible with Dolby Digital, DTS, and LPCM 2.0 EDID selector to choose the desired audio format 3D support and full HDMI 1.3 / HDCP 1.2 compatibility Ultra-compact dimensions Areas of use Home Theater Conference and meeting rooms AV integration with matrix switchers HDMI Stereo or 5.1 audio systems connected to HDMI sources

Technical characteristics

• Inputs: 1 × HDMI (1 × HDMI uncompressed AV and data)

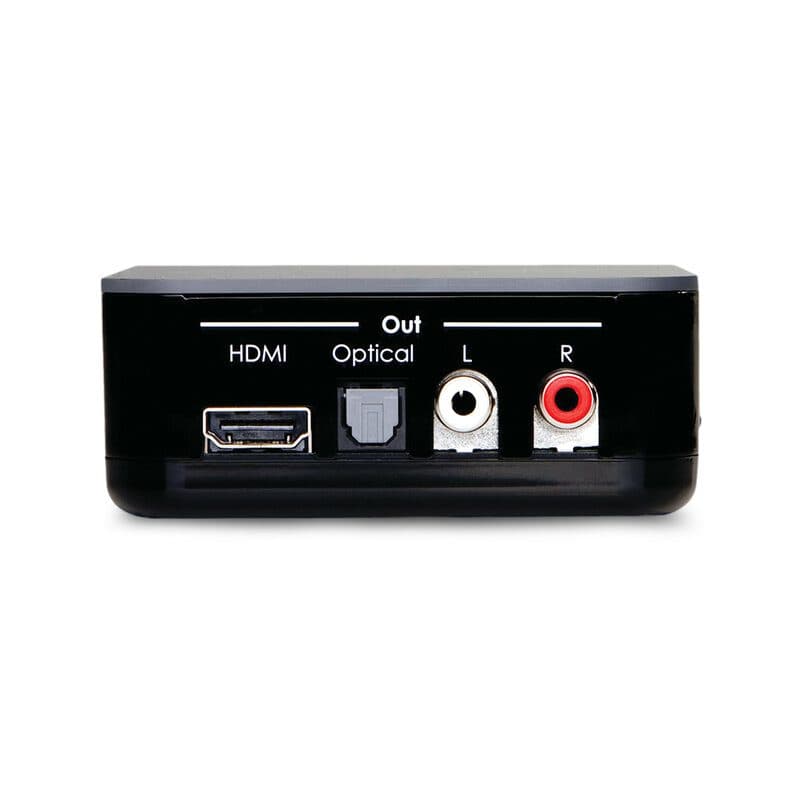

• Outputs:
  • 1 × HDMI (1 × HDMI uncompressed AV and data)
  • 1 × Toslink (1 × optical DTS / Dolby Digital / 2 channel LPCM)
  • 2 × RCA [1 × analogue stereo (L/R)]
• PSU: 5 V_DC 1.2 A
• Dimensions (W × H × D): 90.7 × 34 × 85.8 cm
• Weight: 100 g
