The SDV-FTRX-BD is a 10G SDVoE transceiver designed to extend, route, and distribute 4K AV signals with extremely low latency within AV-over-IP networks. SDVoE (Software Defined Video over Ethernet) is the most advanced 10 Gigabit AV-over-IP standard available today, a platform that enables the transport of 4K video, audio, USB, control, and networking with virtually zero latency using standard 10G Ethernet switches.
Thanks to ultra-lightweight compression, virtually lossless for most content, it supports HDMI and DisplayPort streams up to 4K with HDR, 10-bit color, and multi-channel HD audio in pass-through mode, ensuring high quality even in critical applications.

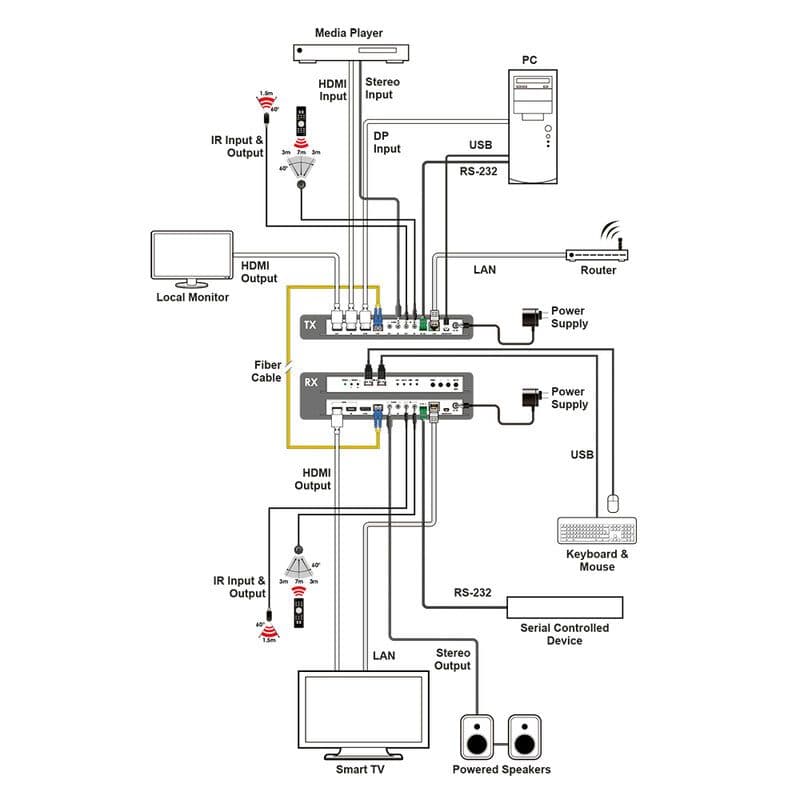

Multi-mode fiber optic transmission enables point-to-point connections up to 300 meters, while IR, RS-232, USB 2.0, and Ethernet can be carried alongside the AV signal, providing a complete infrastructure over a single connection. The integrated USB hub enables both point-to-point KVM extension and USB routing between multiple endpoints, making the system suitable for control rooms, multi-user environments, and interactive installations.
In combination with the SDV-CS8 IP Master Controller, required for advanced control, the transceiver can be integrated into distributed AV matrix switchers, multi-view configurations, and video walls, without the need for dedicated processors. EDID and HDCP management ensures compatibility with any source or display, while basic configuration can be performed via the front OSD buttons.
Main features
HDMI 2.0 and DVI 1.0 compatible
Compliant with HDCP 2.2 and HDCP 1.x
1 HDMI input and 1 DisplayPort input
1 HDMI output
1 stereo analog audio input and output
2 USB 2.0 Type-A ports and 1 USB 2.0 Mini-B port
Supports simultaneous bidirectional AV extension
IP-routable with minimal latency
Ultra-light, lossless compression for most content
Extension up to 30 km (maximum distance depends on the SFP+ module used and fiber type)
Supports independent A/V switching with minimal latency, video wall generation, and multiview (requires CYP SDV-CS8)
Pass-through of 10/12-bit HDR sources
Pass-through of LPCM (up to 8 channels), Bitstream, and HD Bitstream audio formats from HDMI or DP sources
Extension, insertion, and Stereo analog audio extraction (input/extraction requires CYP SDV-CS8)
Bidirectional extension of AV, IR, RS-232, USB 2.0, and Ethernet
Supports special Simultaneous Mode for USB extension, with a host connected to a transceiver that can connect up to 7 transceivers with USB devices (storage drives are not supported; requires CYP SDV-CS8)
Basic configuration via front-panel buttons with OSD
User benefits
Reduced latency and increased stability thanks to AV transmission over a 10G network with ultra-light compression
Greater operational flexibility thanks to the bidirectional nature of the transceiver
Ability to create distributed AV matrixes, Video walls, and multiview configurations without dedicated processors
Simplified integration of USB and KVM peripherals thanks to the USB hub that can be routed between multiple endpoints
Guaranteed compatibility with any source or display thanks to integrated EDID and HDCP management
Fiber transmission up to 30 km
Instant configuration via OSD and front buttons, with advanced control options via SDV-CS8 CYP
Areas of use
10G SDVoE-based AV over IP infrastructures
Control rooms and multi-user environments with USB and KVM routing
Large installations requiring video walls and multiviews
Live events, conference centers, and exhibition spaces with flexible AV distribution
Corporate and industrial applications requiring long-distance AV extension over fiber
Modular AV systems requiring scalability and dynamic signal routing

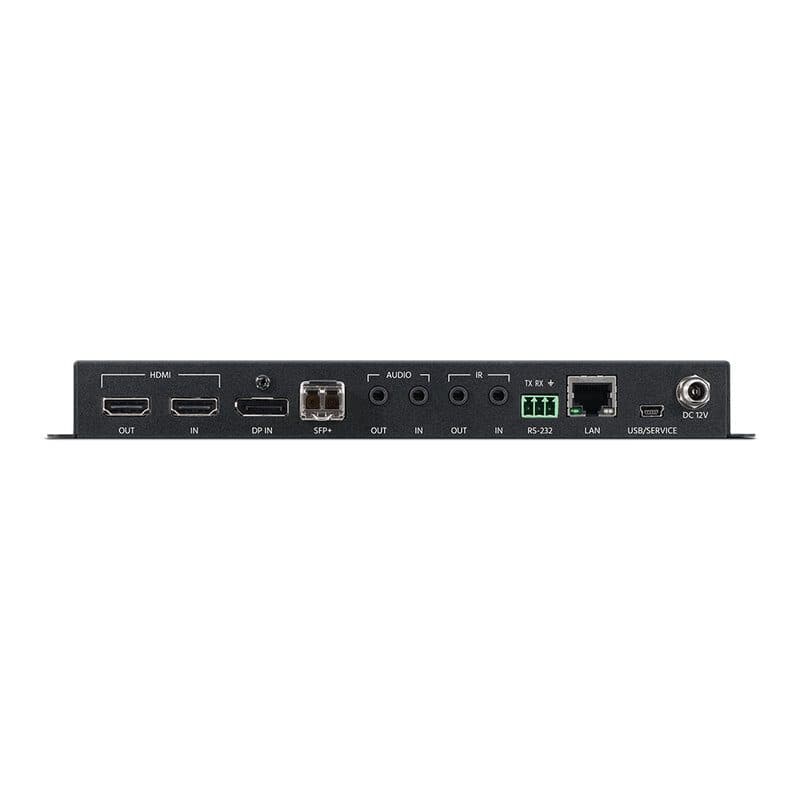

Technical characteristics
- Inputs:
- 1 × HDMI (1 × HDMI uncompressed AV and data)
- 1 × DisplayPort (1 × uncompressed AV)
- 1 × SFP+ (shared simultaneous port - SDVoE fiber LC/PC-LC/PC Duplex MM OM3)
- 1 × 3.5 mm stereo mini-jack [1 × analogue stereo (L/R)]
- 1 × 3.5 mm stereo mini-jack (1 × infra red receiver)
- 1 × Phoenix (3-pin) (1 × RS-232)
- 1 × RJ45 (1 × LAN serving)
- 1 × USB Mini B (1 × USB host and service port propriety data)
- Outputs:
- 1 × HDMI (1 × HDMI uncompressed AV and data)
- 1 × SFP+ (shared simultaneous port - SDVoE fiber LC/PC-LC/PC Duplex MM OM3)
- 1 × 3.5 mm stereo mini-jack [1 × analogue stereo (L/R)]
- 1 × 3.5 mm stereo mini-jack (1 × infra red emitter)
- PSU: 12 V / 3 A
- Dimensions (W × H × D): 23.15 × 2.5 × 10.8 cm
- Weight: 0.7 kg
