24 VDC rack power supply, 8 outputs with WebGUI - CYP CYP-RAX-PSU-24V

Power supply system designed to distribute 24 VDC power to multiple devices installed within RAX modular racks. It features 8 independent DC outputs and 2 outputs dedicated to RAX-FAN modules, allowing it to power both AV devices and fans installed in the rack. The unit integrates a Web GUI, as well as RS-232 and Telnet control, allowing remote management of each individual output. Connected fans can be set to a fixed speed or via three-level thermostatic control. Thanks to the internal scheduler with backup battery, you can program on/off times and recurring events, maintaining the configuration even in the event of a power outage. An advanced information panel also allows you to monitor voltages, currents, temperatures, and fan status, while the dedicated PC software allows you to view detailed reports on the power usage and consumption of connected devices. Main features 8 independent 24 VDC outputs to power rack-mounted devices 2 dedicated outputs for RAX-FAN modules with speed control (12 V) Remote control via Web GUI, RS-232, and Telnet Integrated scheduler with battery backup for scheduled events Real-time monitoring of voltages, currents, temperatures, and fan status Fan speed adjustable in fixed or three-level thermostatic mode Dedicated PC software for consumption analysis and energy reporting Compact aluminum enclosure with black finish

Technical characteristics

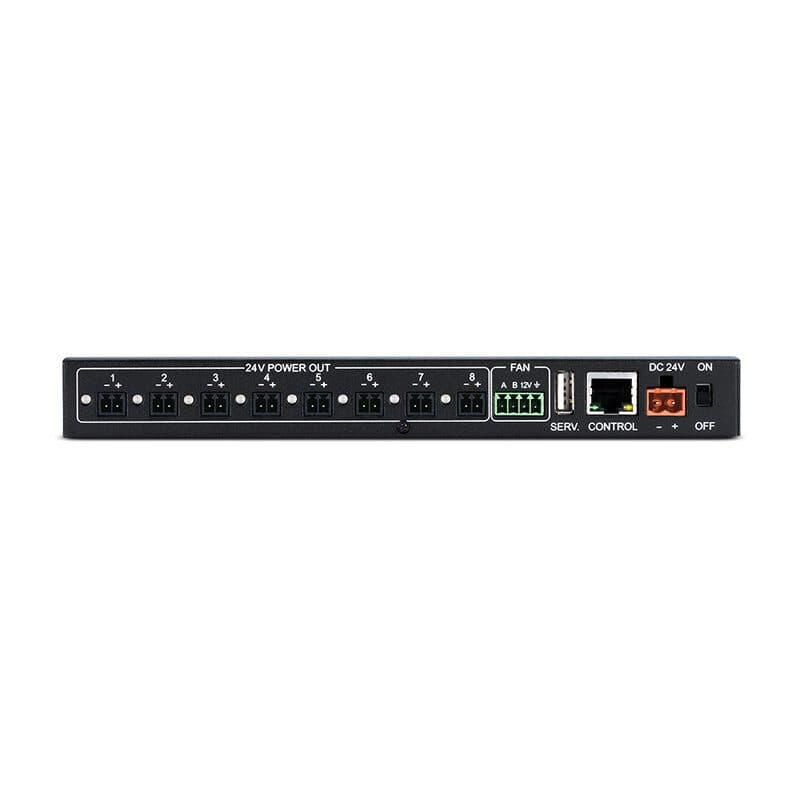

• Output ports: 8 x 24 V_DC (2‑pin terminal block), 2 x 12 V_DC (4‑pin terminal block)
• Control I/O: 1 x RS‑232 (3.5 mm), 1 x IP control (RJ45)
• Power supply: 24 V / 6.25 A (CE / FCC / UL certified)
• Power consumption: 150 W
• Chassis material: aluminum
• Chassis colour: black
• Field firmware update: PC Update, WebGUI
• Dimensions (W x H x D): 21.15 x 2.4 x 11.2 cm (case only)
• Dimensions (W x H x D): 21.15 x 2.5 x 11.7 cm (all inclusive)
• Weight: 285 g
