PTZ 4K camera AI tracking dual streaming RS-422 IP - DATAVIDEO PTC-285 DTV-7000-3085

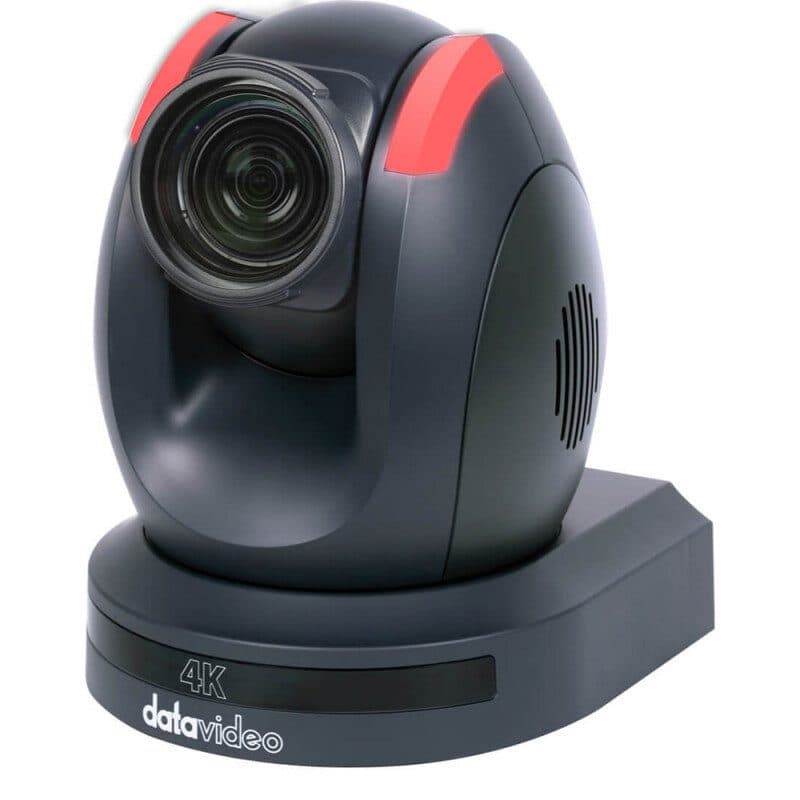

PTC-285 is a professional PTZ camera with AI tracking characterized by a 4K 50/60p resolution to adapt to the most varied applications. This PTZ can be easily controlled via traditional RS-422 serial port or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP and finally adopting PTZ View Assist. It is an App that can control up to 4 cameras simultaneously via DVIP; you can intuitively configure and recall presets and adjust white balance, focus and iris. The App, for iOS and Android, is capable of decoding the live stream via RTSP, SRT . Easily monitor live streaming video of PTC-140, PTC-280, PTC-285 and PTC-300 models and set parameters promptly in one application.PTC-285 enables dual streaming output for A/V market applications, so you can easily stream to Facebook (RTMPS), YouTube and dvCloud. Direct access to AI tracking is enabled via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist). If you are filming multiple people, you can designate one person for AI tracking. Once connected to the PTZ, only the designated person will be tracked, avoiding interference such as desks, people moving back and forth, large objects, etc. The built-in PID algorithm can detect the movement speed of the identified object and automatically adjust the corresponding pan, tilt and zoom speeds of the camera so that the movement of the lens is smooth, avoiding common problems such as jerks or unexpected events. As for the optoelectronic compartement, this PTZ boasts a 1/2.8" CMOS sensor. We therefore find a 12x optical zoom (16x digital) associated with a particularly bright lens (f/1.8 – f/2.6) with an angle of view of 80° at the minimum focal length. The 4K video output interfaces are HDMI 2.0, RJ45 (PoE), 3G-SDI up to 1080p 60/50 fps and there is also support for simultaneous 2160p 50/60 fps and 1080p 50/60 fps video output ( 3G-SDI). There is also a MIC in / line in input (switchable on the web UI). Finally, the PTC-285 supports PoE for easy installation. You only need to use a single CAT 6 cable to power the PTZ. The Tally lamp and dark blue color complete the features. Areas of use Video conferencing Distance learning University lectures Meetings in meeting rooms/council chambers Places of worship Broadcasting Medical, etc.

Technical characteristics

• Video format / resolution: 2160p 60 / 59.94 / 50 / 30 / 29.97 / 25 - 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 - 720p 60 / 59.94 / 50, *2160p 60 / 59.94 / 50 YUV 4:2:2
• Image sensor: 1/2.8" CMOS
• Effective pixels (approx.): 8.51 Mpixels
• S/N Ratio: ≥ 55 dB
• Min. illumination: 0.5 lux @ (F1.8, AGC ON)
• Electronic shutter: 1/30 s - 1/10,000 s
• Zoom ratio: 12x optical zoom, 16x digital zoom
• Gamma control: OFF / normal
• Iris control: auto / manual
• Digital noise reductions: 3D
• On-Screen Display (OSD): english / simplified chinese / traditional chinese
• White balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
• AGC / gain control: yes
• Mirror / flip Image: yes
• Focus mode: auto / manual
• Panning / Tilting range: Pan: 300° - Tilt: +130° to -15°
• Panning / Tilting speed: Pan: 0.876° / s - 43° / s - Tilt: 0.693° / s - 21.32° / s
• Preset: 255
• Focal Length: f = 4.4 mm - 52.8 mm, F1.8 - F2.6, 12x,
• Field of view (horizontal, wide): 80°
• Image compensation: back light compensation

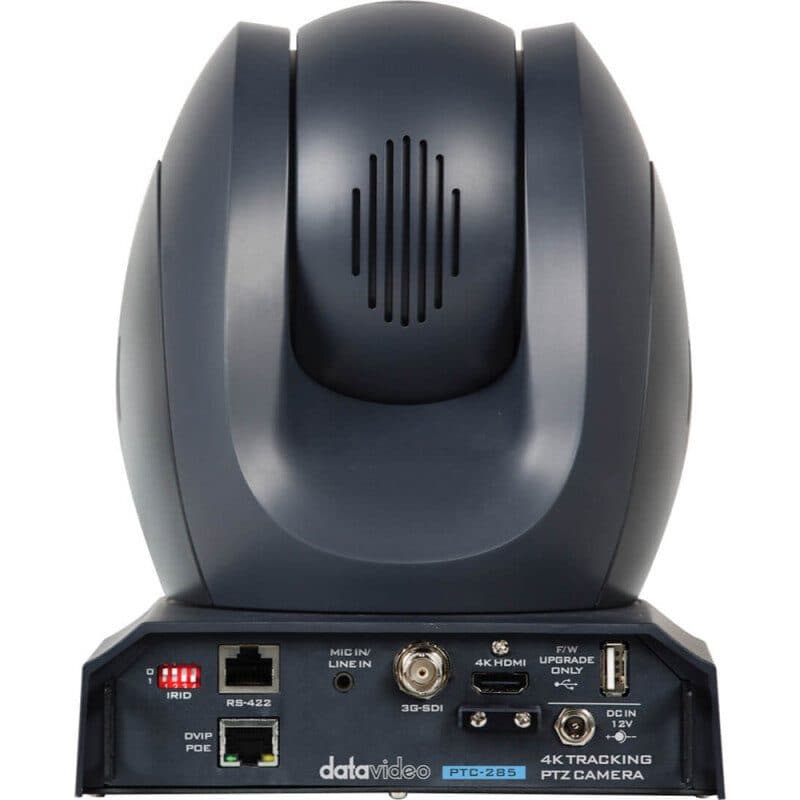

• Video output: 1 x HDMI 2.0 – 1 x 3G-SDI – 1 x 10/100/1000M RJ45 (PoE)
• Audio input: 1 x 3.5 mm (MIC IN / line IN) - switch from Web UI
• Tally LED: yes
• Control protocol: Pelco-D, Pelco-P, VISC A, VISCA over IP, DVIP
• Remote control interface: IR - Web UI - RS-422 - DVIP
• Video compression format: H.264 / H.265 / MJPEG
• Audio compression format: AAC
• Audio bitrate: 96 kbps, 128 kbps
• Streaming protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
• First stream supported resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
• Second stream supported resolution: 720 x 480, 640 x 360, 480 x 270, 320 x 240
• Video bitrate: 32 kbps - 50 Mbps (single stream)
• Video bitrate mode: VBR, CBR
• Encoding frame rate: 50 Hz: 1 - 50 fps - 60 Hz: 1 - 60 fps
• POE: IEEE 802.3at
• Firmwae update: via Web UI or USB 2.0
• IR control: yes
• Camera control unit: RMC-180 series / RMC-300C / PTZ View Assist APP
• Tripod mount: 1 / 4-20 UNC
• Optional accessories: WM-1 / WM-10 / WM-11
• Color: Dark Blue
• Operating temp. range: 0, 40° C
• Power: 12 V_DC / 21 W
• Dimension (L x W x H): 17.3 x 21.9 x 18.9 cm
• Weight: 2.6 kg
• What's in the box:
  • 1 x PTC-285 product
  • 1 x RMC-1 IR remote controller
  • 1 x ceiling mount bracket-A
  • 1 x ceiling mount bracket -B
  • 6 x ceiling mount bracket screw M3 x 4 mm
  • 1 x 12 V_DC power adaptor
  • 1 x A tightrope
