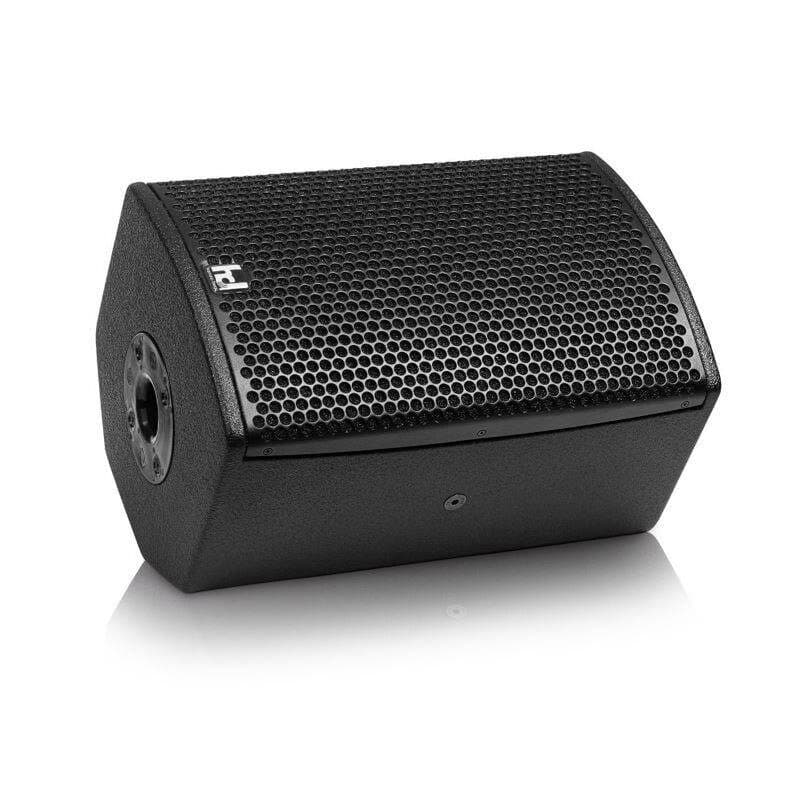

Full-range loudspeaker 90°x60° MP10N - HARMONIC DESIGN HDE-60069

hd MP10N is a multipurpose full-range loudspeaker specifically designed and optimized for fixed installations and mobile applications. The innovative design allows a true linear response, not only in terms of flat frequency response, but also in the dynamic range and all other acoustic parameters. Noteworthy are the fast reproduction of transients, the tonal balance and the clarity of details. It is equipped with a powerful woofer with a neodymium magnet capable of handling 600 WRMS and 2400 W peak. The new neodymium high-frequency driver is coupled with a large rotatable horn; the particularly low cut-off frequency ensures high directivity and controlled dispersion in the vocal range. The horn adopted on this model allows horizontal and vertical directivity characteristics of 90° x 60°. The special crossover guarantees outstanding performances. The acoustic and mechanical design of this loudspeaker ensures coherent reproduction even without the use of an additional DSP; it can therefore be easily connected to any standard power amplifier. The SuperVented cabinet design combined with a highly shock-resistant woofer voice coil and neodymium magnet geometry assembly make the hd MP10N a full-range speaker that integrates seamlessly into the Harmonic Design system philosophy by adding multiple hd Sub-Series or hd P-Series subwoofers as needed or by using up to four hd MPs on a single amplifier channel. The rounded, asymmetrical cabinet, to allow 35 and 45° monitoring angles, is made of sturdy plywood and features a weather-resistant polyurethane coating. The integrated 35 mm tripod adapter allows it to be used as a front-mounted system on a pole. An ergonomic carrying handle is positioned on top. Three speakON connectors, two on the back and one on the bottom, ensure invisible and kink-free wiring. A powder-coated steel grille with acoustic foam inside protects the speakers. Numerous accessories and twelve integrated M8 mounting points offer maximum flexibility for daily changing sound reinforcement tasks. In addition to the extremely robust black polyurethane paint finish, other RAL colors are also available. Main features Passive 2-way loudspeaker with 1 x 10″ LF / 1 x 1.4″ HF Coverage 90° x 60°, rotatable horn Undistorted sound up to 133 dB Multifunctional enclosure Operation with any amplifier Two monitor angles 35 and 45° Weight 15 kg

Technical characteristics

• Principle: bass-reflex system with a symmetrical horn
• Transducers: 1 x 10″ LF neodymium, 1 x 1.4″ HF neodymium
• Crossover: 900 Hz, 2-way passive
• Power handling: 600 W_RMS / 2400 W peak
• Frequency range: 60 Hz – 20 kHz
• Sensitivity: 100 dB/W/m
• Max SPL: 133 dB
• Nominal dispersion angle: 90° x 60° (H x V), rotatable
• Nominal impedance: 8 ohm
• Connections: 3 x speakON NL4
• Enclosure: 15 mm multiplex birch wood with polyurea plastic coating in black
• Additional features: 35 and 45° monitor angles, ergonomic transport handle, 12 x M8 inlet threads, recessed connection panel with 2 x NL4 and 1 x NL4 on the underside, 35 mm flange, steel grille with acoustic foam
• Dimensions: 300 x 520 x 300 mm
• Weight: 15 kg
• Options: transport protection cover, bracket, RAL color, wall mount, weather protection, mounting adapter
