Curved PA array loudspeaker MOJOcurveXL 128dB 100°x70° - AUDIOPHONY HIT-H11390

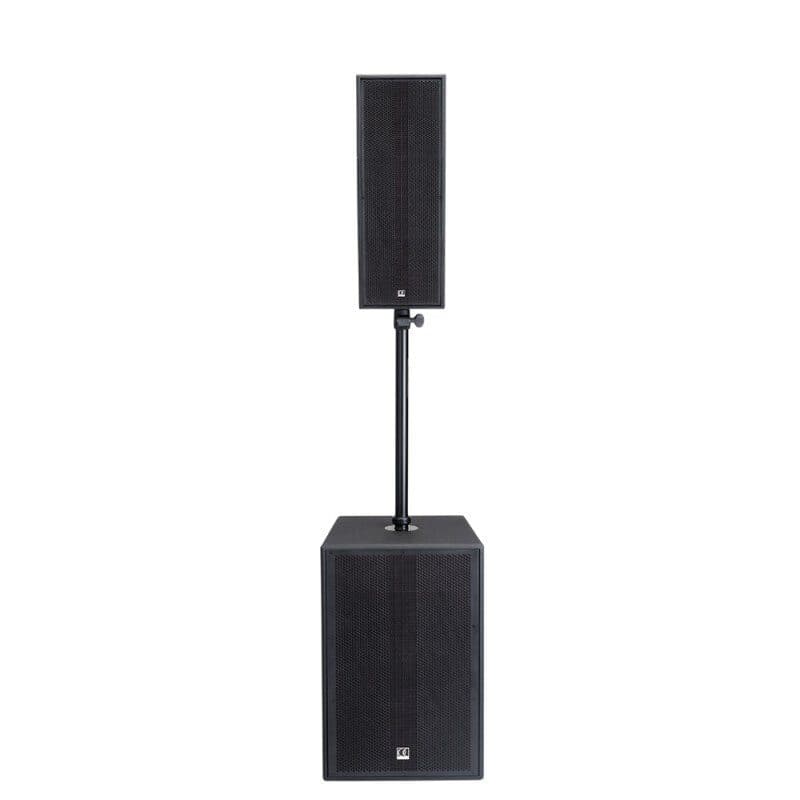

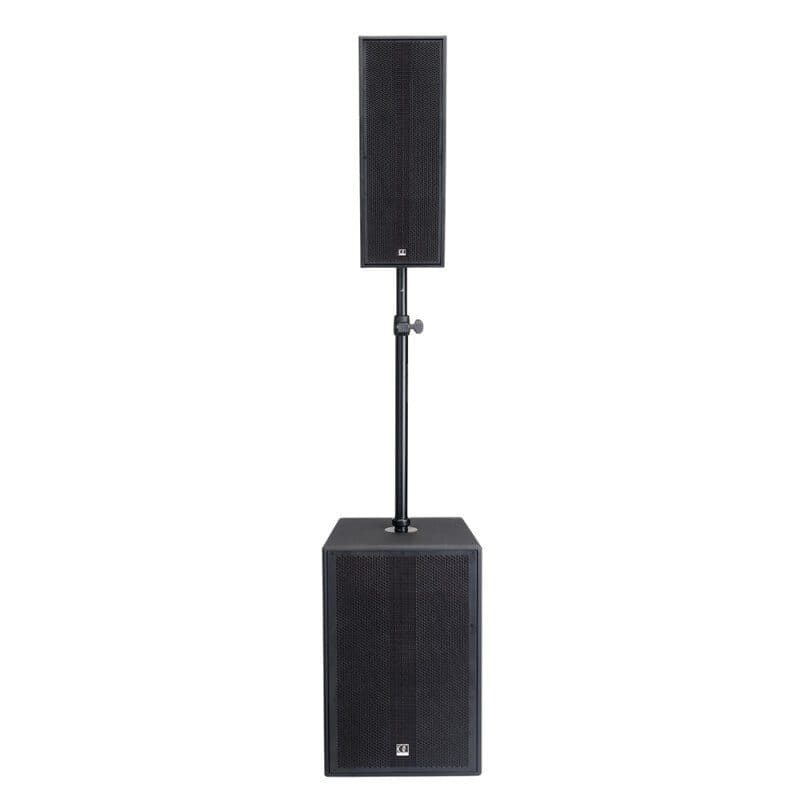

MOJOcurveXL is a versatile PA active loudspeaker for music, vocals, DJ sets and small live events. This new system uses a curved array type architecture based on three angled modules which guarantee a controlled and optimized dispersion of 100° x 70° (H x V). Each satellite features 3 x 8" mid-woofers and 12 x 1" tweeters and is mounted on a pneumatic telescopic bar which engages on the active subwoofer cabinet and also includes the connectors.The deepest bass is ensured by a powerful 15" long-excursion driver in bass-reflex, while the Class-D amplifier, equipped with all the necessary protections, is capable of delivering a power of max. 1400 WRMS for the LF section and 800 W @ 4 ohm for the array of the HF section.The sound pressure reaches 128 dBSPL at a distance of 1 m and the frequency response is 35 to 18,000 Hz. The electronic section, which allows you to directly connect line or microphone sources, is equipped with a 4-input mixer with Bluetooth TWS to connect your source even wirelessly and a powerful DSP with presets. Featuring TWS (True Wireless Stereo) technology, the internal Bluetooth module will transmit the audio signal to a second MOJO to operate in stereo.

Technical characteristics

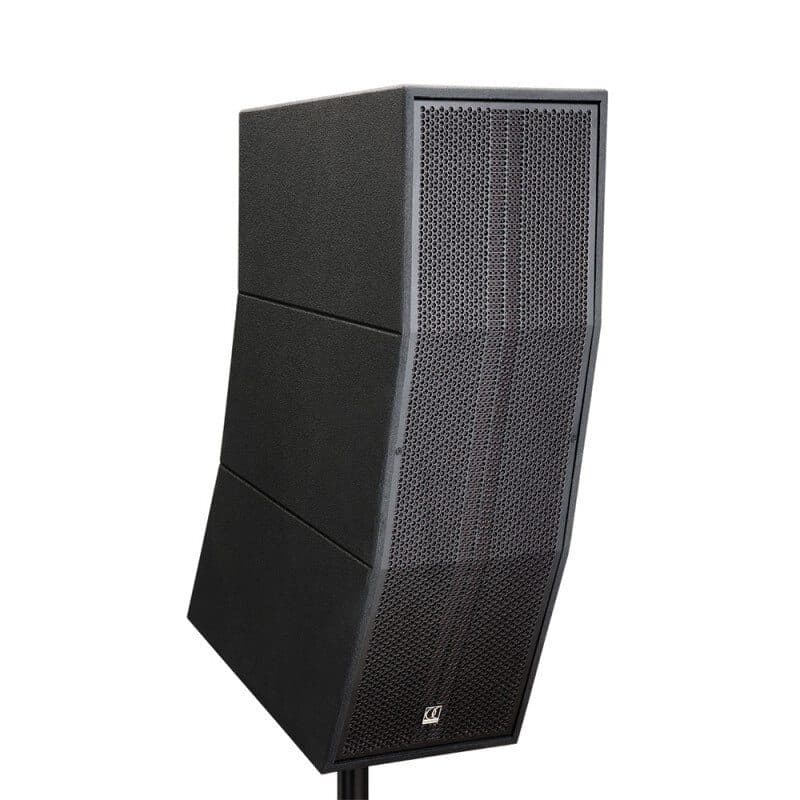

Satellite

• Power: 400 W_RMS - 800 W max.
• Nominal impedance: 4 ohm
• Woofer: 3 x 8" neodymium
• Tweeter: 12 x 1"
• Dispersion: 100° x 70° (H x V) (-10 dB)
• Dimensions: 255 x 695 x 400 mm
• Net weight: 11.5 kg

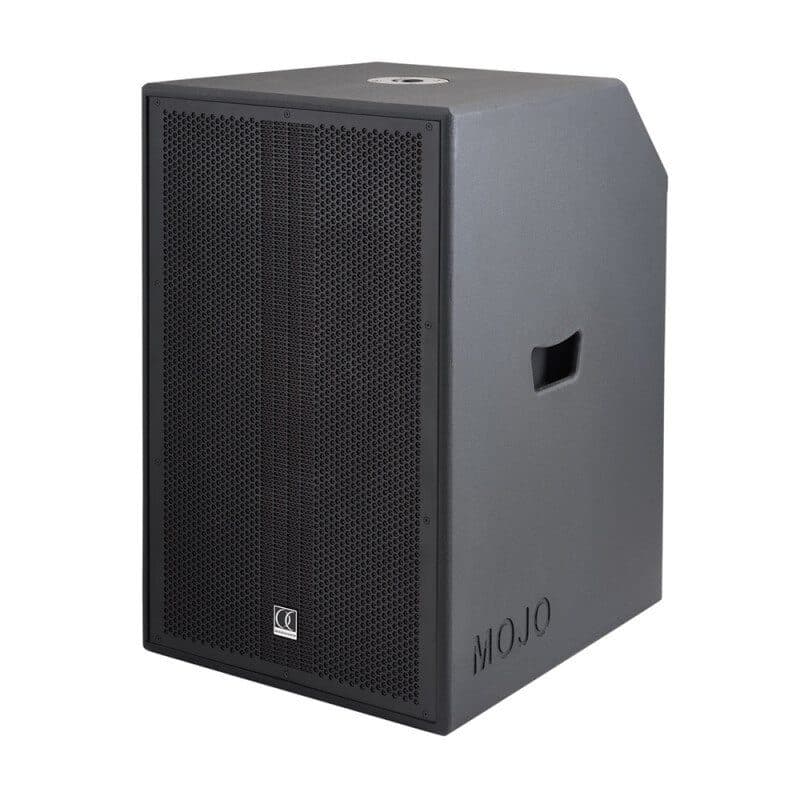

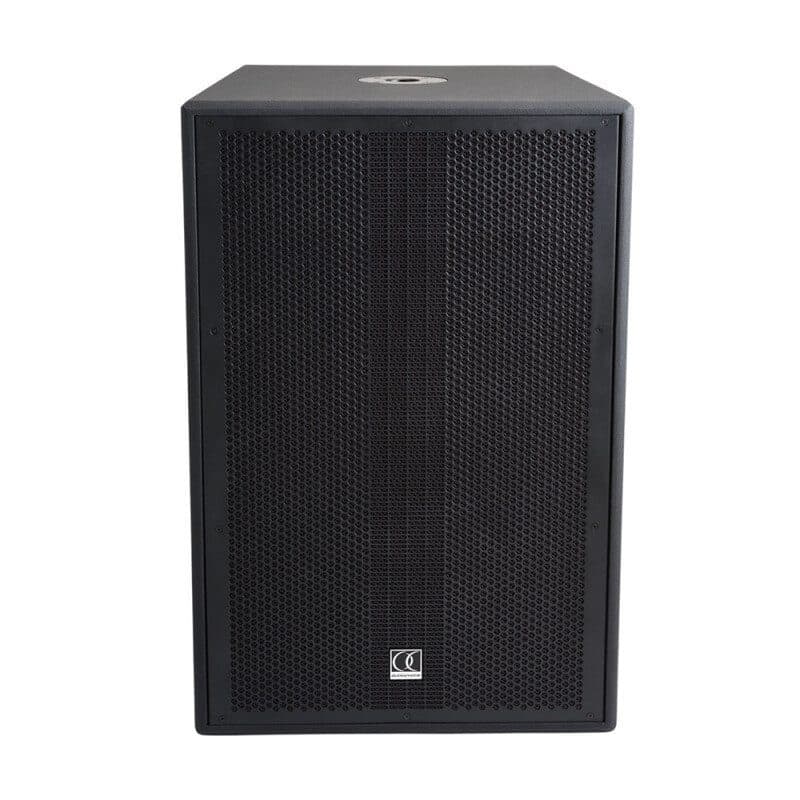

Subwoofer

• Power: 700 W_RMS - 1400 W max.
• Nominal impedance: 4 ohm
• Woofer: 1 x 15"
• Dimensions: 483 x 725 x 585 mm
• Net weight: 36.5 kg

Satellite + subwoofer

• Frequency response: 35 - 18,000 Hz
• SPL max. (@ 1 m): 128 dB

Amplification

• Low stage: 1 x 700 W_RMS / 1400 W max. at 4 ohm
• Mid/high stage: 1 x 400 W RMS / 800 W max at 4 ohm
• Level: level adjustment on each channel + master
• Sub: adjustment of the level of the box

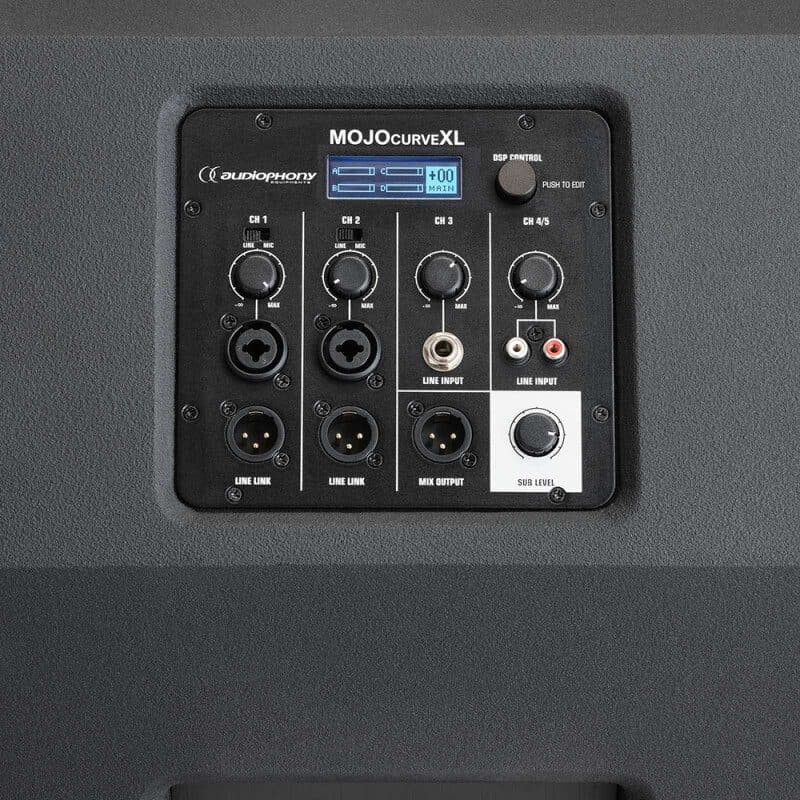

Inputs

• CH1: 1 x XLR Combo / line jack / MIC
• CH2: 1 x XLR / line jack / MIC Combo
• CH3: 1 x line jack
• CH4/5: 1 x RCA L/R line + Bluetooth input

Input impedances

• MIC 1/2: balanced 40 kohm
• Line 1/2: symmetrical 10 kohm
• Line 3: symmetrical 20 kohm
• Line 4/5: asymmetrical 5 kohm

Outputs

• 1 x insert on top of the satellite box
• 1 x XLR MIX OUT balanced for output to another system
• 2 x XLR LINE OUT symmetrical for repique CH1 and 2

DSP

• 24 bit (1 in 2 out)
• EQ / presets / low cut / delay / Bluetooth TWS
