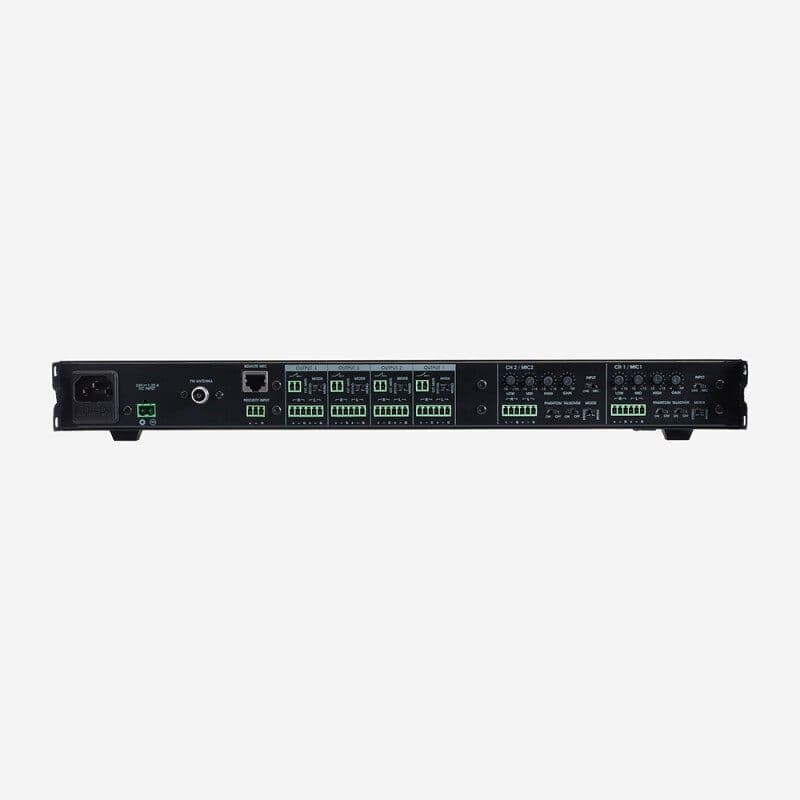

Mixer-zoner 4 zone with USB/BT player and 2 MIC/line - AUDIOPHONY PA PMX34

The PMX34 mixer-zoner is designed for professional installation and offers a media player, 2 mono or stereo MIC / line inputs, tone control on each input and 4 outputs. Each input can be sent independently to each of the 4 zones, or to all 4 at the same time, in order to offer maximum versatility.  Main features Inputs: 2 balanced MIC / line in, Euroblocks connectors, mono or stereo 1 x USB / SC / BT / tuner media player  /recorder 4 mono balanced outputs on Euroblock connectors Priority microphone Phantom power: inputs 1 and 2 Gain and tone control (3 bands) on channels 1 and 2 Gain adjustment on all inputs RJ45 connector for MIC-DESK4 micro control desk Mute contact on outputs 1 to 4 Assignment of zones 1 to 4 on each input channel Signal and clip display on each input channel Output level display per zone via VU meter 3 LEDs 2-band front-panel equalization for outputs 1 to 4 Remote control supplied

Technical characteristics

• Power and output impedance: balanced outputs, OUTPUT 1 to 4, 0 dB / 600 ohm
• Input sensitivities:
  • MIC channels - 50 dB to -16 dB / 20 kohm
  • Line channels: -20 dB to +4 dB / 20 kohm
• T.H.D: less than 0.1%
• Frequency response: 20 Hz - 20 kHz ±1 dB
• Equalization of inputs 1 and 2:
  • HIGH (12 kHz): ±15 dB
  • MID (2.5 kHz): ±15 dB
  • LOW (80 Hz): ±15 dB
• Output equalization:
  • HIGH (10 kHz): ±15 dB
  • LOW (100 Hz): ±15 dB
• Crosstalk: more than 70 dB
• Phantom power supply: ±15 V_DC (channels 1 and 2)
• Rescue power supply: +24 V_DC / 350mA
• Power supply: 220 - 240 V_AC 50/60 Hz or +24 V_DC
• Power consumption: 20 W
• Dimensions: 48.2 x 4.4 x 32 cm
• Weight: 3.5 kg
