Architectural water effect LED fixture 90W 7800K DMX - Contest HIT-H11554

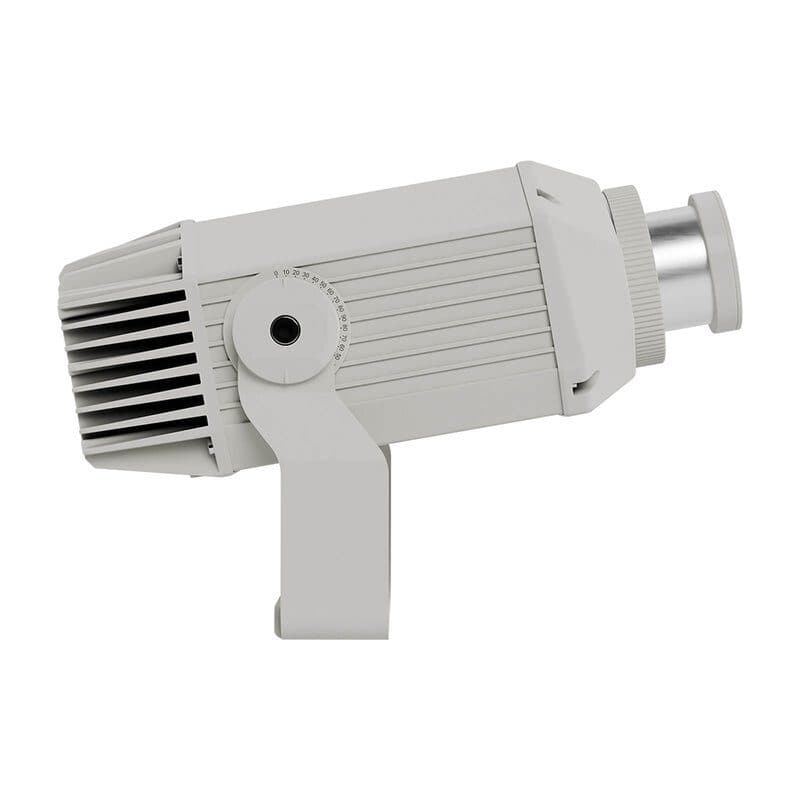

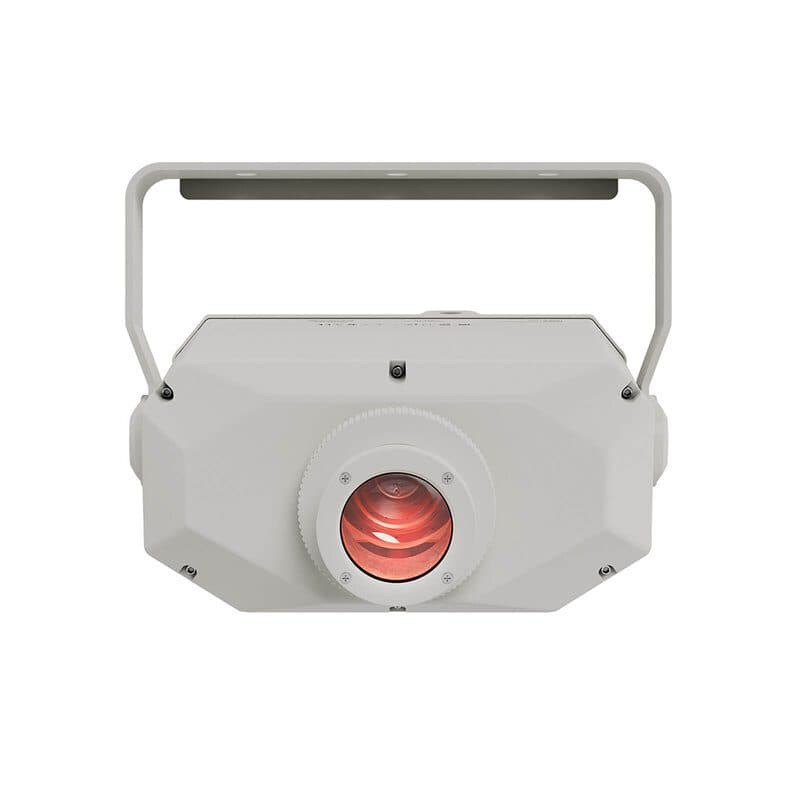

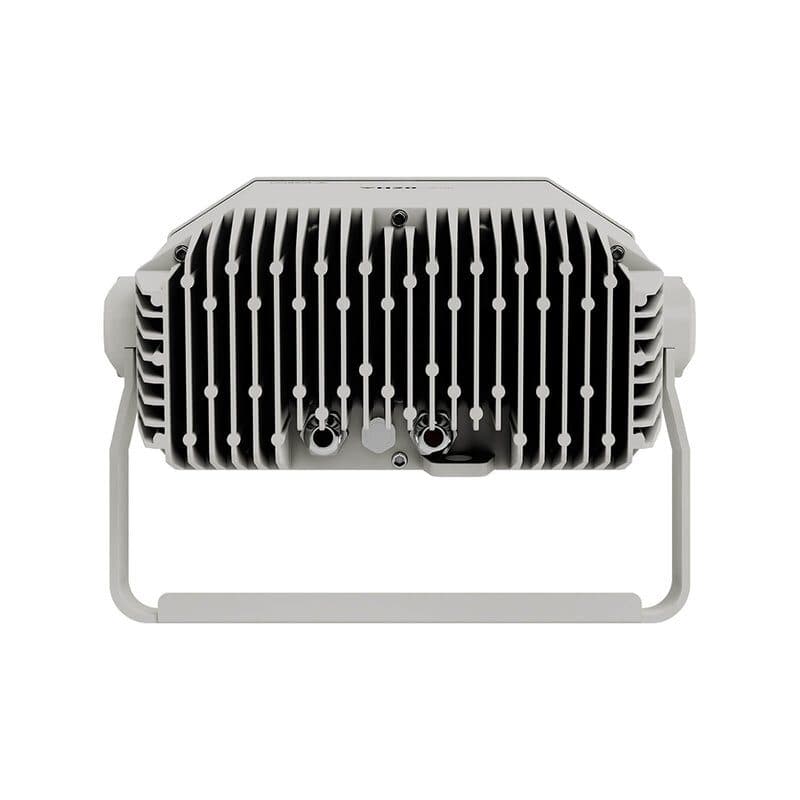

Contest VH2O-90 is an architectural spotlight designed to recreate the visual appearance of moving water. Simulated light reflections produce dynamic animations and an engaging atmosphere for architectural environments and scenic settings. Its 90 W LED with a 7800 K colour temperature provides intense brightness for architectural applications. It can operate as the centrepiece of a show or alongside other products.

One colour wheel and two effect wheels create different lighting combinations. Seven effect colours are available: blue, red, green, yellow, white, orange and magenta. Adjusting the lens adds further animations and changes the visual result. Hybrid IN/OUT connections use a single cable for DMX and power, with IP67 connectors, supporting synchronised effects and long-distance links with quick setup.

Control is available through an external box; VRDM control allows settings through RDM, while compatibility with RDM consoles applies to certain settings. The DMX protocol uses 5 channels. The spotlight features convection cooling and a cast aluminium body with RAL9002 white/grey epoxy paint. IP66 protection resists dust and water splashes from all directions. IK07 impact resistance protects against a 2-joule mechanical shock corresponding to a 500 g object falling from 40 cm. The diaphragm depressurisation valve is sealed. The power supply is 110 - 240 VAC, 50/60 Hz; the technical specifications list a 100 - 240 V AC, 50/60 Hz power input. Consumption is 72 W.

Specifications:

• Model: VH2O-90
• Type: architectural water-effect spotlight
• Light source: 1 x 90 W LED
• Colour temperature: 7800 K
• Wheels: 1 colour wheel + 2 effect wheels
• Effect colours: 7, blue, red, green, yellow, white, orange and magenta
• Effects: simulated reflections and lens-based animations
• Power consumption: 72 W
• Connections: DMX/power via hybrid IN/OUT cables
• Connectors: IP67
• Protection rating: IP66
• Resistance: dust and water splashes from all directions
• Control: external box
• VRDM control: settings via RDM
• Compatibility: RDM consoles on certain settings
• Protocol: DMX, RDM
• DMX channels: 5
• Cooling: convection
• Construction: cast aluminium
• Finish: RAL9002 white/grey epoxy paint
• Impact resistance: IK07
• Mechanical shock: 2 joules
• Reference impact: 500 g object falling from 40 cm
• Valve: sealed diaphragm depressurisation valve
• Power supply: 110 - 240 VAC, 50/60 Hz
• Dimensions: 300 x 209 (H) x 286 mm
• Weight: 7 kg
• Power input: 100 - 240 V AC, 50/60 Hz
• Energy label: no
• Colour: grey
• Display: no
• IP rating in technical specifications: outdoor
• Programmable: no
• Upgradable software: no
• Lamp socket: no
• Light colour: cold white
• Colour mixing: no
• Maximum refresh rate: - kHz
